3M Products & Supplies

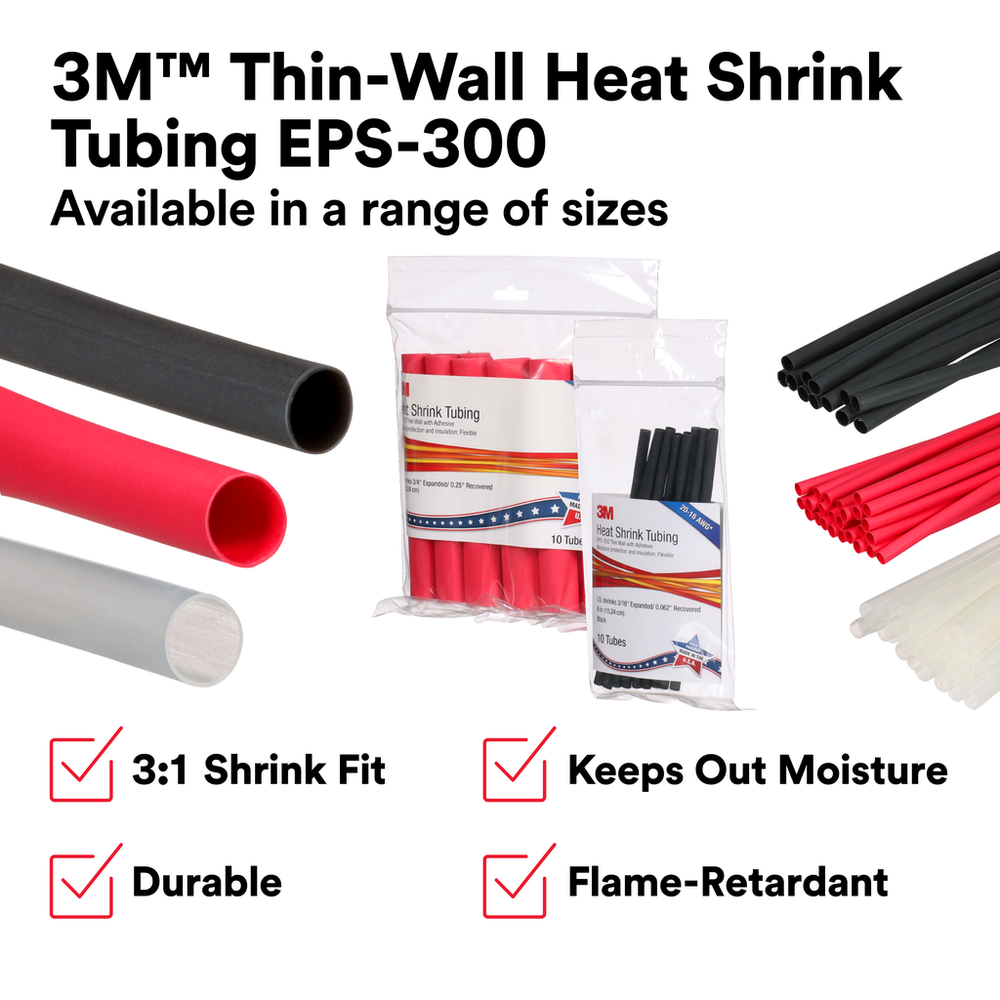

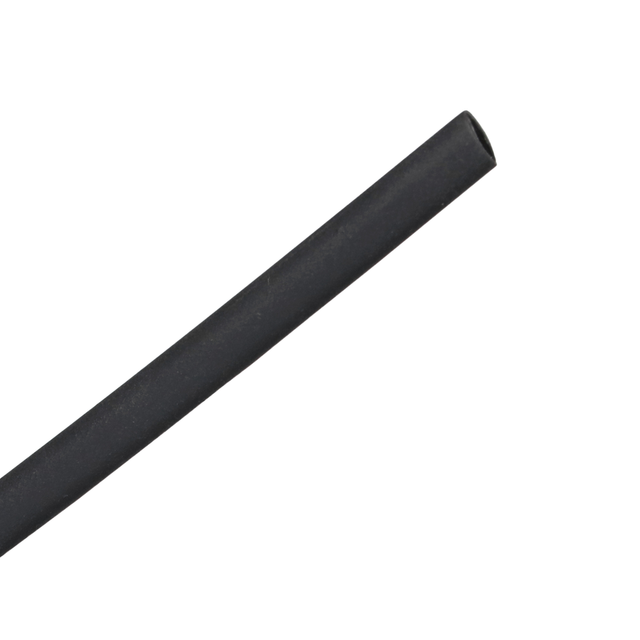

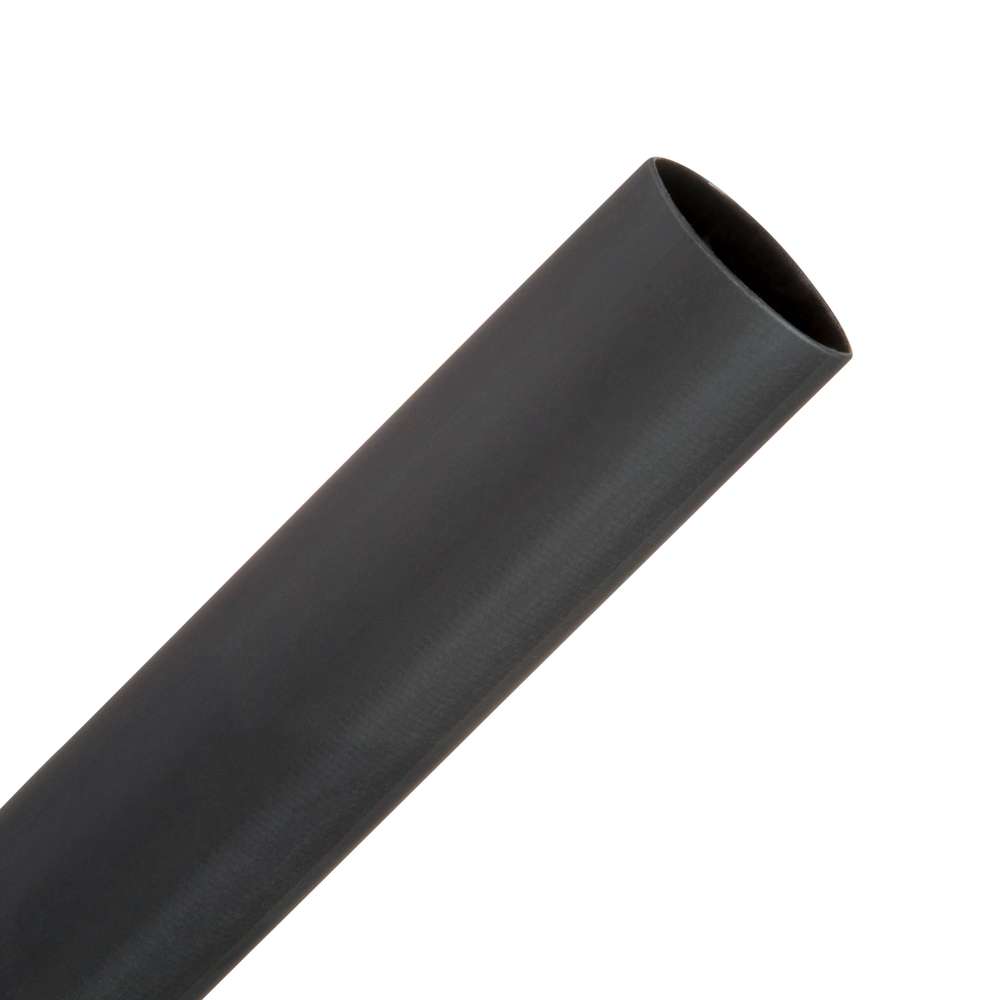

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-48"-Black-5 Pcs, 48 in length sticks, 5 pieces/case - 7000133585

Sold As: 5-Pack
SKU: 7000133585
MPN: 7000133585
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597330
3M ID: 80611473945
5 Digit UPC: 59733
$246.00 ($49.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Flame-retardant tubing is rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)230.0
Overall Length (Imperial) UOMin
MaterialPolyolefin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Fahrenheit)-67 °F to 230 °F
UL File NumberE-157227
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Celsius)-55 °C to 110 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)25.4
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)8.13
Flame RetardantYes
Tubing TypeDual Wall (Adhesive Lined)
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Shrink Ratio3:1
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial)48.0
Elongation UOMdB
Inner Diameter After Shrink (Imperial)0.32
Units per Case5.0
Product ColorBlack
Inner Diameter Before Shrink (Imperial)1.0
Adhesive MaterialSilicone
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
