3M Products & Supplies

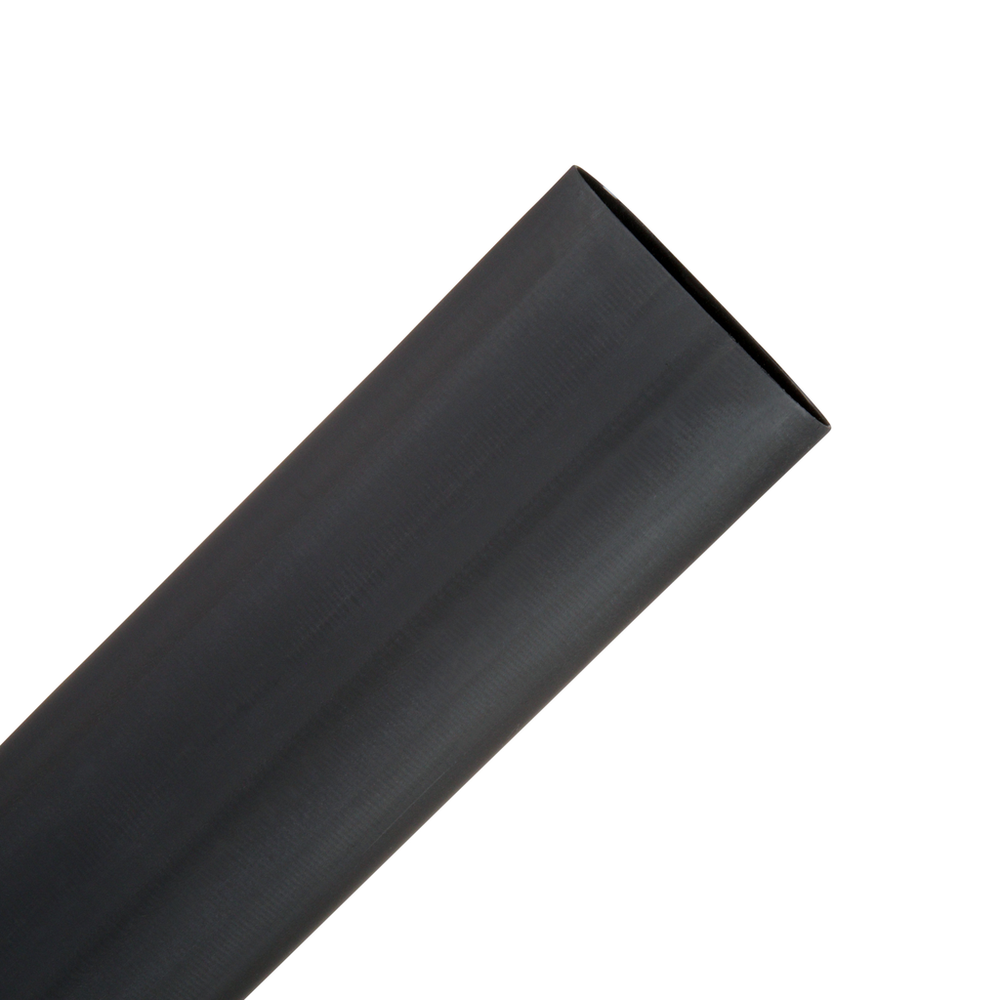

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1 1/2-48"-Black-5 Pcs, 48 in length sticks, 5 pieces/case - 7000133586

Sold As: 5-Pack
SKU: 7000133586
MPN: 7000133586
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597347
3M ID: 80611473952
5 Digit UPC: 59734
$349.38 ($69.88 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Product ColorBlack
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to 110 °C
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.1.5
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)48.0
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)12.95
Shrink Ratio3:1
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Maximum Operating Temperature (Celsius)150.0
Maximum Operating Temperature (Fahrenheit)300.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-157227
Non-CorrosiveYes
Adhesive MaterialSilicone
Inner Diameter After Shrink (Imperial)0.51
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric)38.1
Tubing TypeDual Wall (Adhesive Lined)
Units per Case5.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.5
MaterialPolyolefin
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
