3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1 1/2-48"-Black-24 Pcs, 48 in length sticks, 24 pieces/case - 7100054618

Sold As: 24-Pack
SKU: 7100054618
MPN: 7100054618
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599235
3M ID: 80611601842
5 Digit UPC: 59923
$1,081.53 ($45.06 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Tubing TypeDual Wall (Adhesive Lined)
Maximum Operating Temperature (Fahrenheit) UOMDegree

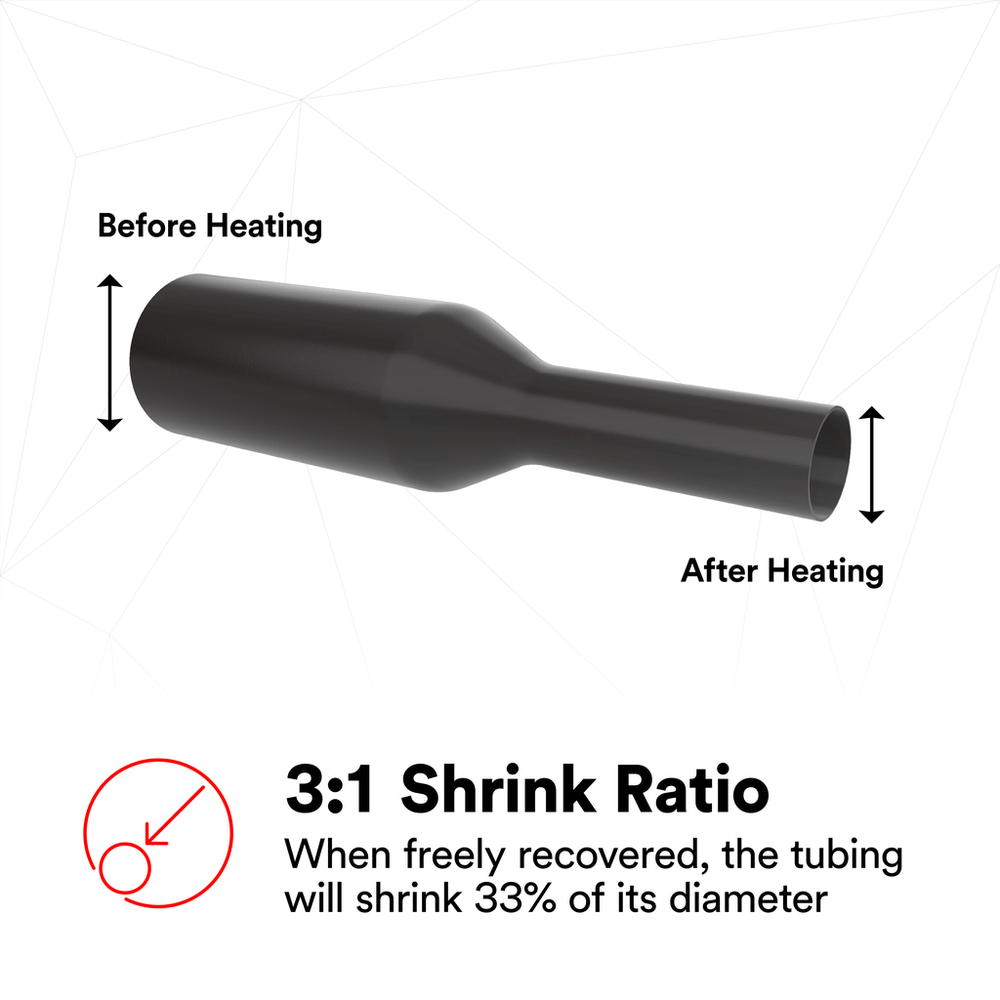

Shrink Ratio3:1
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
MaterialPolyolefin
Minimum Expanded Tubing I. D.1.5
Flame RetardantYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOMdB
Overall Length (Imperial) UOMin
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Imperial)0.51
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Metric)38.1
Adhesive MaterialSilicone
Inner Diameter Before Shrink (Imperial)1.5
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric)12.95
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 °C to 110 °C
Units per Case24.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
