3M Products & Supplies

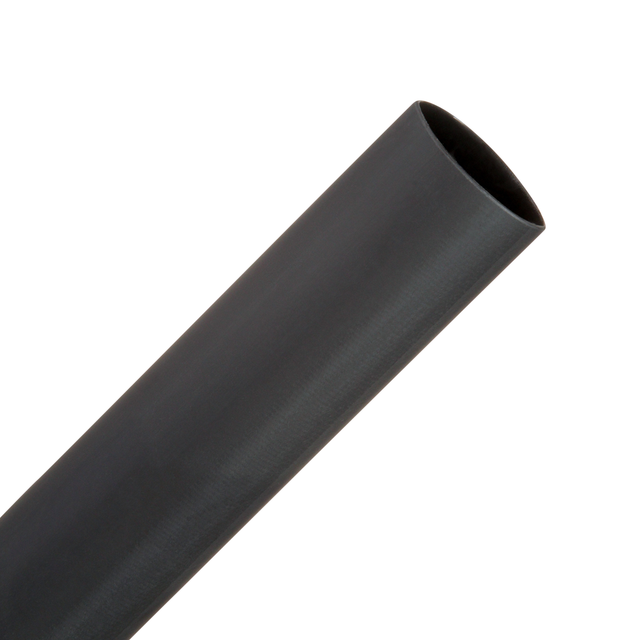

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-48"-Black-24 Pcs, 48 in length sticks, 24 pieces/case - 7000133618

Sold As: 24-Pack
SKU: 7000133618
MPN: 7000133618
For an accurate lead time please contact us
UPC: 10051128599225
3M ID: 80611601834
5 Digit UPC: 59922
$415.04 ($17.29 / Count)
Hurry up! Current stock:

Product Description

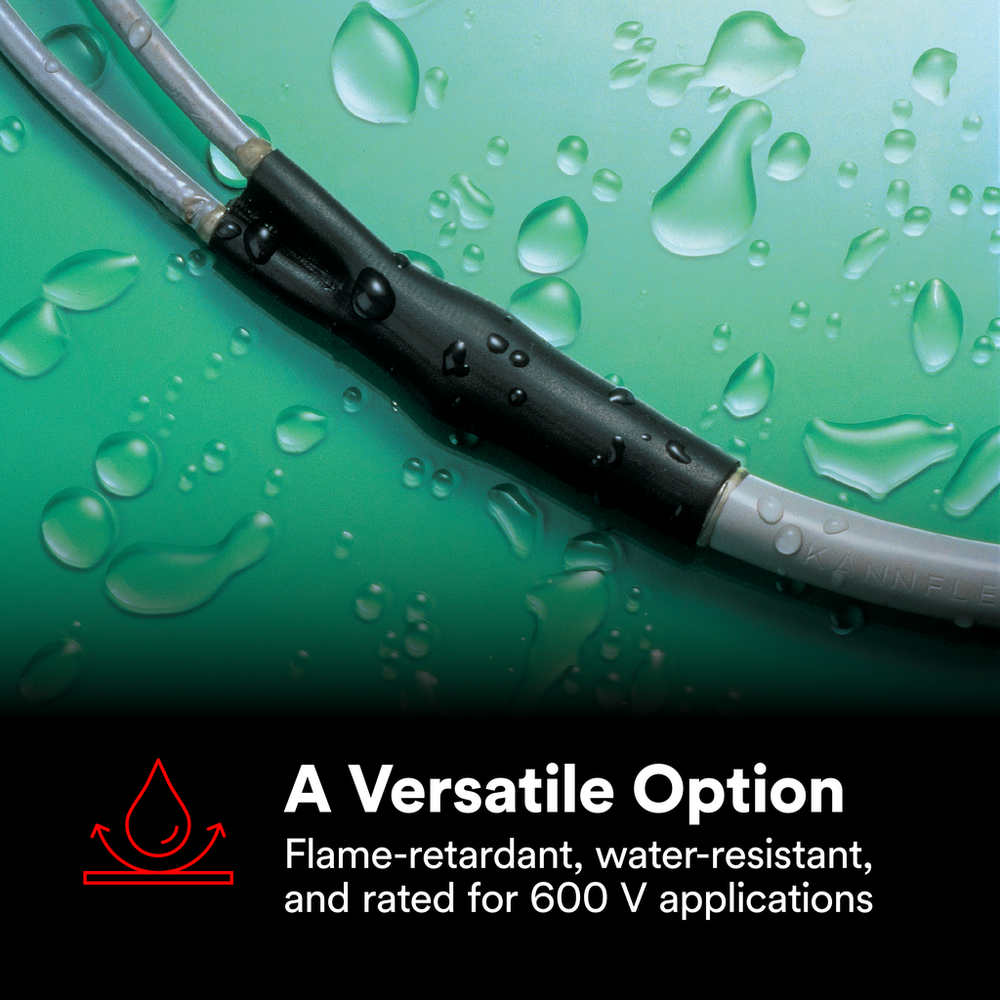

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States

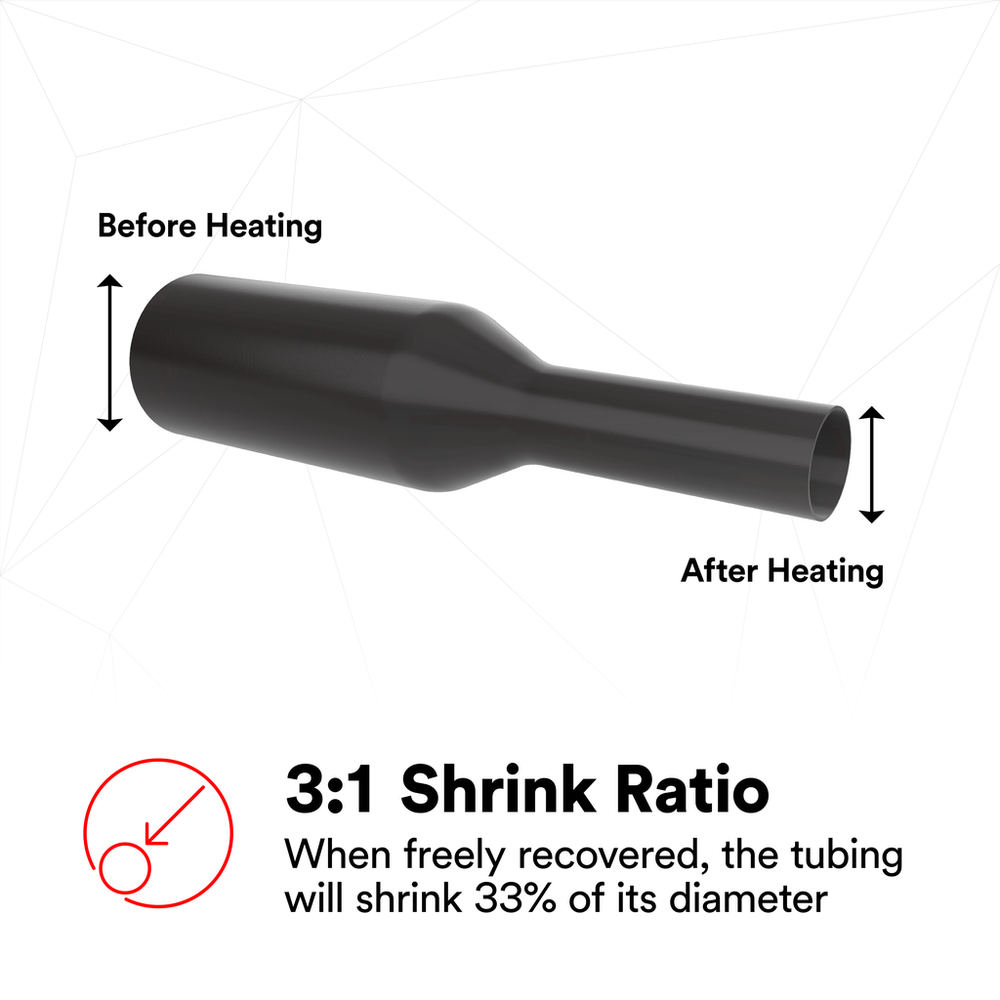

Shrink Ratio3:1
Overall Length (Imperial)48.0
Inner Diameter After Shrink (Metric)8.13
Inner Diameter Before Shrink (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.1.0
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Imperial)0.32
Inner Diameter Before Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial) UOMin
Product ColorBlack
Units per Case24.0
Non-CorrosiveYes
Operating Temperature (Celsius)-55 °C to 110 °C
UL File NumberE-157227
Operating Temperature Range (Celsius)-55 °C to 110 °C
Elongation UOM%
Inner Diameter Before Shrink (Imperial)1.0
Adhesive MaterialSilicone
Inner Diameter Before Shrink (Metric)25.4
Flame RetardantYes
