3M Products & Supplies

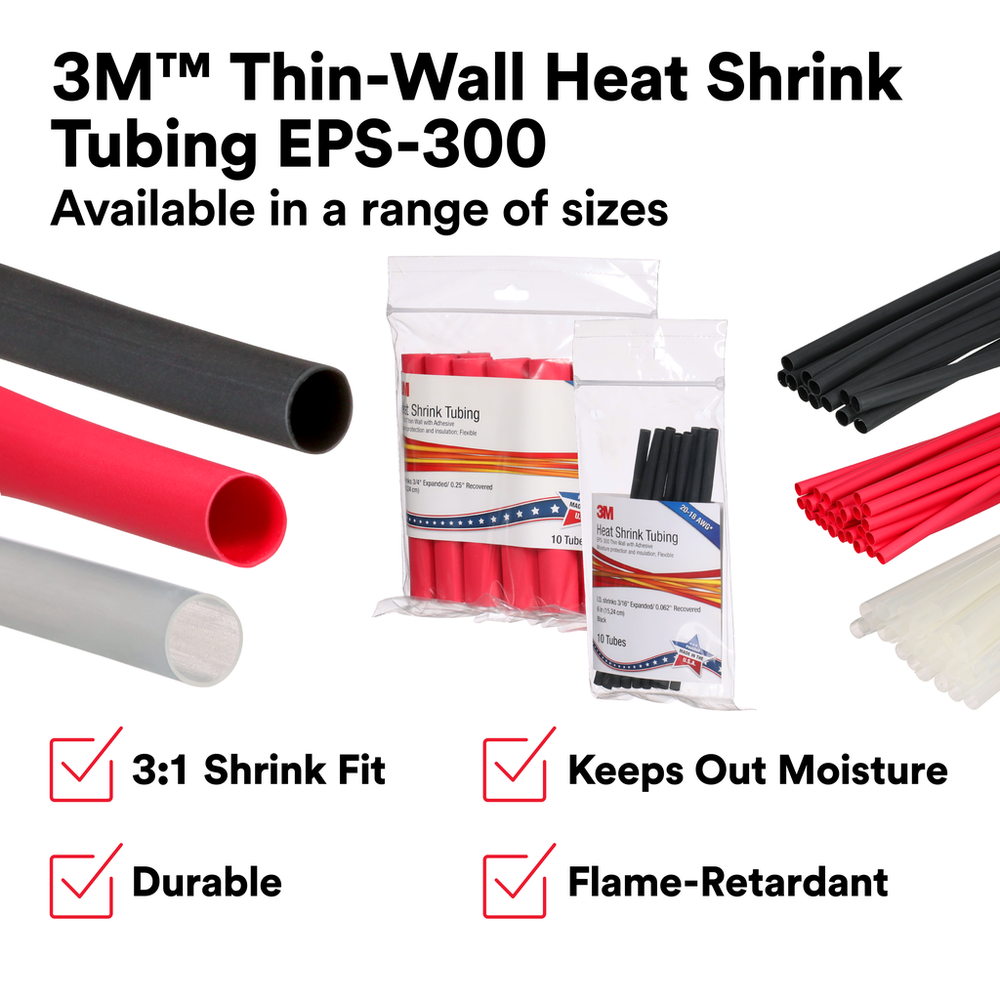

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/4-48"-Black-200 Pcs, 48 in length sticks, 200 pieces/case - 7000133614

Sold As: 200-Pack
SKU: 7000133614
MPN: 7000133614
For an accurate lead time please contact us
UPC: 00051128599181
3M ID: 80611601792
5 Digit UPC: 59918
$1,176.85 ($5.88 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Flame-retardant tubing is rated for 600V applications
  • Offers the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)

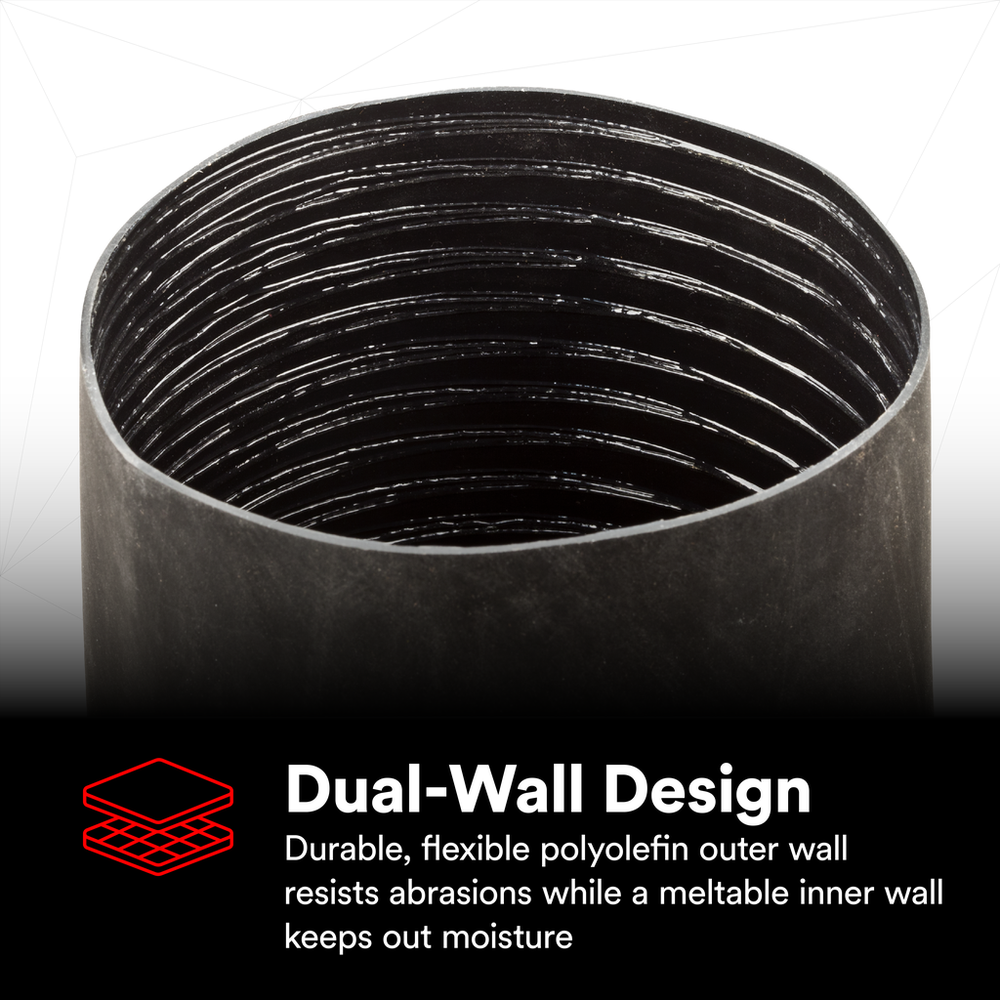

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Product ColorBlack
Minimum Expanded Tubing I. D.0.25
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes

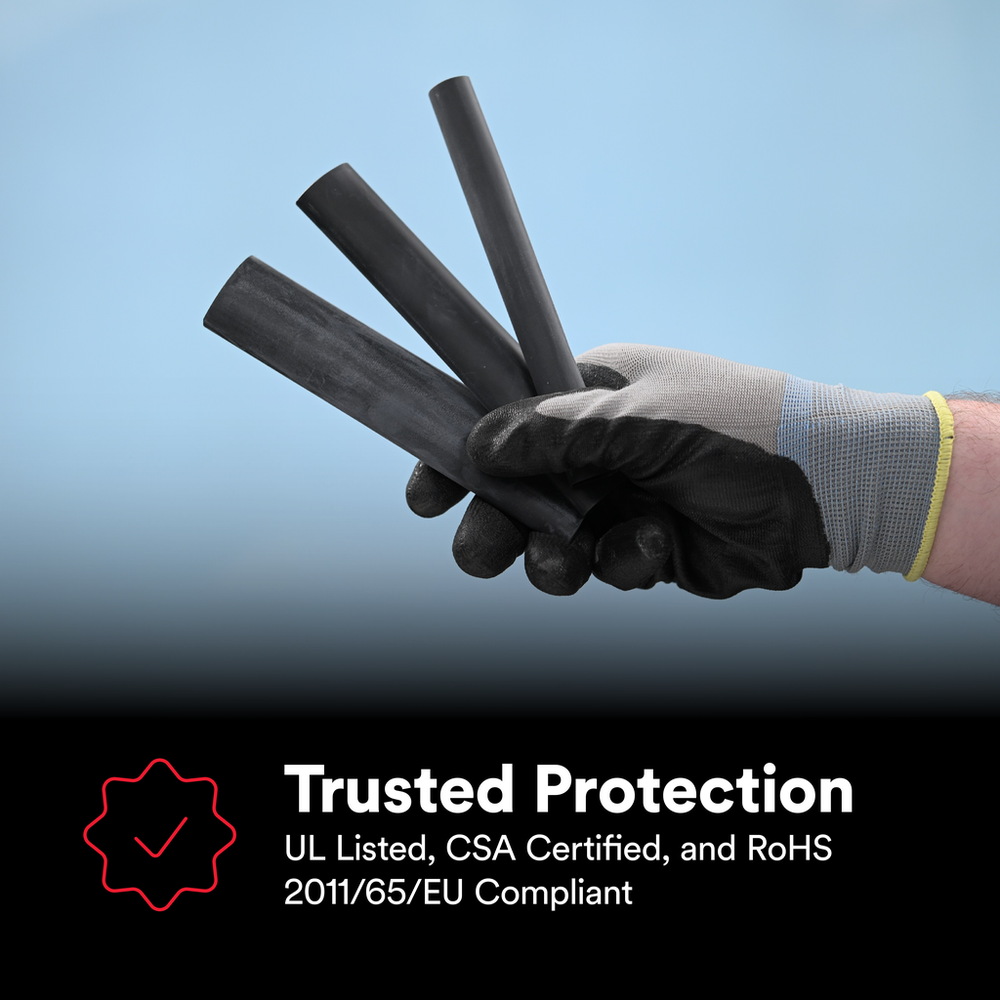

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)6.35
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)3.18
Inner Diameter After Shrink (Imperial) UOMin
UL File NumberE-157227
Maximum Operating Temperature (Fahrenheit)392.0
Adhesive MaterialSilicone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Shrink Ratio3:1
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial)0.25
Inner Diameter After Shrink (Imperial)0.125
Elongation UOMdB
Maximum Operating Temperature (Celsius)200.0
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Celsius) UomDegree
Electrolytic Corrosion Factor0.9
Overall Length (Imperial)48.0
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Units per Case200.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Tubing TypeDual Wall (Adhesive Lined)
