3M Products & Supplies

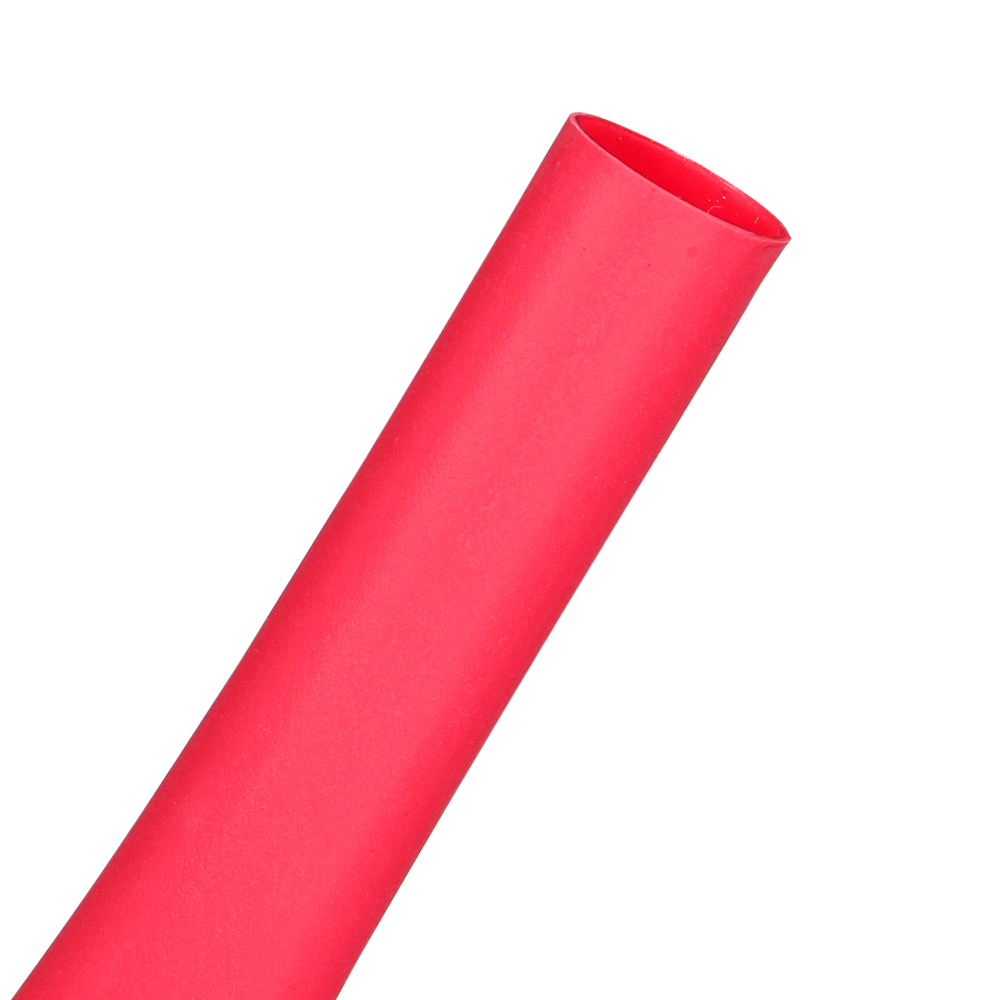

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/4" Red 48-in sticks, 200/Case - 7010398854

Sold As: 200-Pack
SKU: 7010398854
MPN: 7010398854
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597668
3M ID: 80611600273
5 Digit UPC: 59766
$1,204.64 ($6.02 / Count)
Hurry up! Current stock:

Product Description

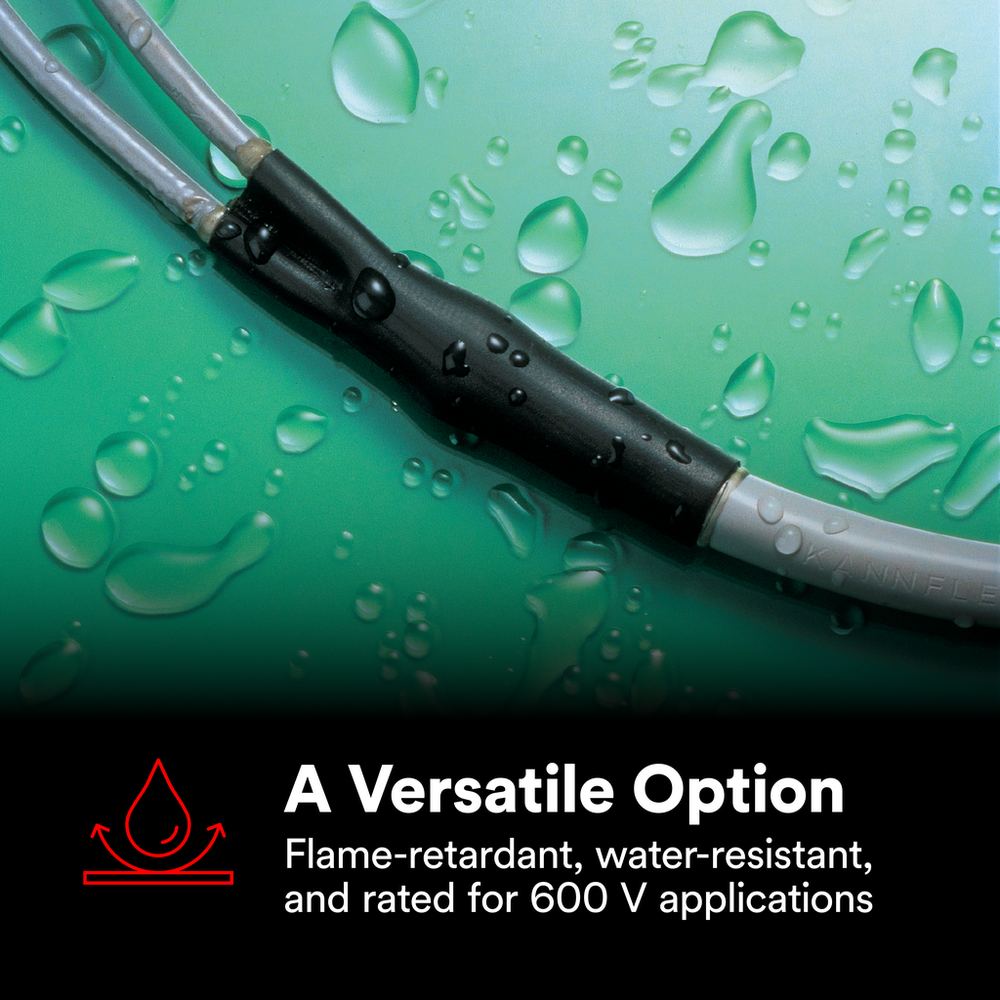

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

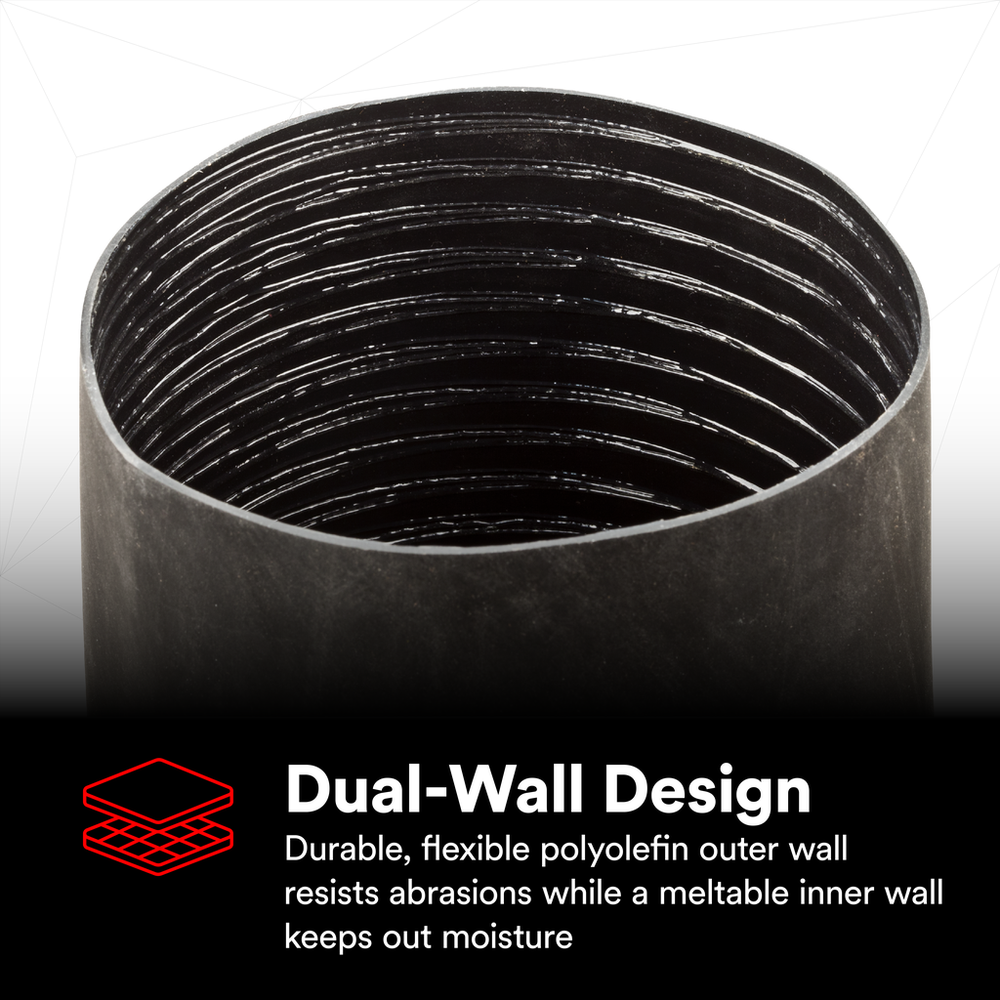

  • Dual-wall construction provides abrasion resistance and moisture-seal protection

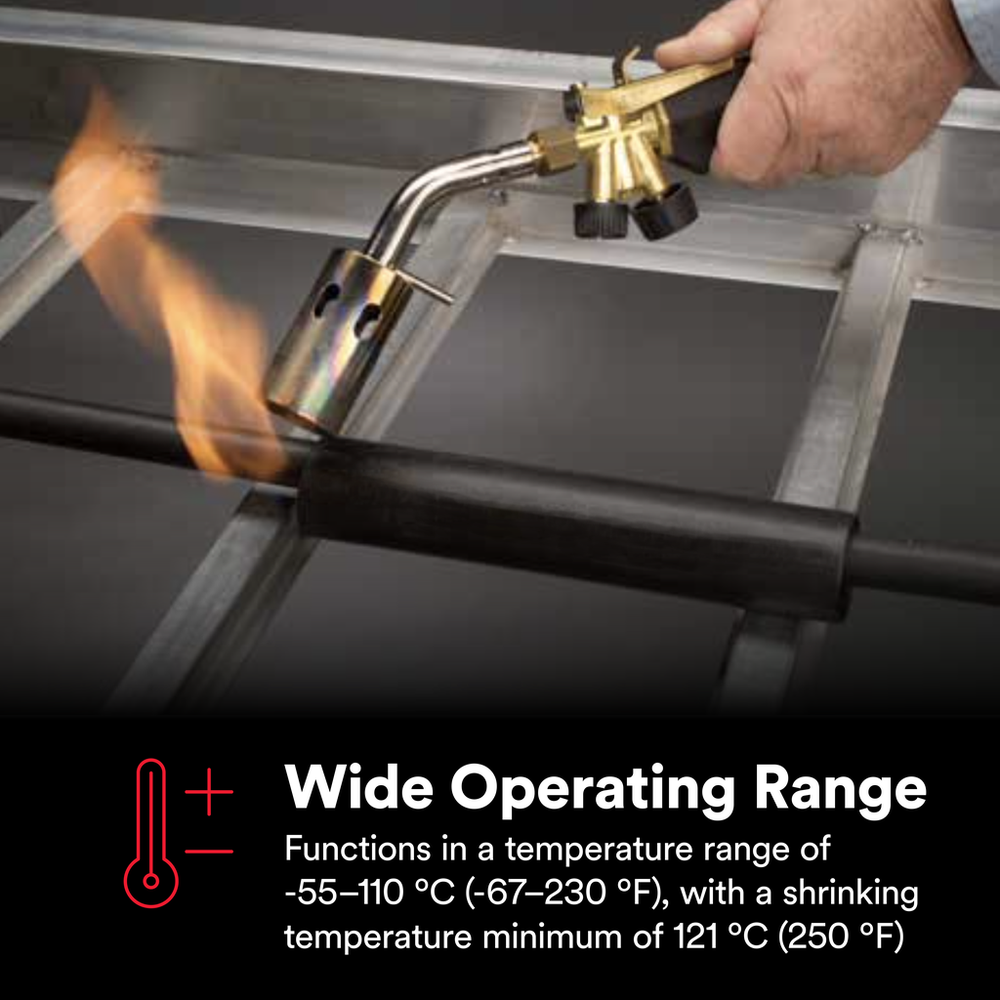

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Offers the advantage of integral, adhesive-lined construction

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial)0.25
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Adhesive MaterialSilicone
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial)0.125
Inner Diameter Before Shrink (Metric) UOMmm

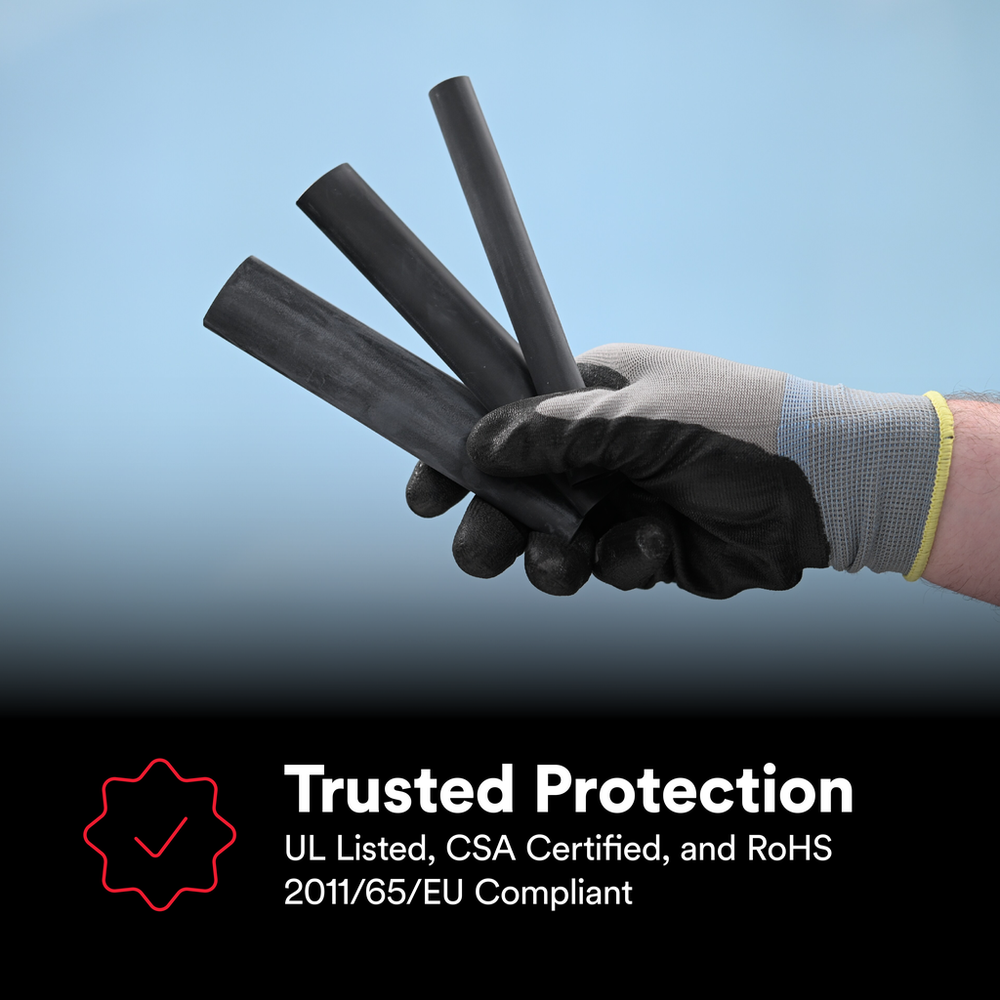

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)3.18
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case200.0
Inner Diameter Before Shrink (Metric)6.35
Inner Diameter After Shrink (Metric) UOMmm
