3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/8" Red 48-in sticks, 125/Case - 7010320987

Sold As: 125-Pack
SKU: 7010320987
MPN: 7010320987
For an accurate lead time please contact us
UPC: 10051128597672
3M ID: 80611600281
5 Digit UPC: 59767
$918.39 ($7.35 / Count)
Hurry up! Current stock:

Product Description

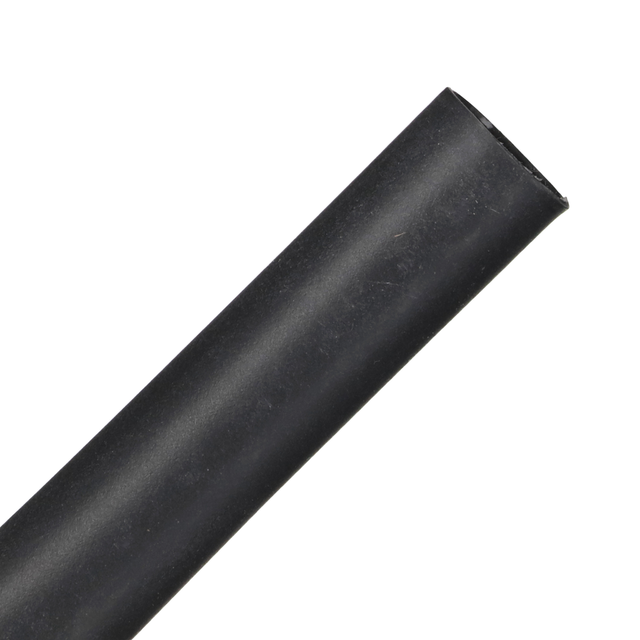

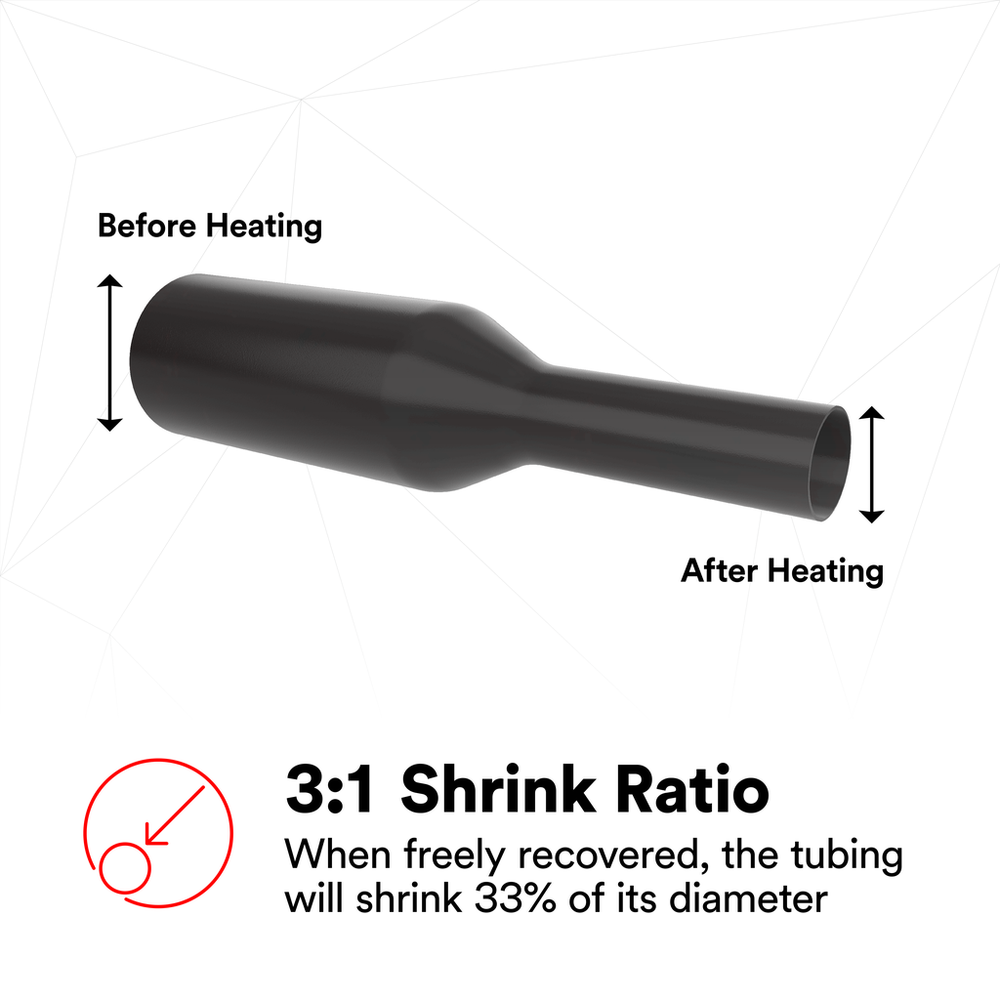

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Flame-retardant tubing is rated for 600V applications

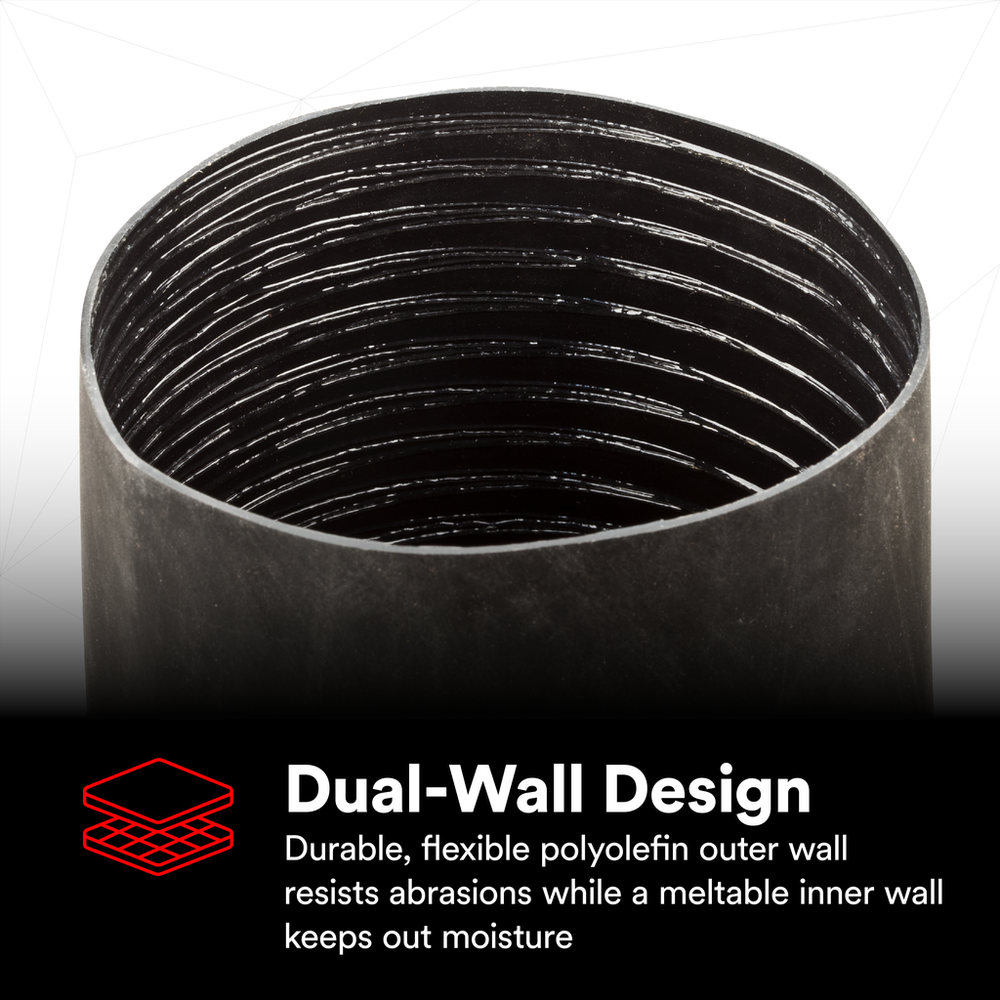

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)3.05
Units per Case125.0
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial)0.375
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)9.53
Inner Diameter After Shrink (Imperial)0.12
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialSilicone
