3M Products & Supplies

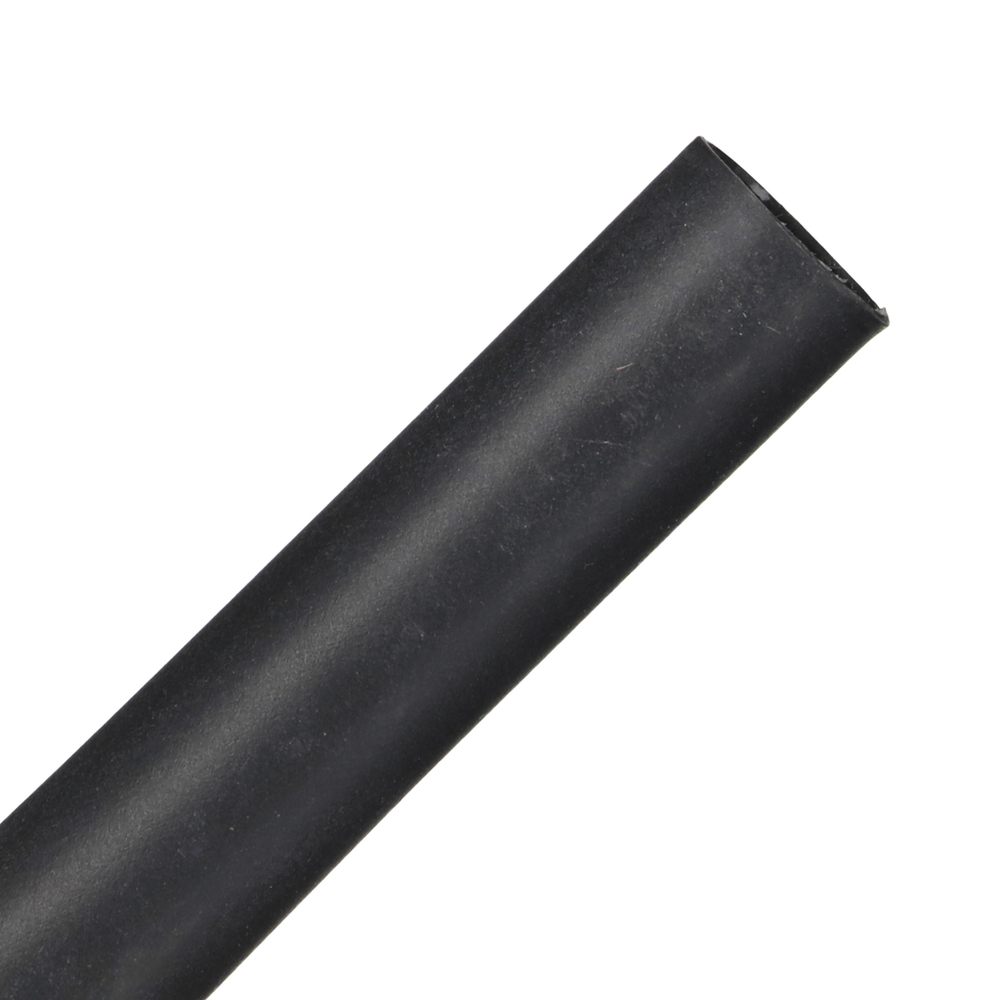

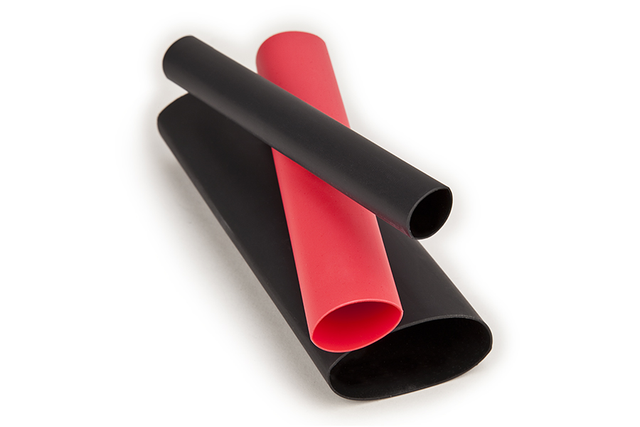

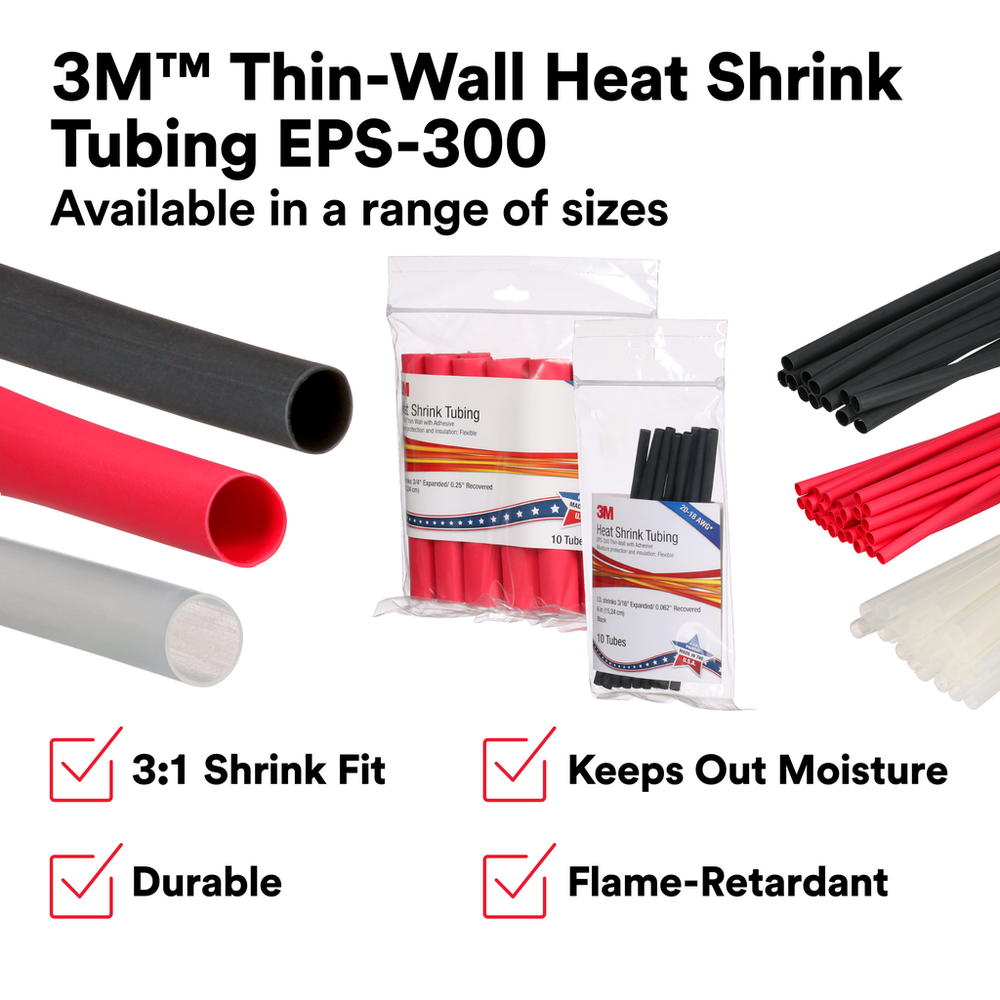

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/8" Black 48-in sticks, 12/Case - 7010398863

Sold As: 12-Pack
SKU: 7010398863
MPN: 7010398863
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597927
3M ID: 80611600539
5 Digit UPC: 59792
$345.11 ($28.76 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers the advantage of integral, adhesive-lined construction

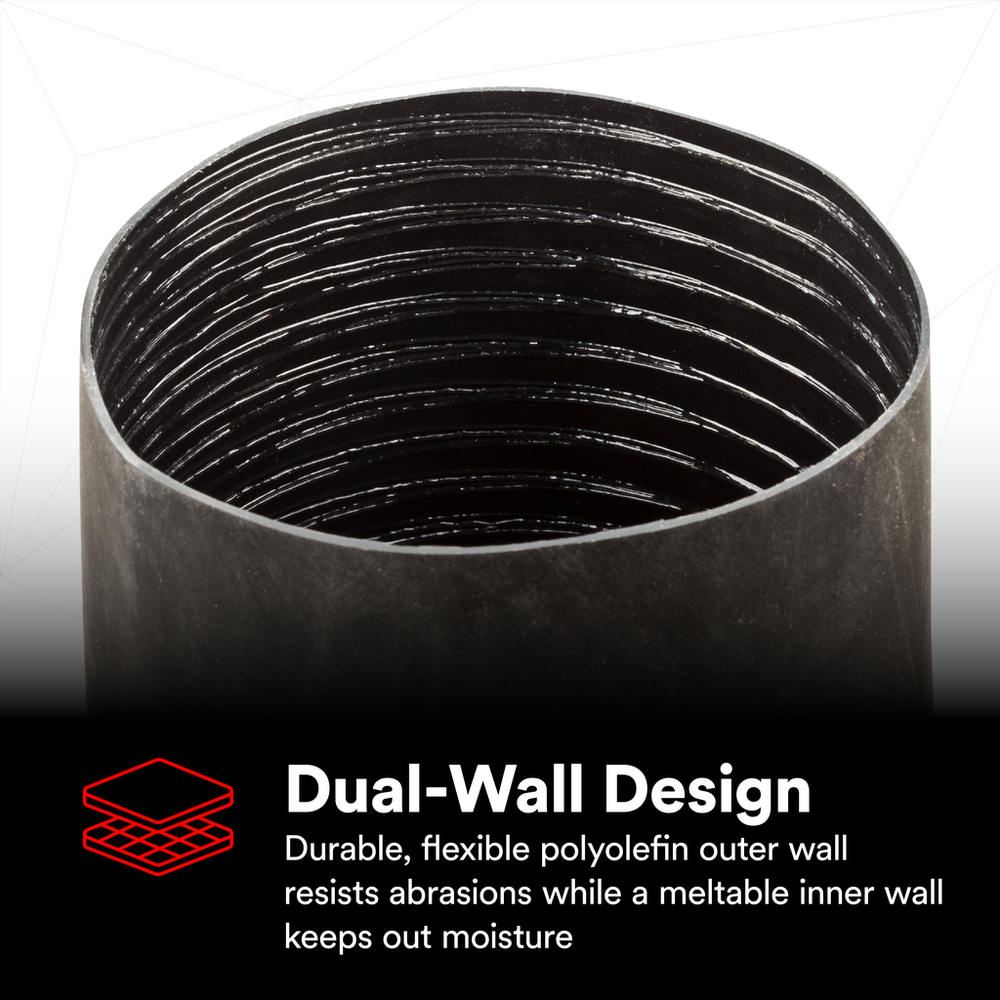

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)3.05
Inner Diameter After Shrink (Imperial)0.12
Inner Diameter Before Shrink (Metric)9.53
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Tubing TypeDual Wall (Adhesive Lined)
MaterialPolyolefin
Product ColorBlack
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio3:1
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Imperial)0.375
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Flame RetardantYes
Non-CorrosiveYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D.0.375
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Imperial) UOMin
Adhesive MaterialSilicone
Units per Case12.0
