3M Products & Supplies

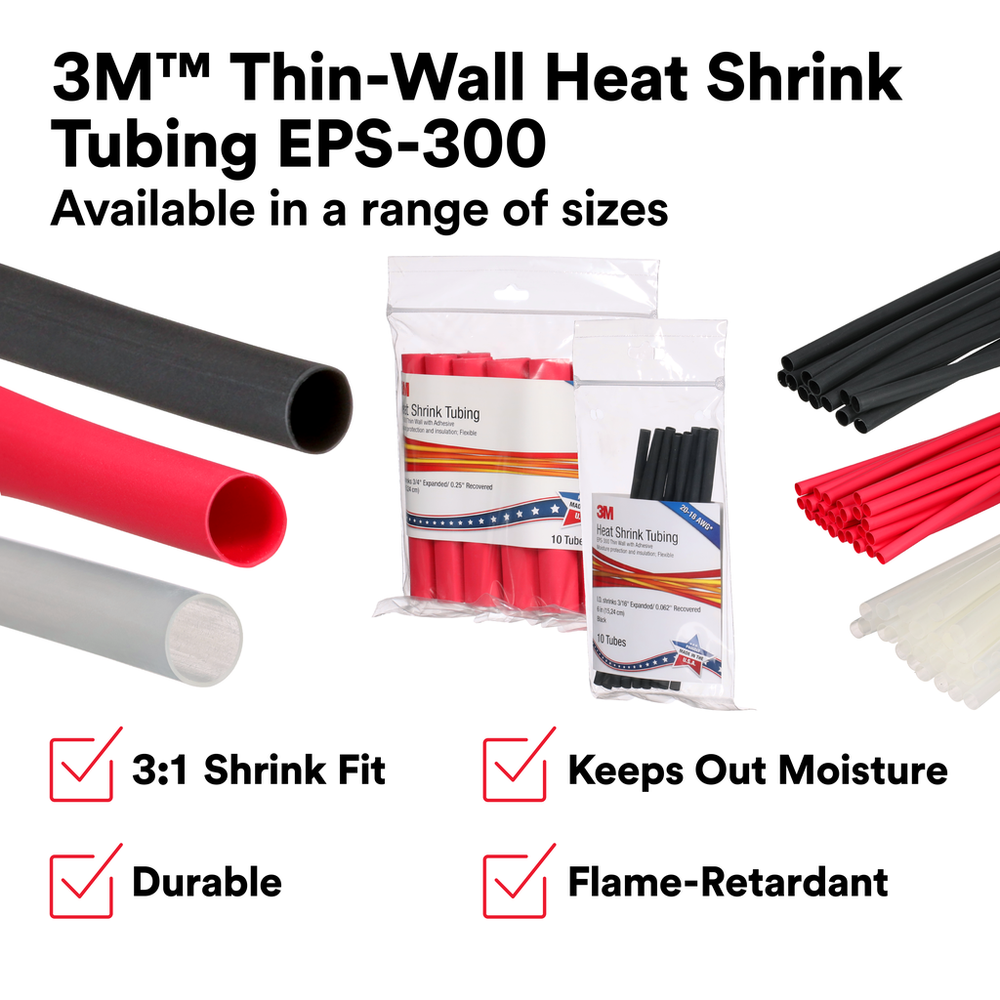

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4" Black 48-in sticks, 5/Case - 7100079242

Sold As: 40-Pack
SKU: 7100079242
MPN: 7100079242
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597958
3M ID: 80611600562
5 Digit UPC: 59795
$2,092.51 ($52.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

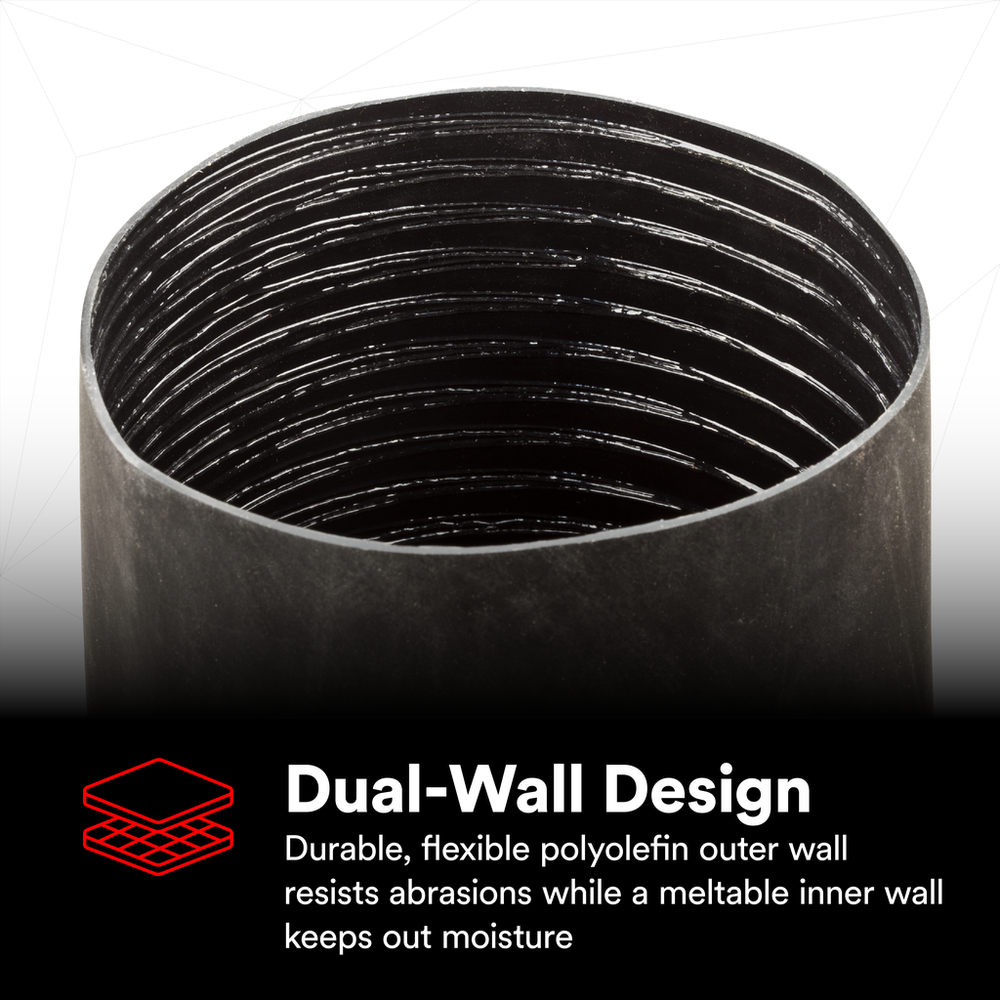

  • Dual-wall construction provides abrasion resistance and moisture-seal protection

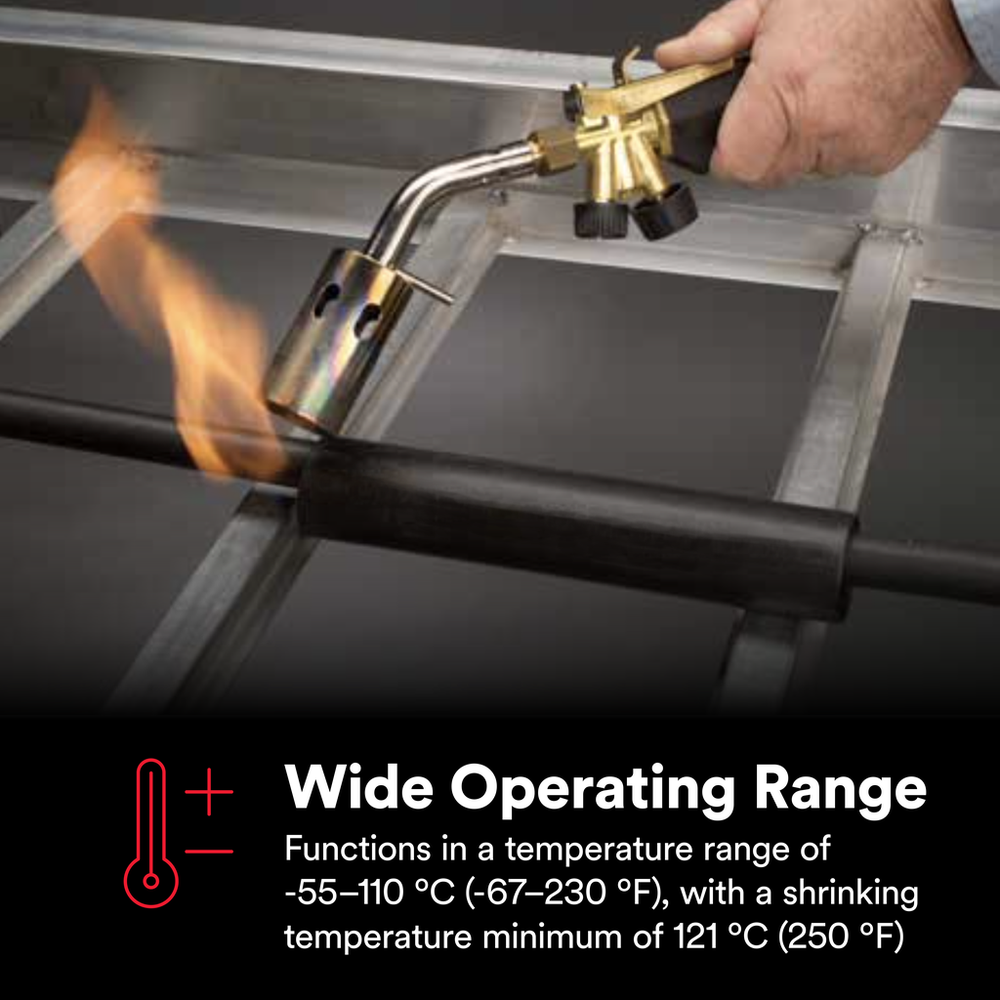

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
Minimum Expanded Tubing I. D.0.75
Adhesive MaterialSilicone
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to 110 °C
Product ColorBlack
Operating Temperature (Fahrenheit)-67 °F to 230 °F
UL File NumberE-157227
Inner Diameter Before Shrink (Imperial) UOMin
Units per Case5.0
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric)6.35
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
Flame RetardantYes
Overall Length (Imperial) UOMin

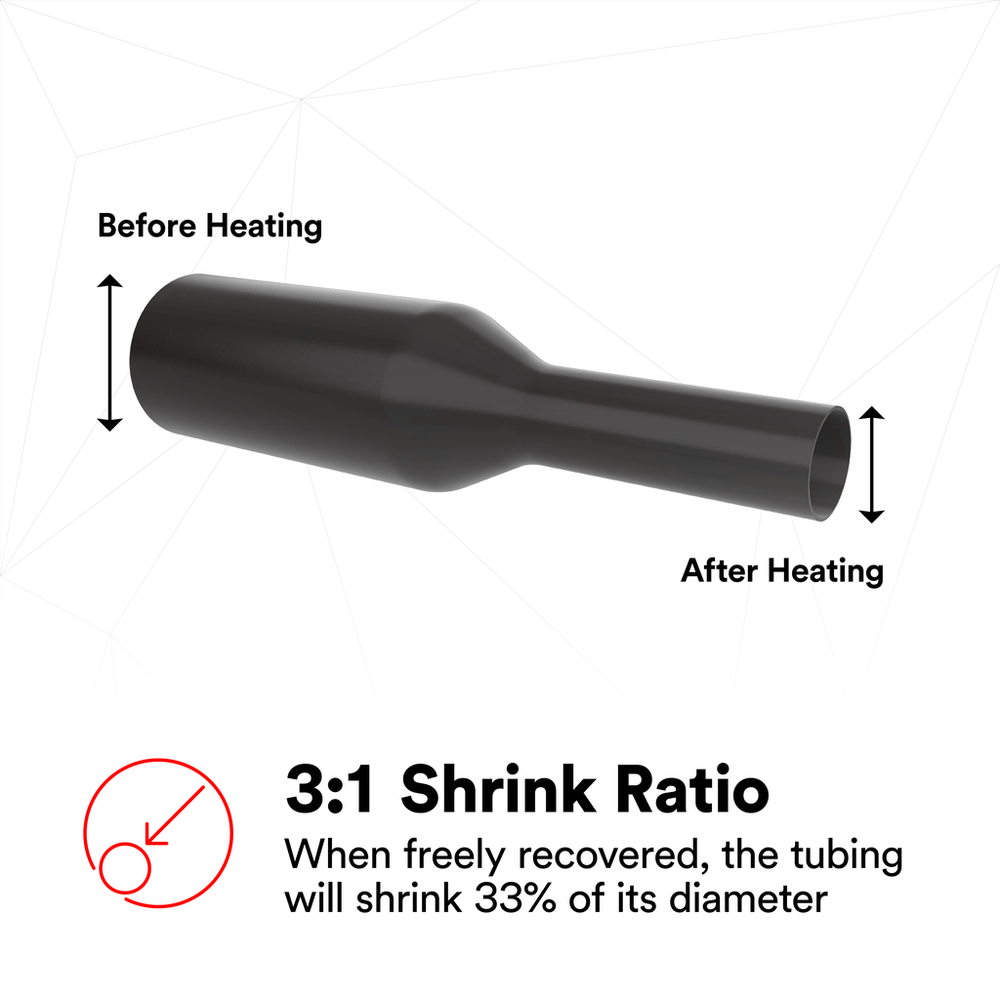

Shrink Ratio3:1
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.25
Maximum Operating Temperature (Celsius) UomDegree
Overall Length (Metric) UOMmm
Overall Length (Metric)1219.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter Before Shrink (Imperial)0.75
Inner Diameter Before Shrink (Metric)19.05
Non-CorrosiveYes
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Elongation UOMdB
MaterialPolyolefin
