3M Products & Supplies

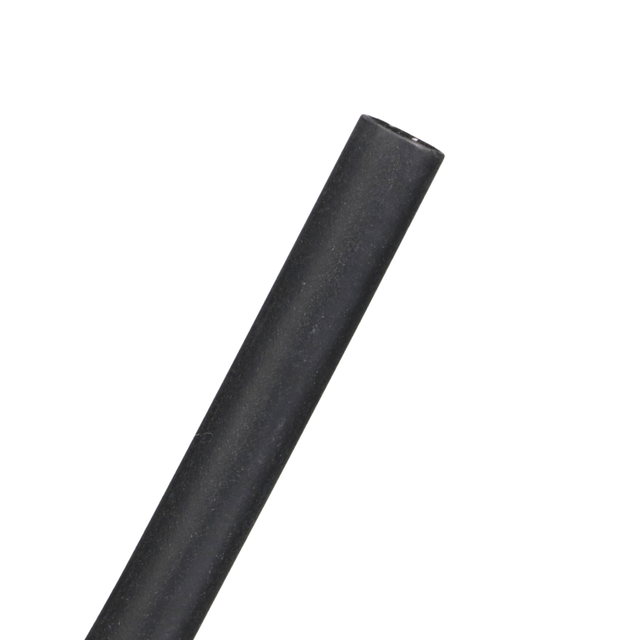

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/16" Black 48-in sticks, 12/Case - 7000133597

Sold As: 12-Pack
SKU: 7000133597
MPN: 7000133597
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597903
3M ID: 80611600513
5 Digit UPC: 59790
$248.81 ($20.73 / Count)
Hurry up! Current stock:

Product Description

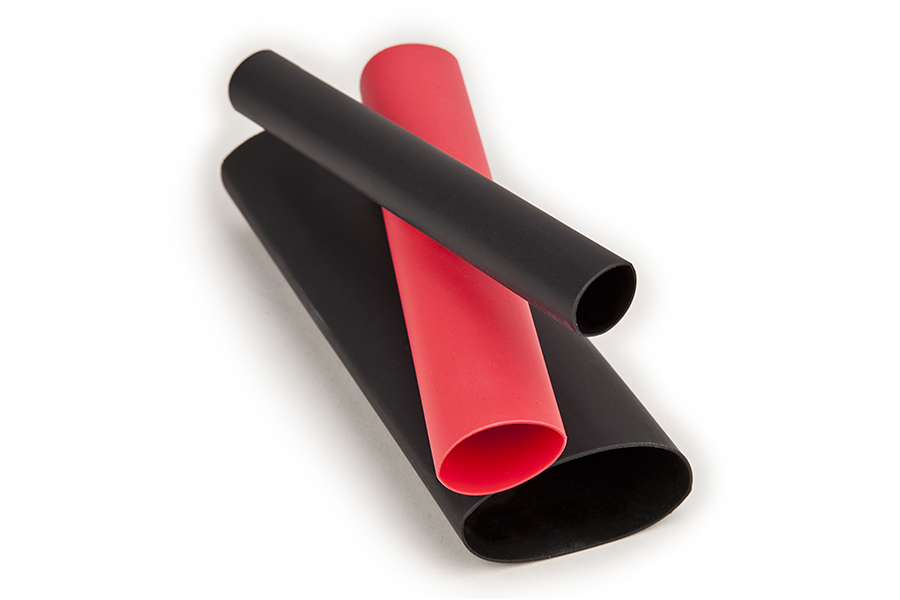

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.062
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric)1.57
Maximum Operating Temperature (Celsius)110.0
Overall Length (Imperial)48.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Units per Case12.0
Inner Diameter Before Shrink (Metric)4.75
Minimum Expanded Tubing I. D.0.187
Overall Length (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Celsius) UomDegree
Product ColorBlack
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
Non-CorrosiveYes
Shrink Ratio3:1
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.187
Inner Diameter After Shrink (Imperial) UOMin
UL File NumberE-157227
Overall Length (Metric)1219.0
MaterialPolyolefin
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialSilicone
Tubing TypeDual Wall (Adhesive Lined)
Elongation UOMdB
