3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-Black-48", 12/Case - 7000133583

Sold As: 12-Pack
SKU: 7000133583
MPN: 7000133583
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597316
3M ID: 80611473929
5 Digit UPC: 59731
$239.69 ($19.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

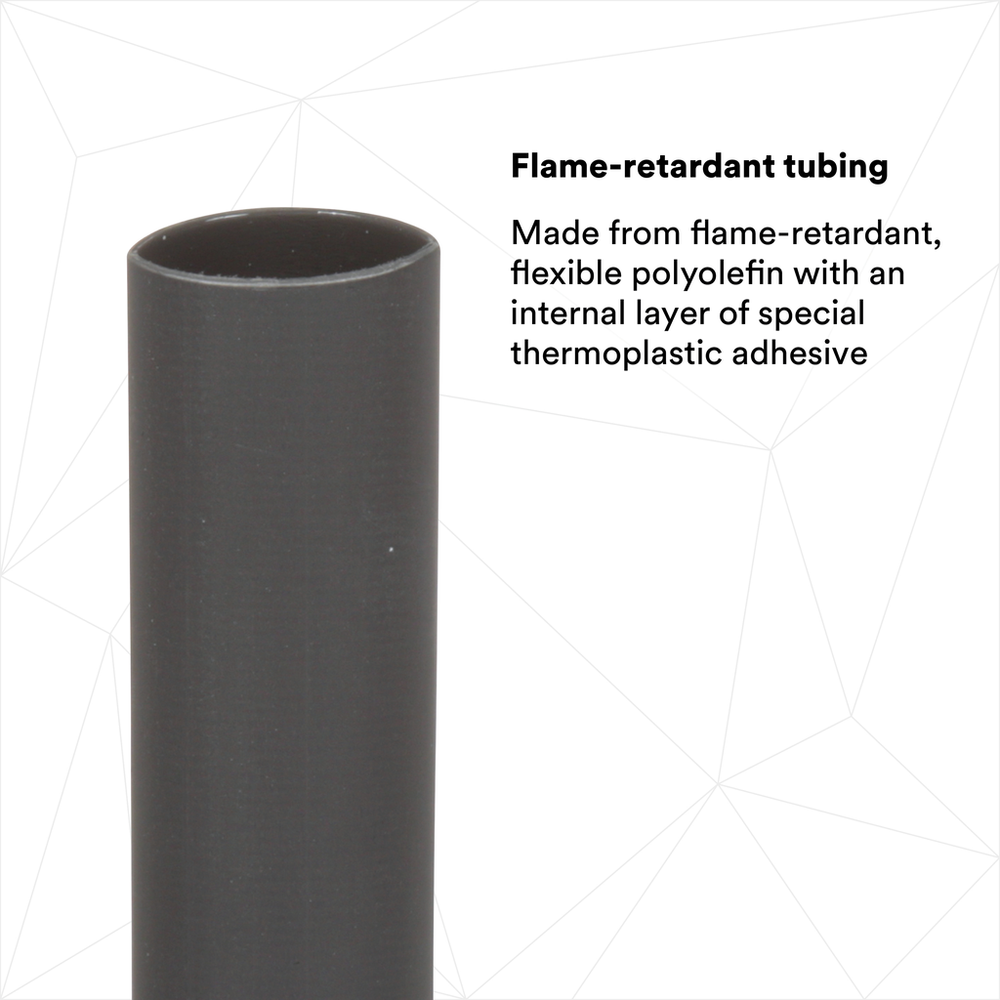

  • Flame-retardant tubing is rated for 600V applications

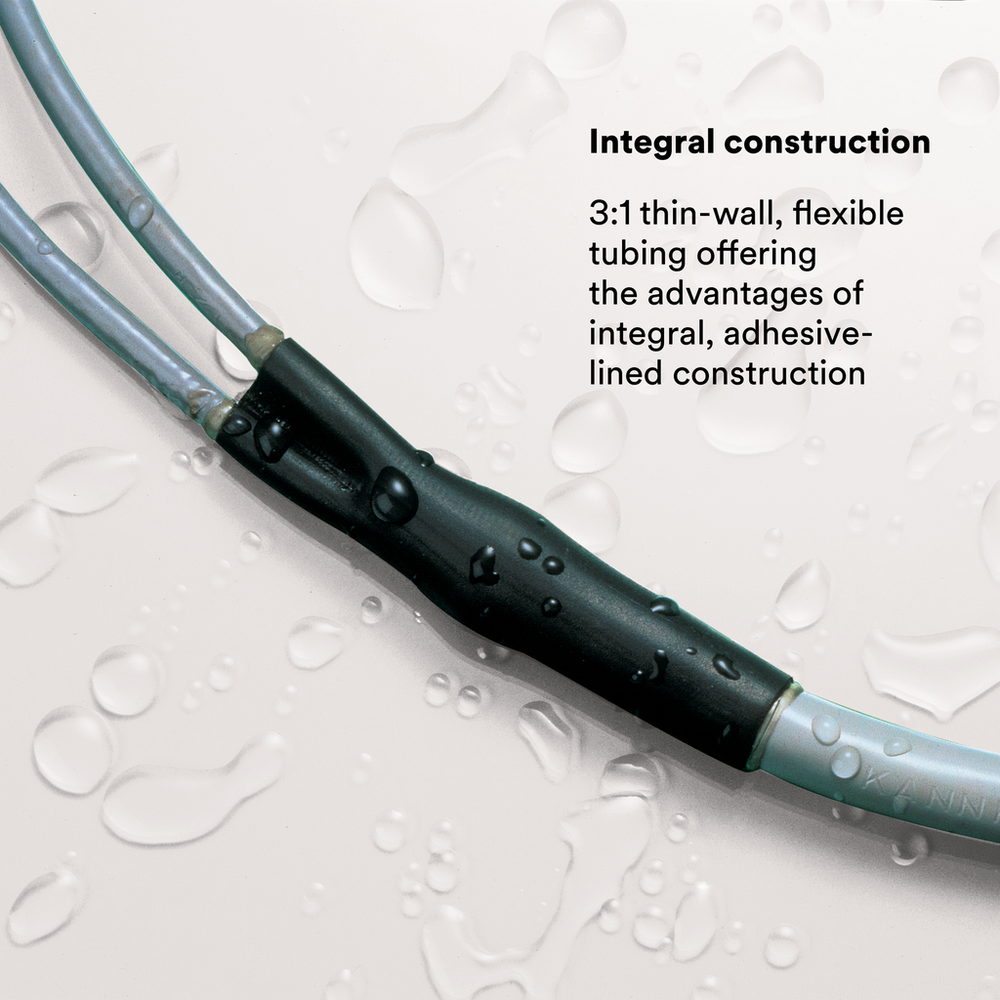

  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin

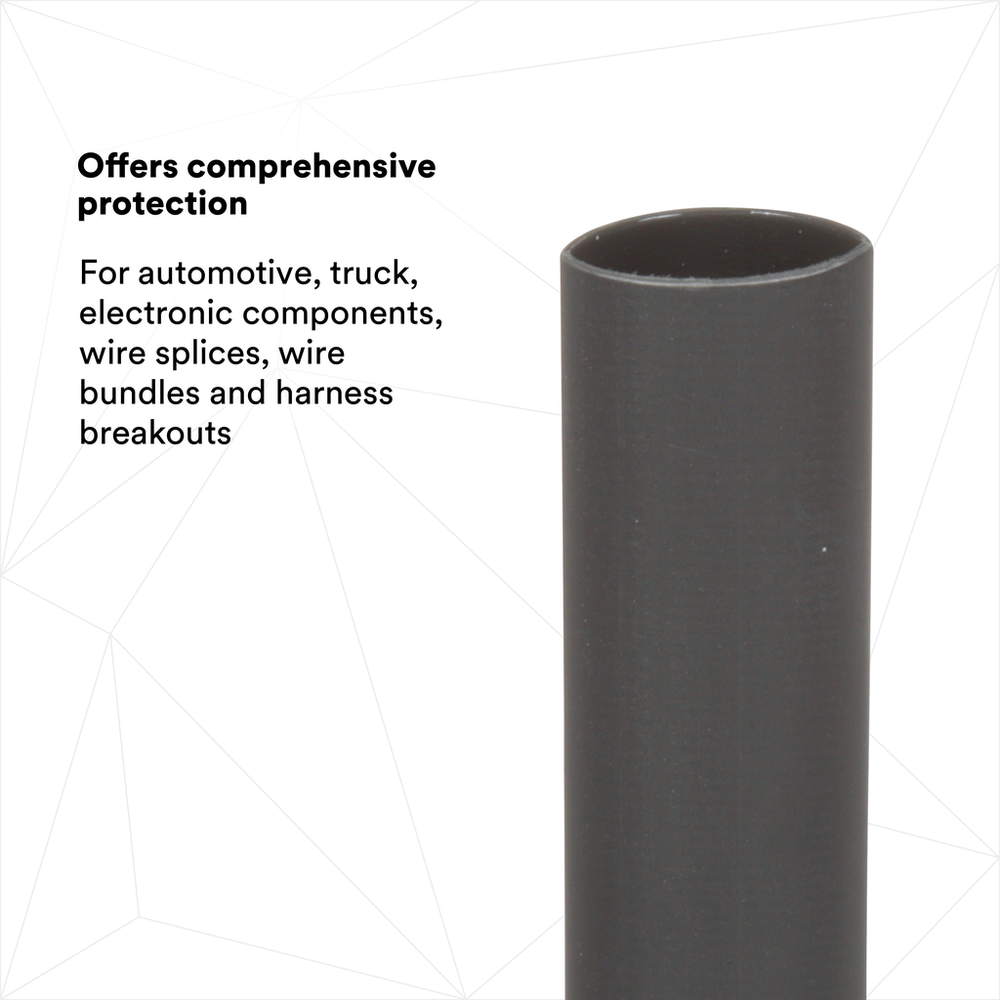

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

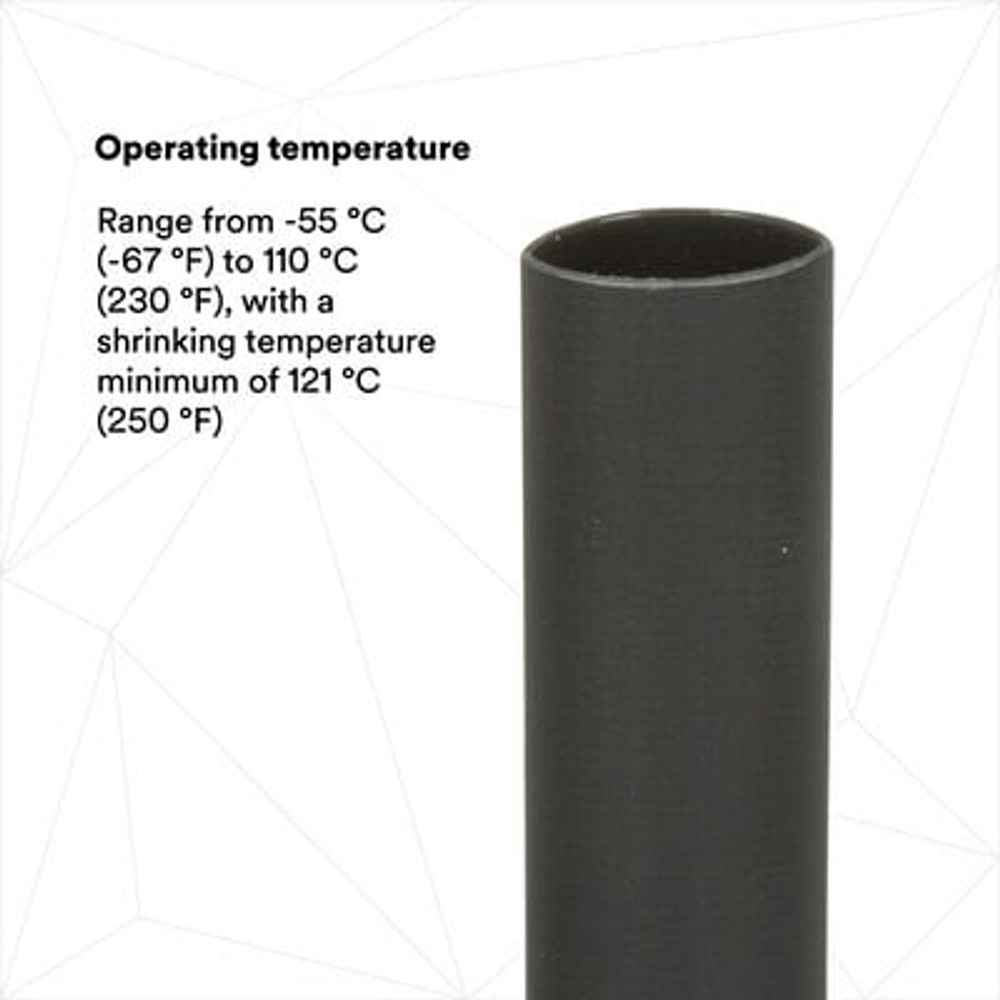

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)

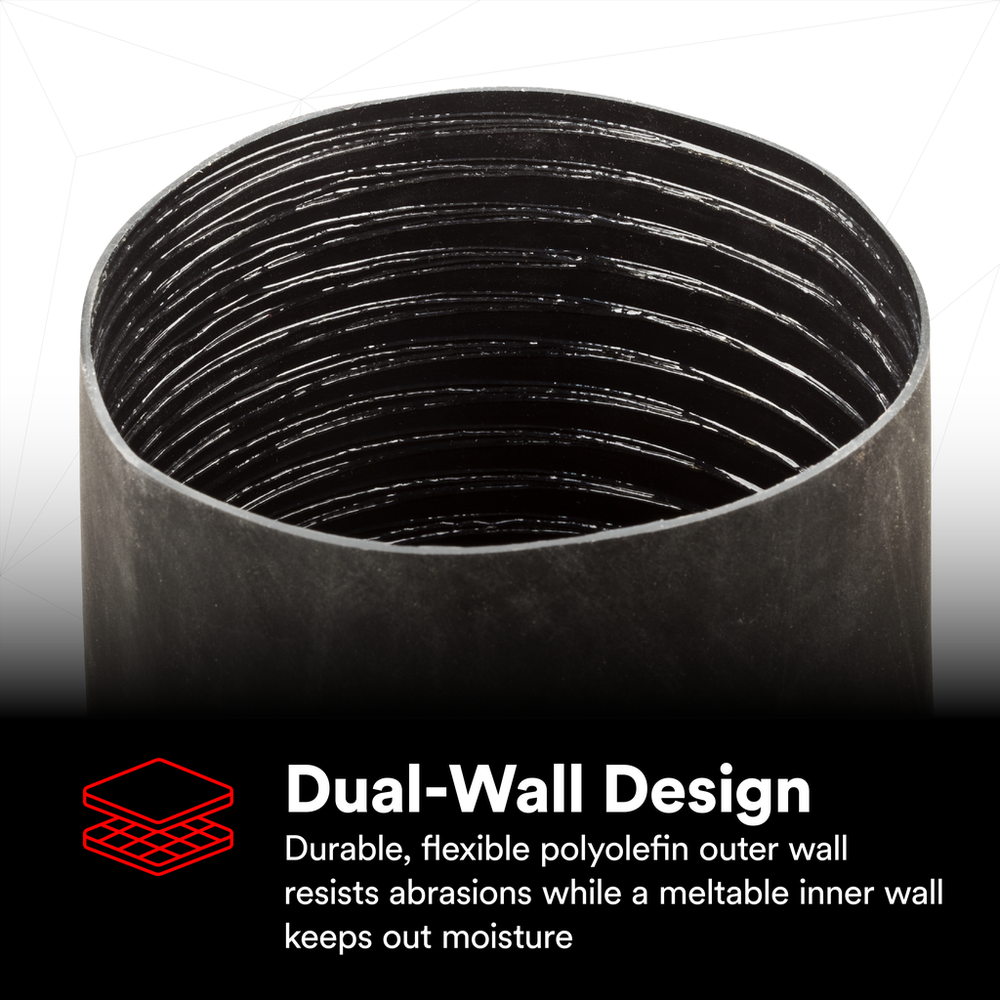

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Celsius)110.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOM%
Product ColorBlack
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)4.06
Inner Diameter After Shrink (Imperial)0.16
Minimum Expanded Tubing I. D.0.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Minimum Expanded Tubing I. D. UOMin
Adhesive MaterialSilicone
MaterialPolyolefin
Overall Length (Imperial)48.0
Maximum Operating Temperature (Fahrenheit)230.0
Units per Case12.0
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing

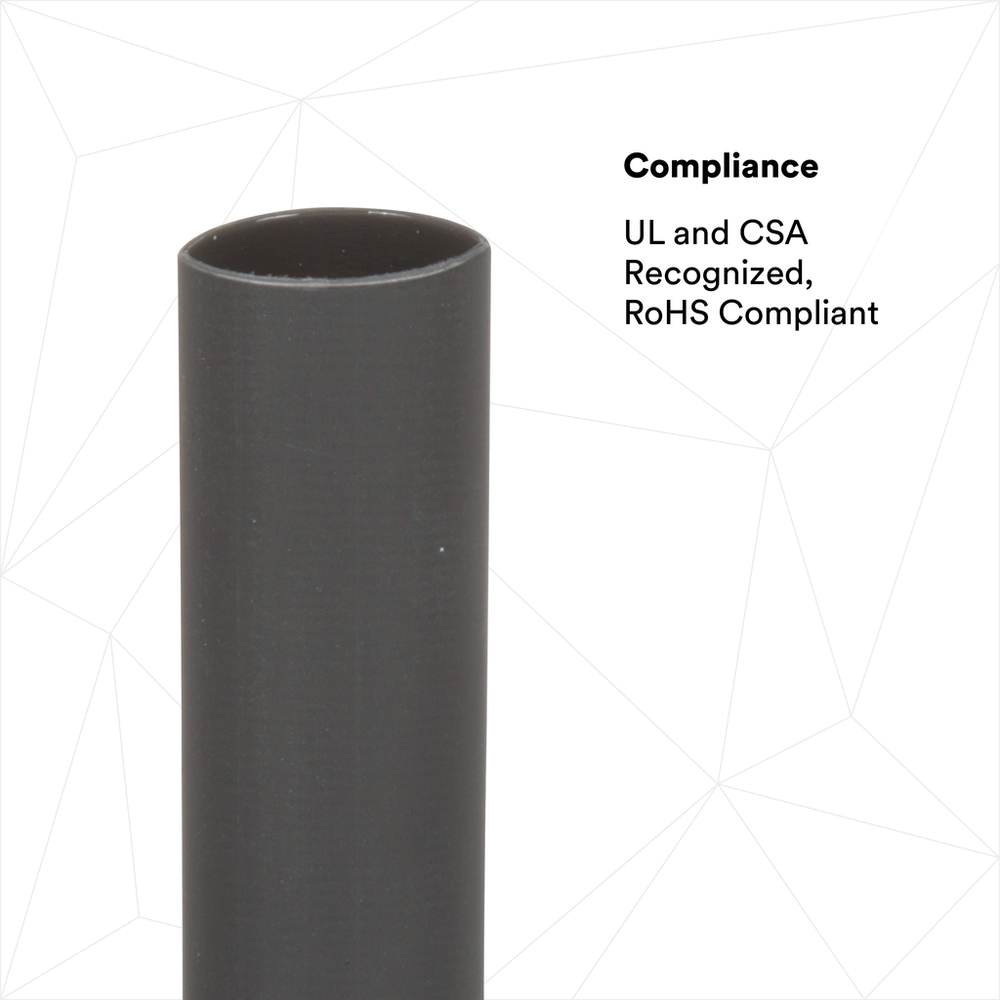

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)12.7
UL File NumberE-157227
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter Before Shrink (Imperial)0.5

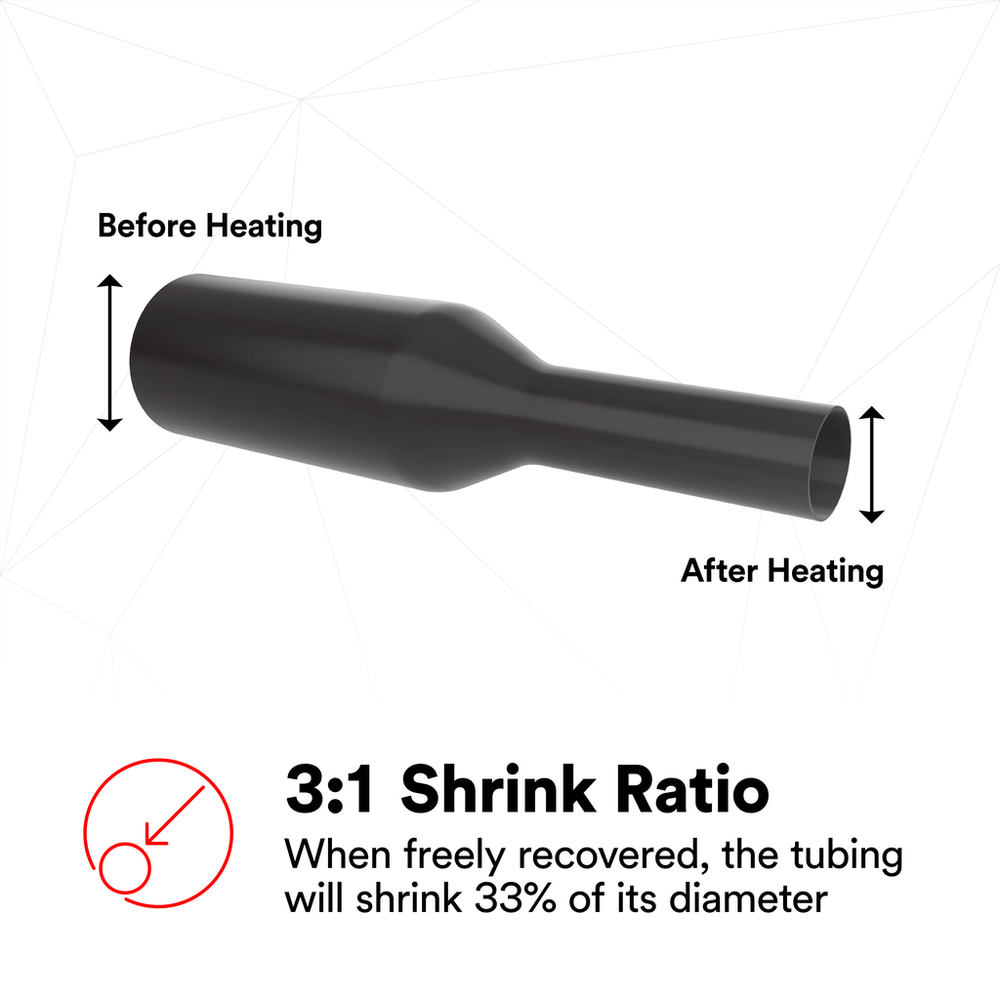

Shrink Ratio3:1
