3M Products & Supplies

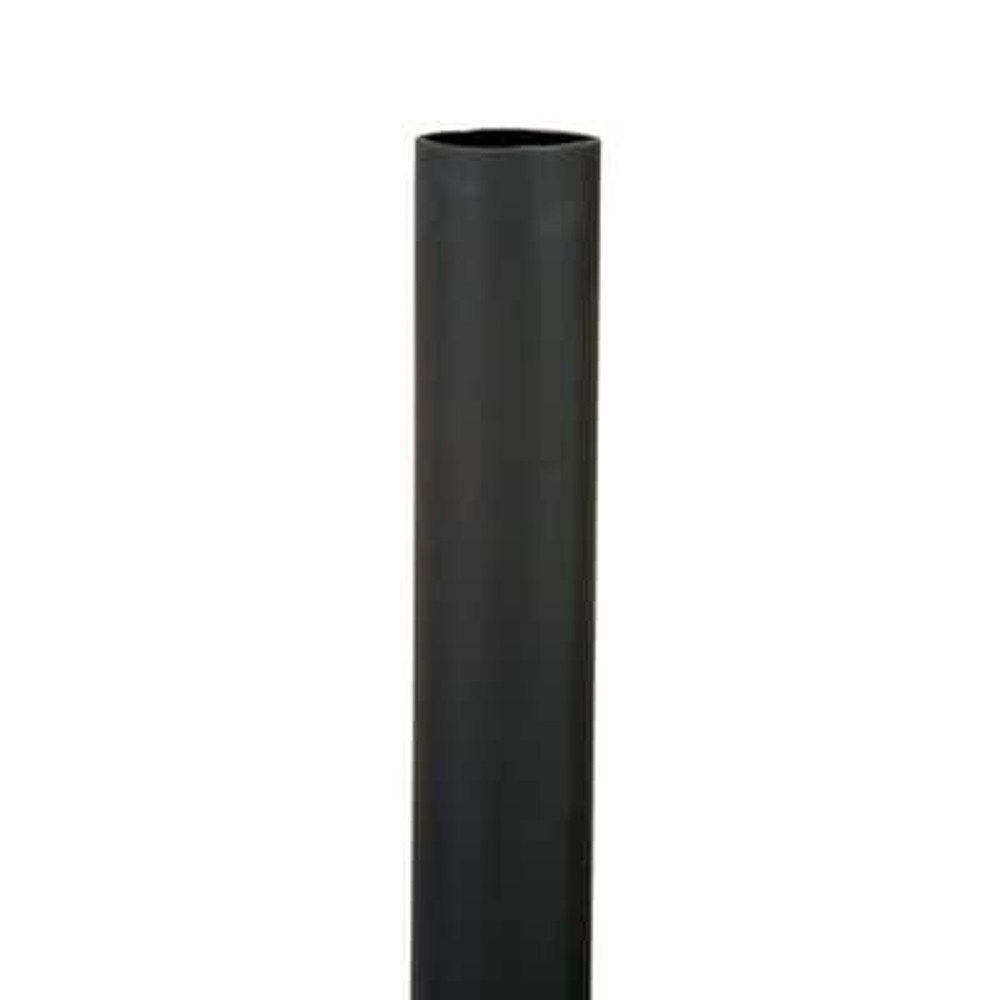

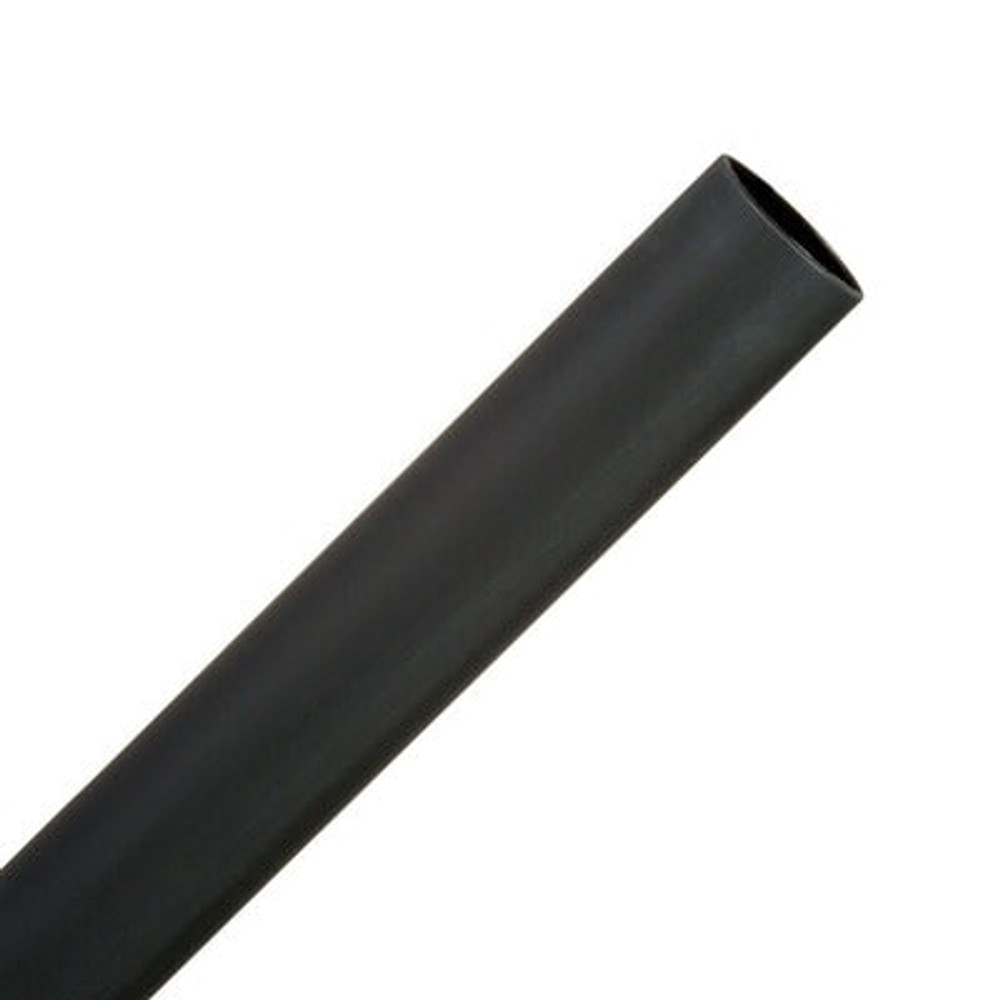

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-Black-48", 45/Case - 7000133617

Sold As: 45-Pack
SKU: 7000133617
MPN: 7000133617
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599211
3M ID: 80611601826
5 Digit UPC: 59921
$505.31 ($11.23 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin

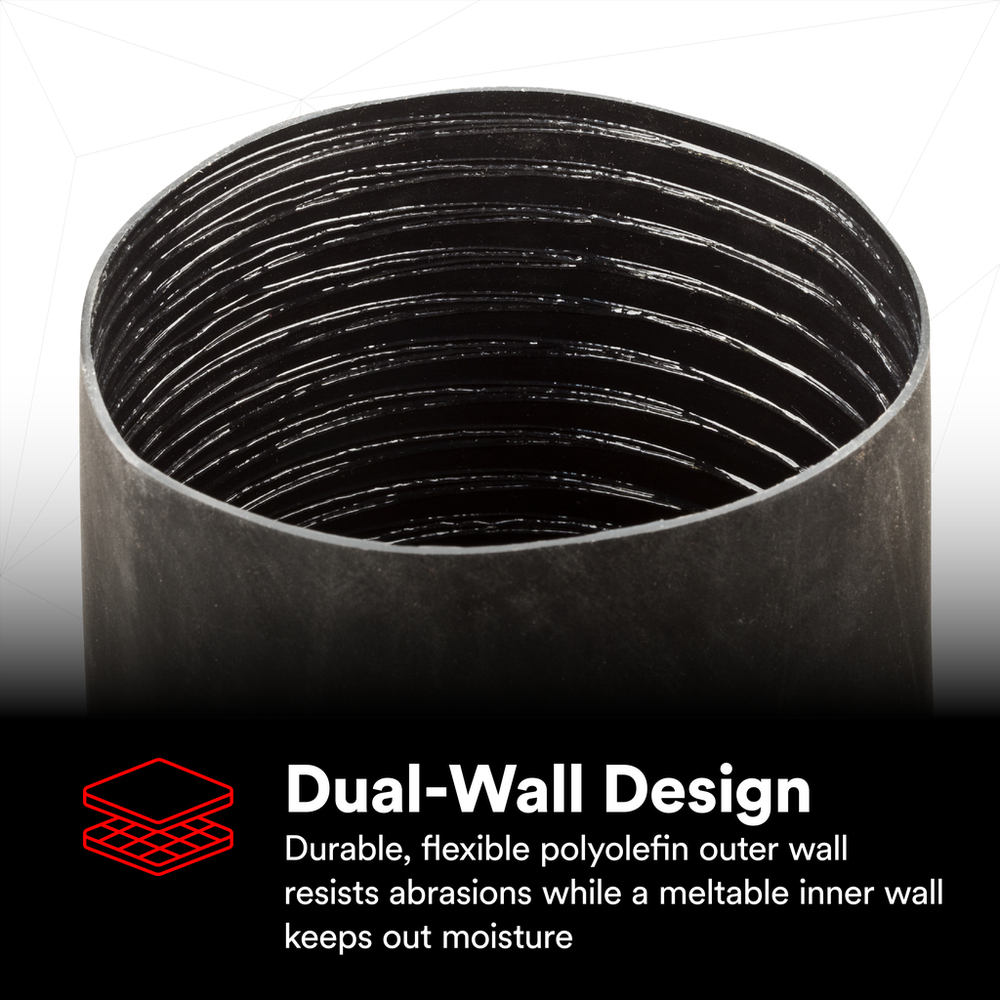

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Offers the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)

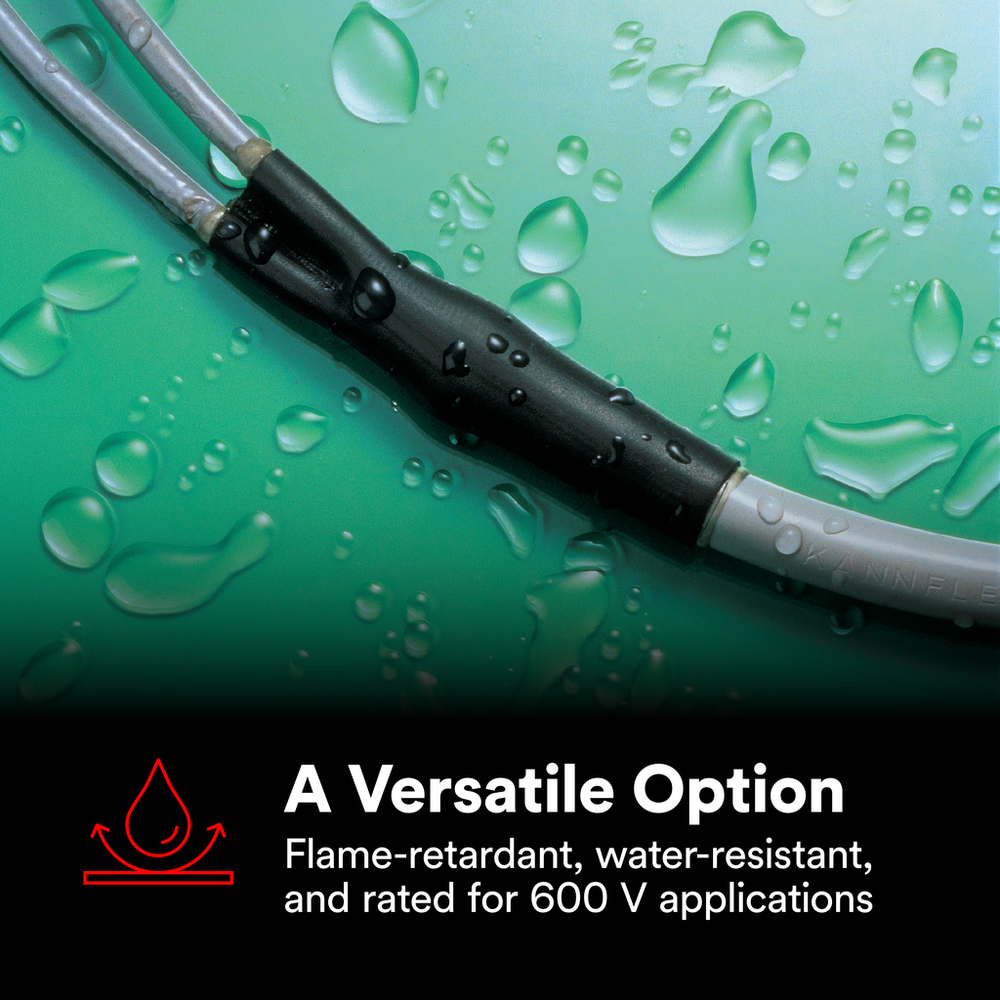

  • Flame-retardant tubing is rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)48.0
Flame RetardantYes
Inner Diameter After Shrink (Imperial) UOMin
MaterialPolyolefin
Inner Diameter After Shrink (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Expanded Tubing I. D.0.75
Units per Case45.0
Tubing TypeDual Wall (Adhesive Lined)
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial)0.75
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Maximum Operating Temperature (Celsius)110.0
UL File NumberE-157227
Inner Diameter Before Shrink (Metric)19.05
Inner Diameter After Shrink (Metric)6.35
Overall Length (Imperial) UOMin

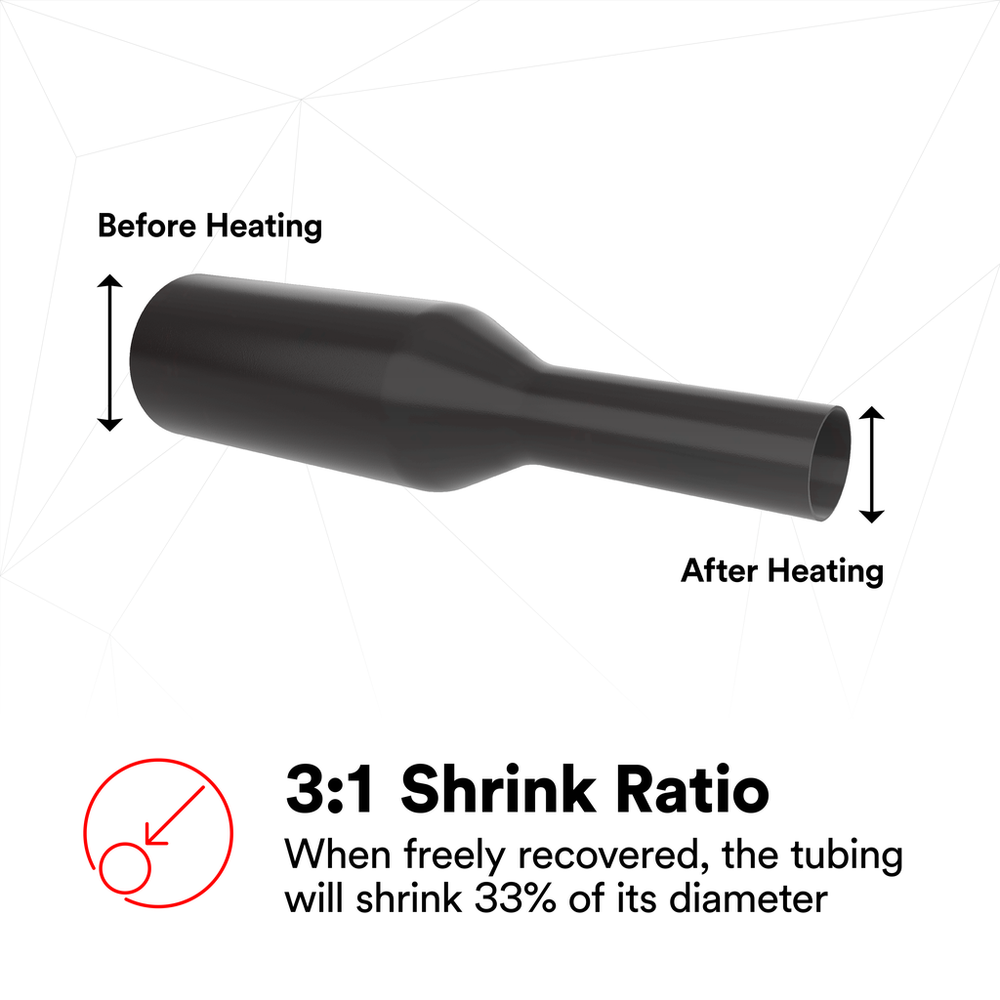

Shrink Ratio3:1
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature Range (Celsius)-55 °C to 110 °C
Elongation UOM%
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Adhesive MaterialSilicone
Product ColorBlack
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
