3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/8" Black 48-in sticks, 25/Case - 7010297797

Sold As: 25-Pack
SKU: 7010297797
MPN: 7010297797
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128597897
3M ID: 80611600505
5 Digit UPC: 59789
$382.68 ($15.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Offers the advantage of integral, adhesive-lined construction

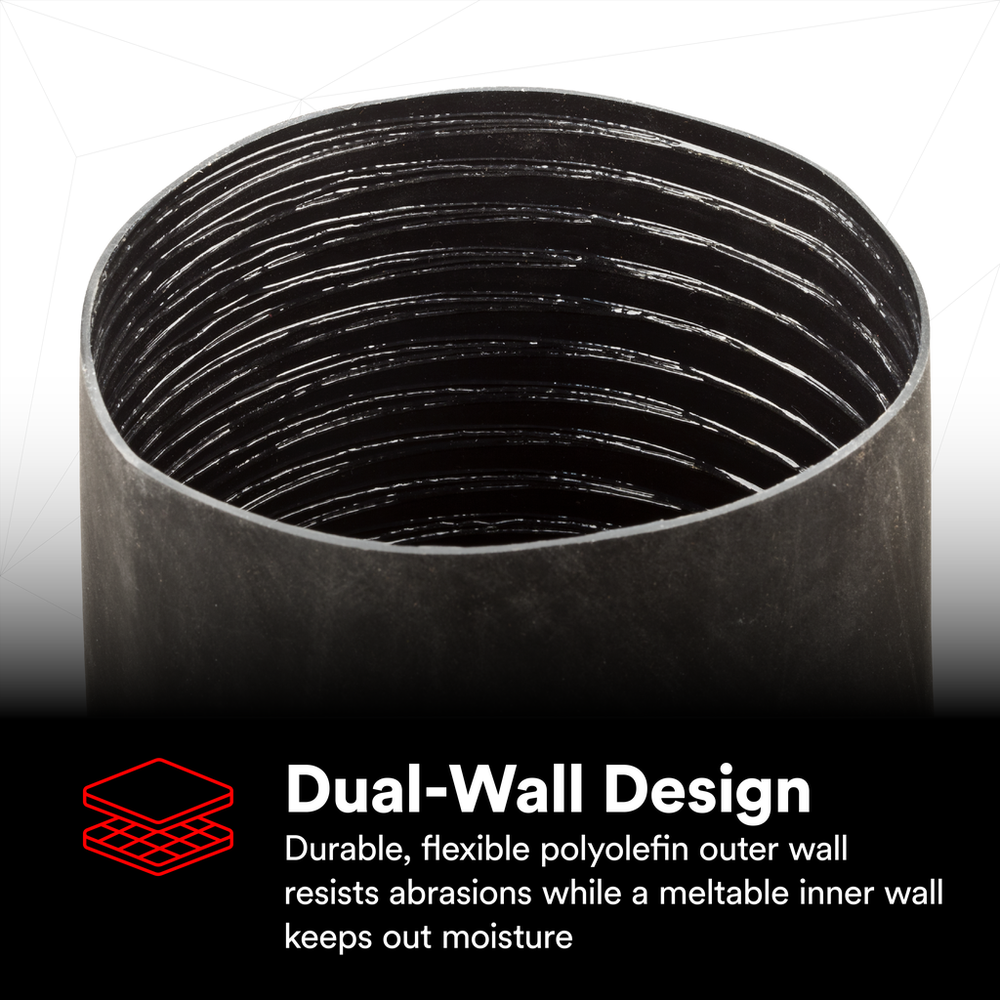

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)230.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)1.02
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)3.18
Inner Diameter Before Shrink (Imperial)0.125
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Product ColorBlack
Minimum Expanded Tubing I. D.0.125
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Imperial) UOMin
MaterialPolyolefin
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.04
Flame RetardantYes
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Overall Length (Imperial)48.0
Adhesive MaterialSilicone
Shrink Ratio3:1
Maximum Operating Temperature (Celsius)110.0
Minimum Expanded Tubing I. D. UOMin
Units per Case25.0
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
