3M Products & Supplies

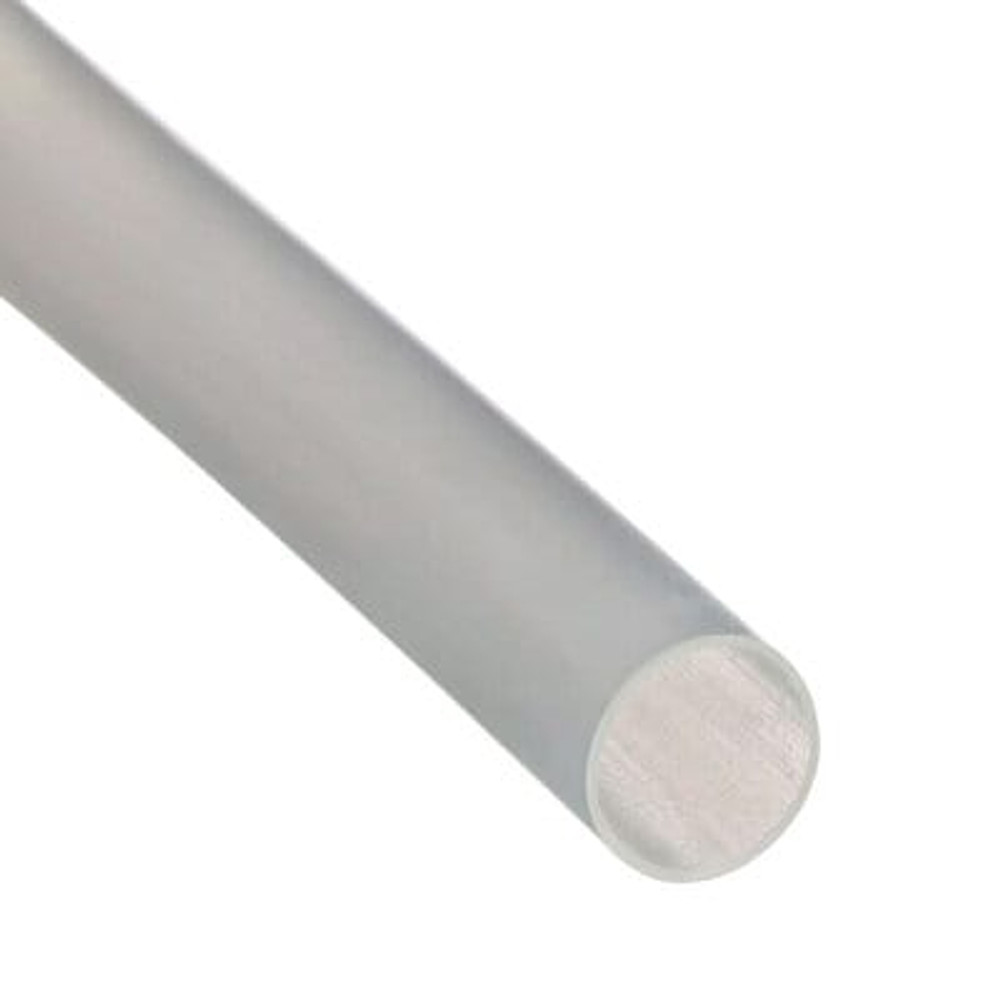

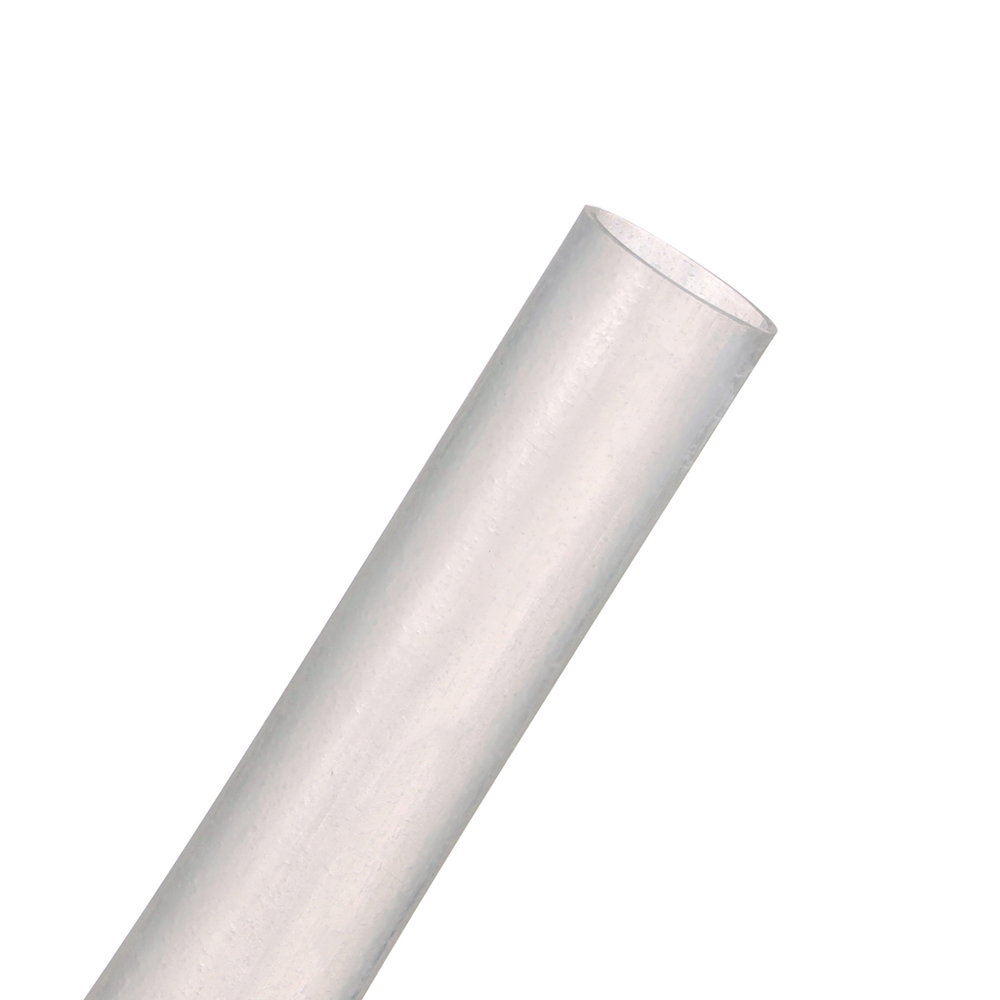

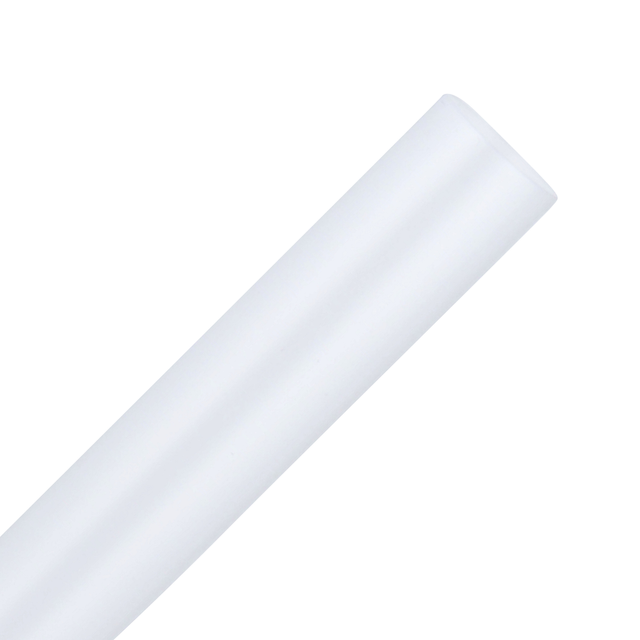

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/8-48"-Clear-125 Pcs, 48 in length sticks, 125 pieces/case - 7000148862

Sold As: 125-Pack
SKU: 7000148862
MPN: 7000148862
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597576
3M ID: 80611600182
5 Digit UPC: 59757
$918.39 ($7.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black flexible polyolefin
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Offers the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric)3.05
UL File NumberE-157227
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric) UOMmm
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialSilicone
Minimum Expanded Tubing I. D.0.375
Inner Diameter After Shrink (Imperial)0.12
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial)0.375
Overall Length (Imperial) UOMin
Units per Case125.0
Product ColorTransparent
Elongation UOM%
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)110.0
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit)230.0
Flame RetardantYes
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
Lubricant TypeGel
Inner Diameter Before Shrink (Metric)9.53
MaterialPolyolefin
Operating Temperature Range (Celsius)-55 °C to 110 °C
