3M Products & Supplies

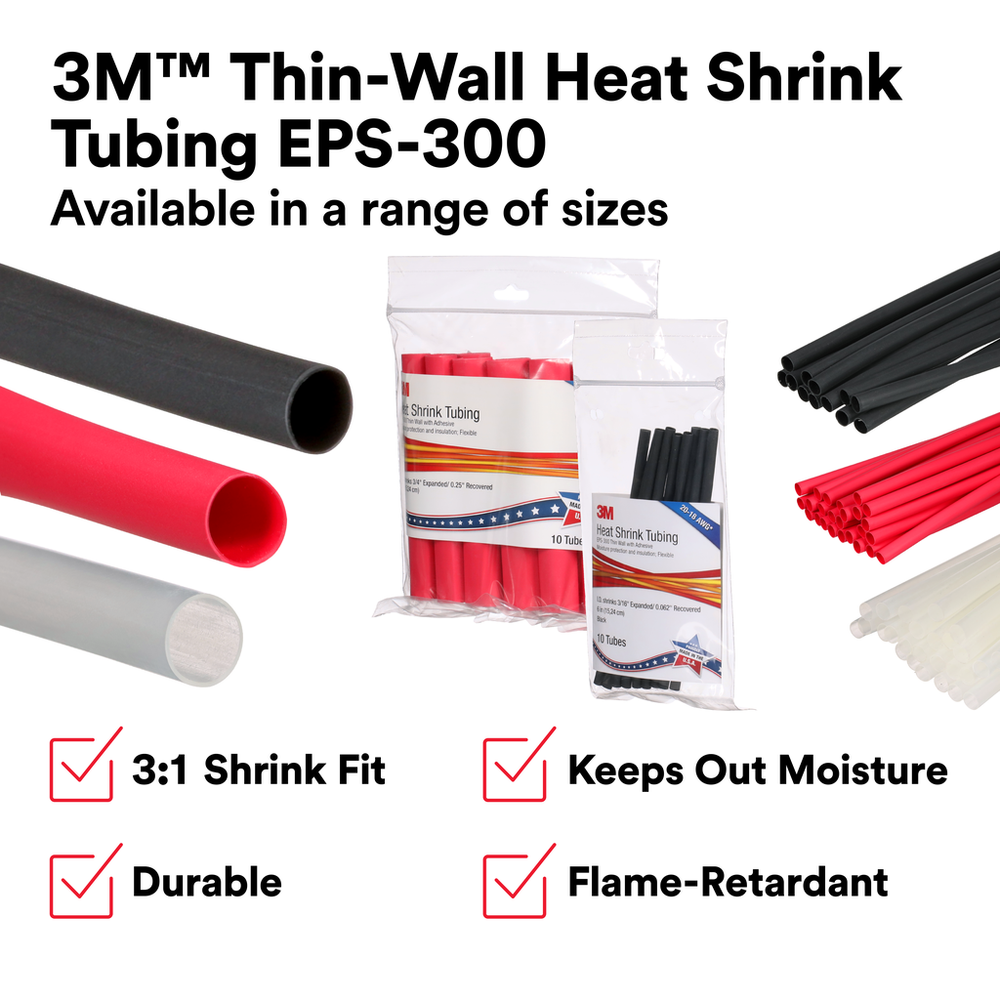

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/8-48"-Black-125 Pcs, 48 in length sticks, 125 pieces/case - 7000133615

Sold As: 125-Pack
SKU: 7000133615
MPN: 7000133615
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599198
3M ID: 80611601800
5 Digit UPC: 59919
$918.39 ($7.35 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

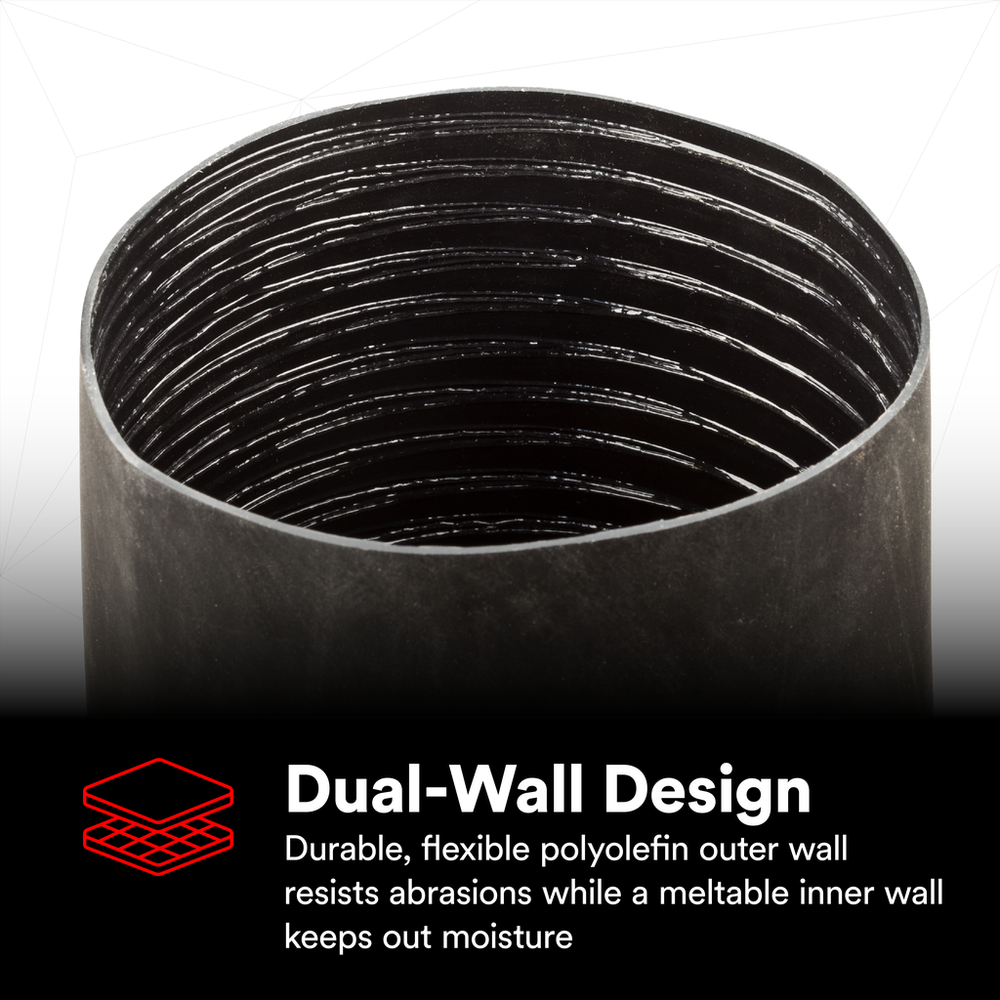

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)9.53
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlack
Inner Diameter After Shrink (Metric) UOMmm
UL File NumberE-157227
Inner Diameter Before Shrink (Imperial)0.375
Maximum Operating Temperature (Celsius) UomDegree
Operating Temperature (Celsius)-55 °C to 110 °C
Elongation UOM%
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D. UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Tubing TypeDual Wall (Adhesive Lined)
Non-CorrosiveYes
Inner Diameter After Shrink (Metric)3.05
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
MaterialPolyolefin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.12
Operating Temperature Range (Celsius)-55 °C to 110 °C
Overall Length (Imperial) UOMin
Adhesive MaterialSilicone
Inner Diameter After Shrink (Imperial) UOMin
Units per Case125.0
Maximum Operating Temperature (Celsius)110.0
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D.0.375
Overall Length (Imperial)48.0
