3M Products & Supplies

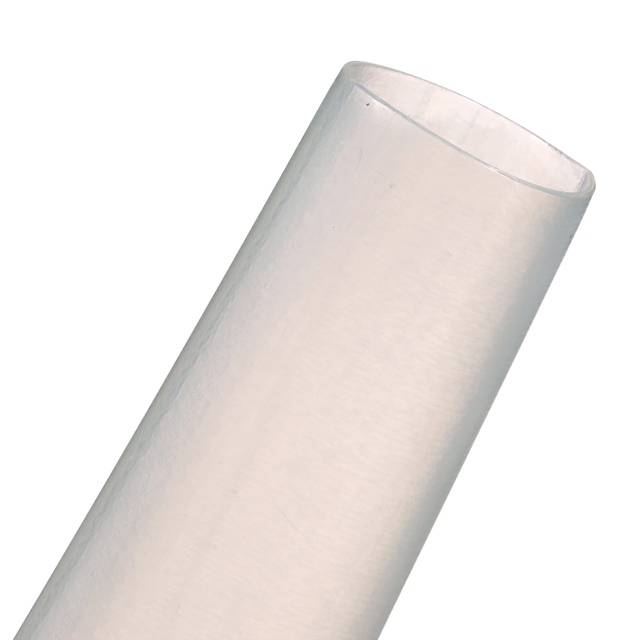

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/4-48"-Clear-200 Pcs, 48 in length sticks, 200 pieces/case - 7010297796

Sold As: 200-Pack
SKU: 7010297796
MPN: 7010297796
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597569
3M ID: 80611600174
5 Digit UPC: 59756
$1,181.76 ($5.91 / Count)
Hurry up! Current stock:

Product Description

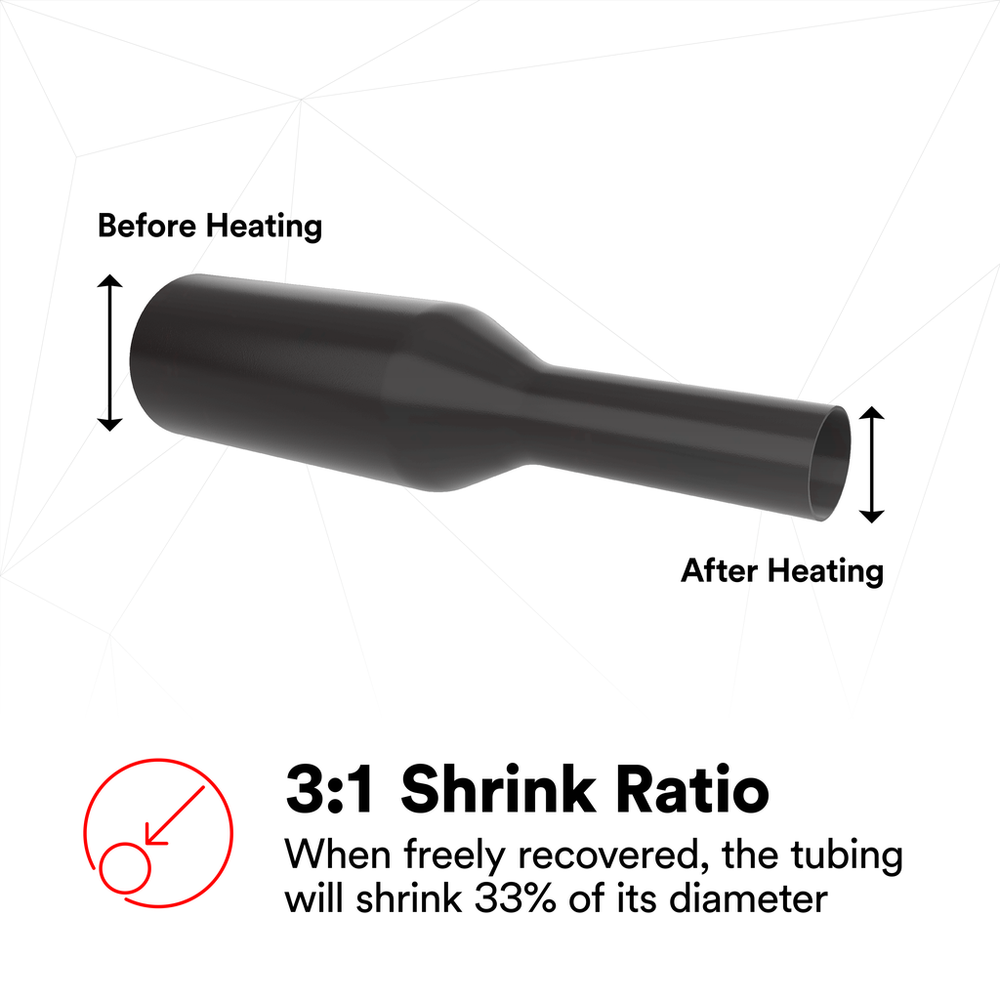

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Flame-retardant tubing is rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Shrink Ratio3:1
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric)3.18
Units per Case200.0
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric) UOMmm
Product ColorTransparent
Operating Temperature (Celsius)-55 °C to 110 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
Adhesive MaterialSilicone
Minimum Expanded Tubing I. D.0.25
Maximum Operating Temperature (Fahrenheit)230.0
Flame RetardantYes
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial)0.25
MaterialPolyolefin
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric)6.35
Inner Diameter After Shrink (Imperial)0.125
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Overall Length (Imperial)48.0
