3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/8-48"-Black-250 Pcs, 48 in length sticks, 250 pieces/case - 7100066097

Sold As: 250-Pack
SKU: 7100066097
MPN: 7100066097
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128597682
3M ID: 80611600299
5 Digit UPC: 59768
$1,417.93 ($5.67 / Count)
Hurry up! Current stock:

Product Description

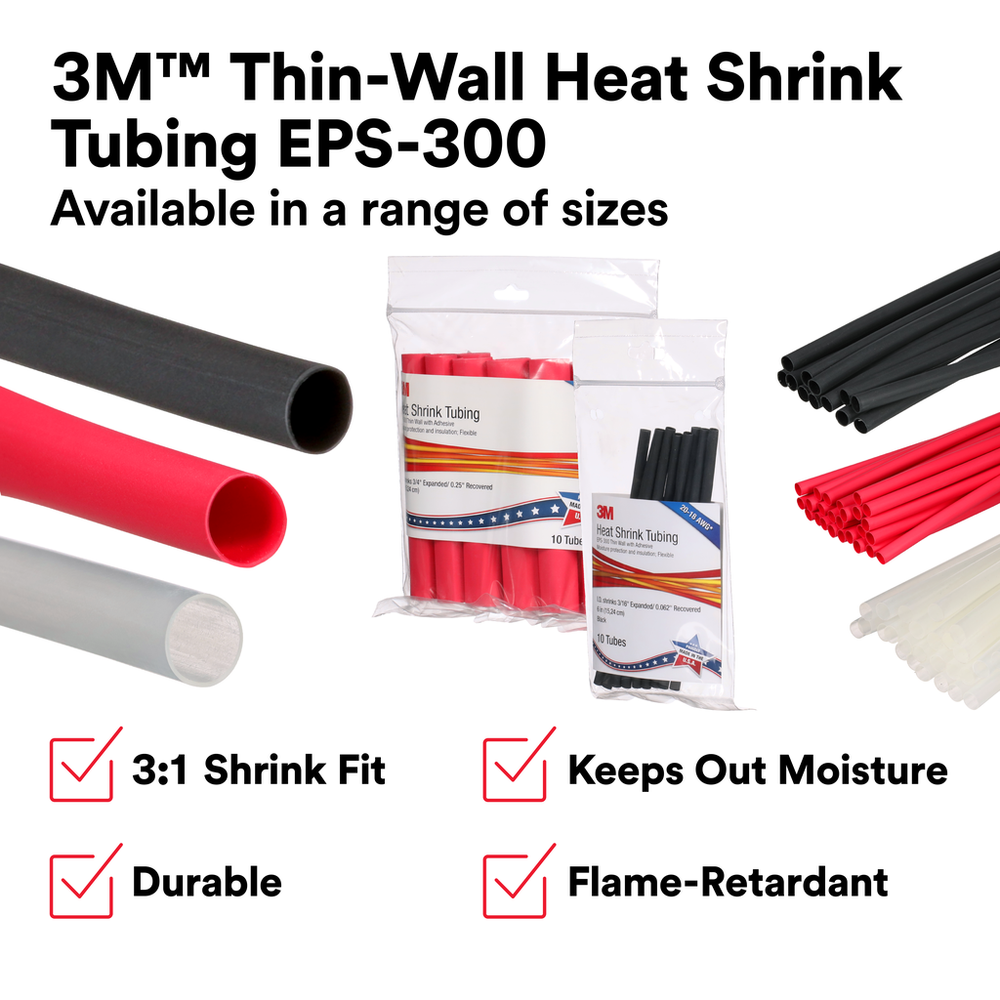

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Made of black flexible polyolefin

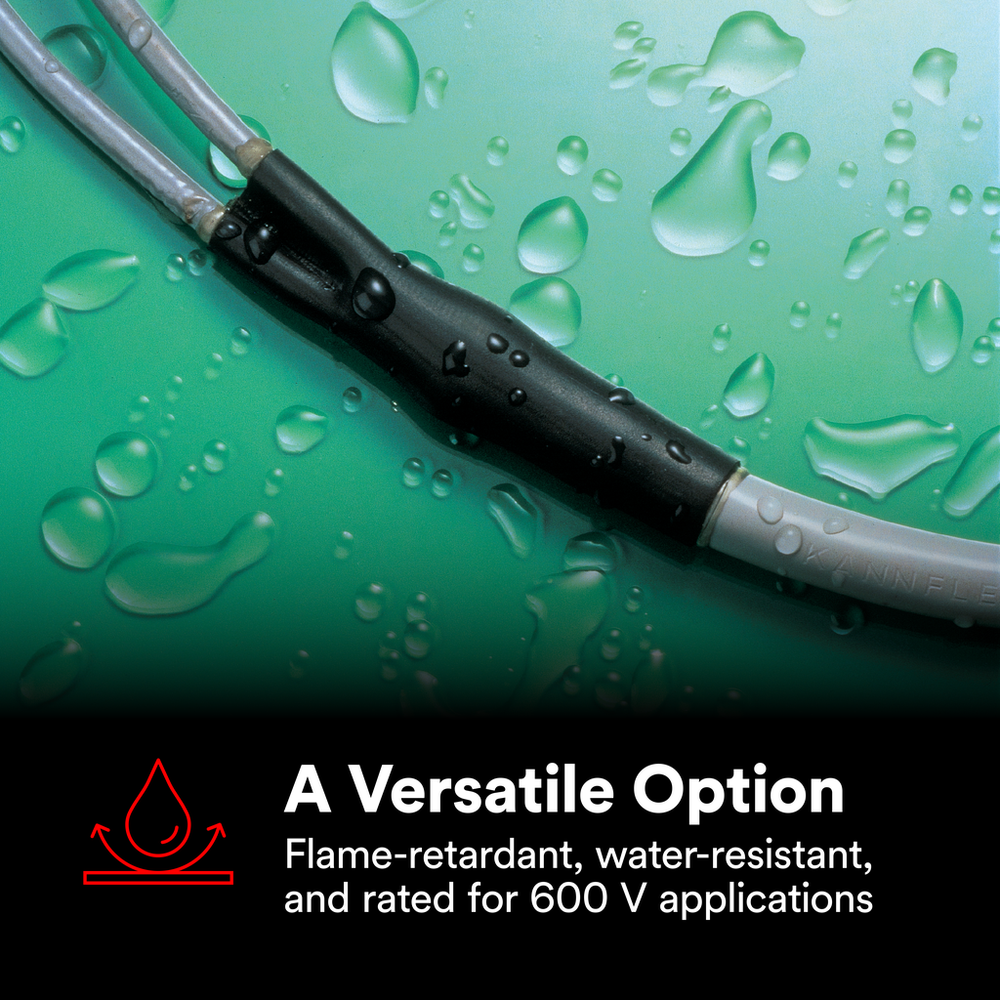

  • Flame-retardant tubing is rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Non-CorrosiveYes
Elongation UOM%
Operating Temperature Range (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.04
Maximum Operating Temperature (Fahrenheit)230.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Imperial)0.125
Adhesive MaterialSilicone
Operating Temperature (Celsius)-55 °C to 110 °C

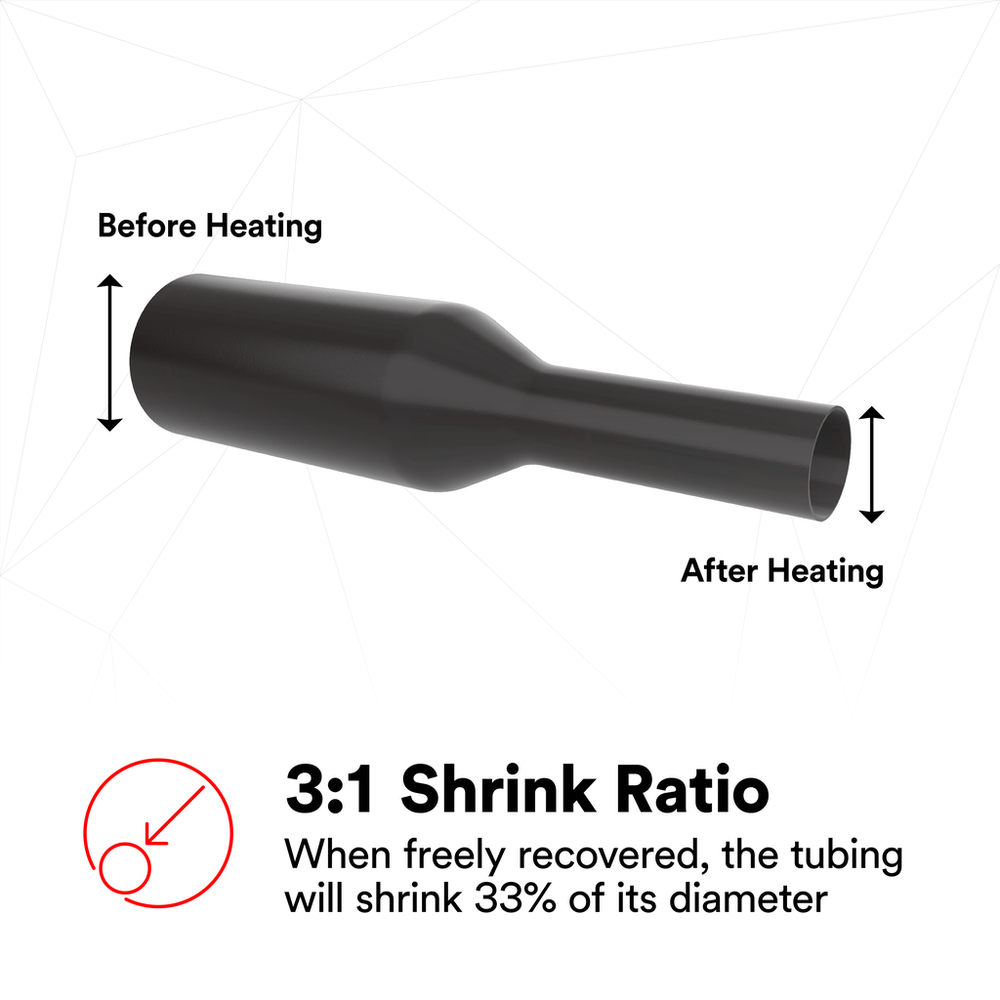

Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.0.125
Inner Diameter After Shrink (Metric)1.02
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMin
MaterialPolyolefin
Tubing TypeDual Wall (Adhesive Lined)
Overall Length (Imperial)48.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Product ColorBlack
Units per Case250.0

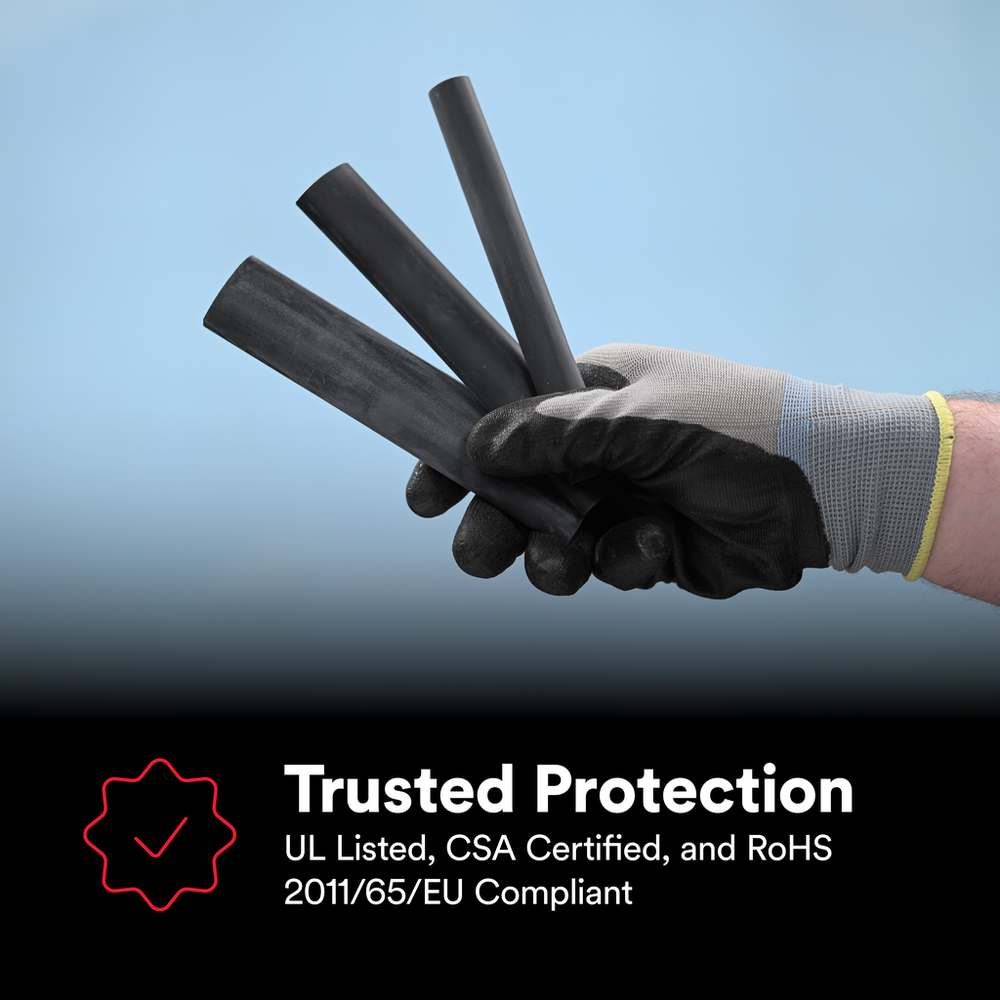

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)110.0
Flame RetardantYes
Inner Diameter Before Shrink (Metric)3.18
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
