3M Products & Supplies

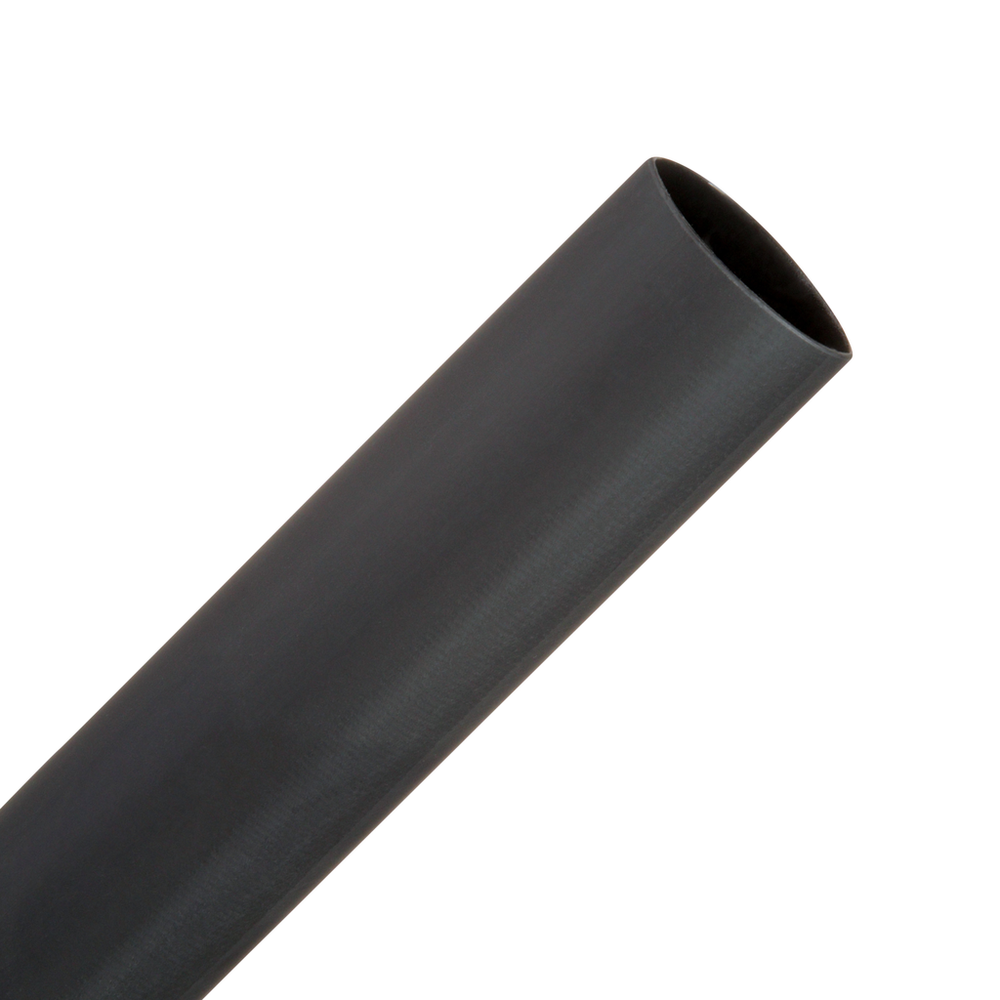

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-6"-Black, 6 in length pieces, 10 pieces/pack, 10 packs/case - 7100036089

SKU: 7100036089
MPN: 7100036089
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50051128600653
3M ID: 80611603277
5 Digit UPC: 60065
$754.40 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin

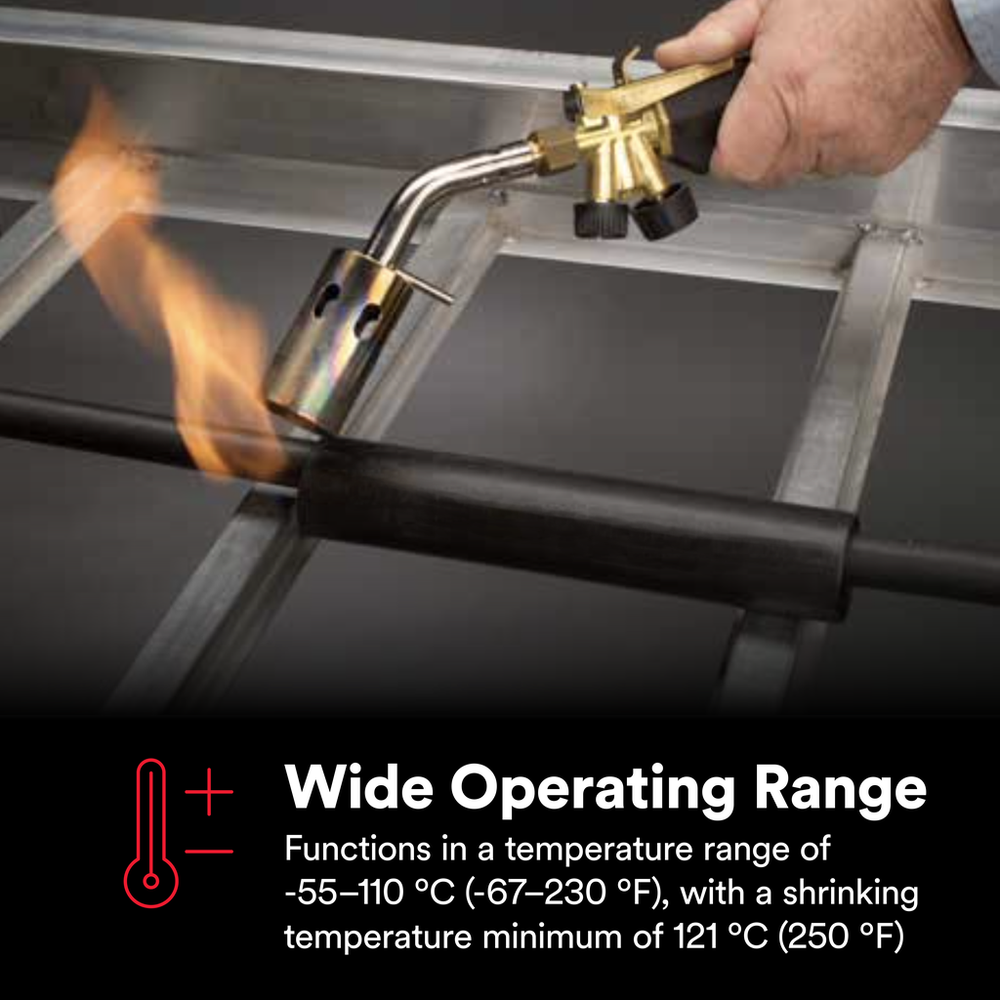

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

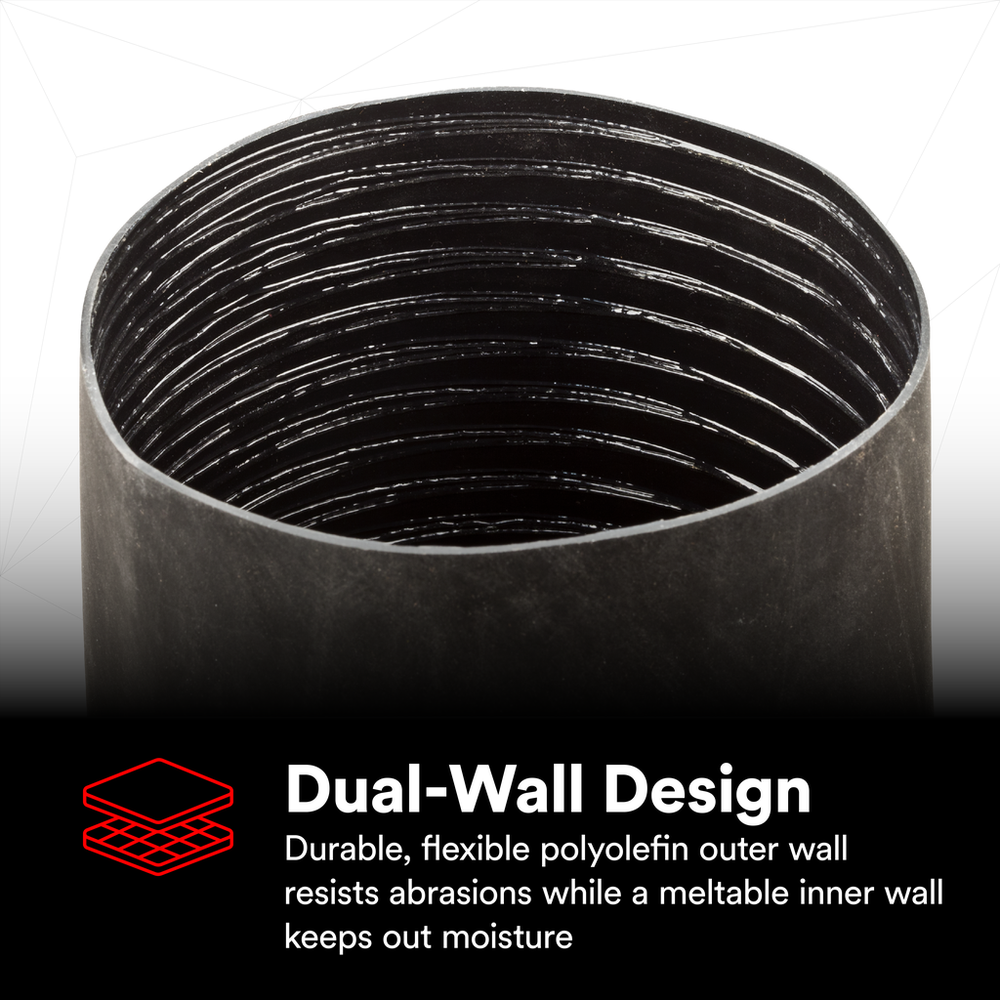

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Tubing TypeDual Wall (Adhesive Lined)
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-157227

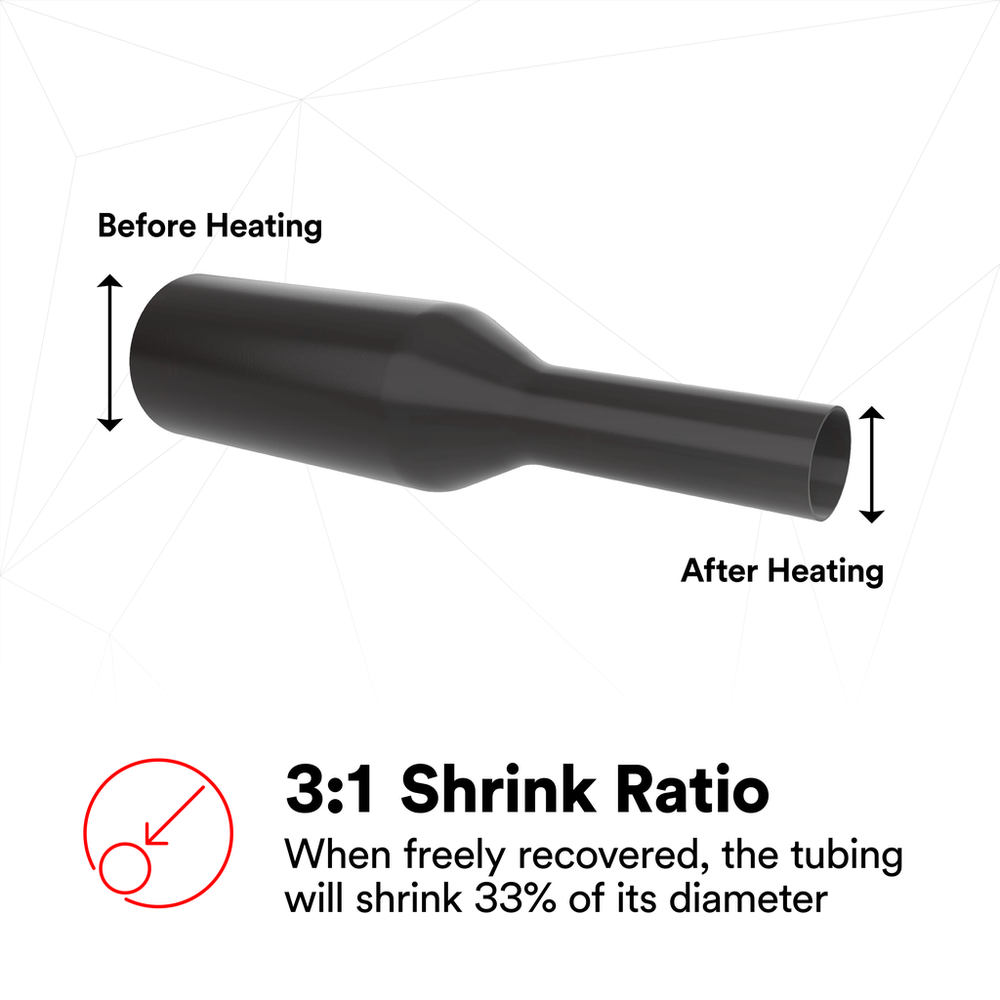

Shrink Ratio3:1
Adhesive MaterialSilicone
Overall Length (Metric)152.0
Operating Temperature (Celsius)-55 °C to 110 °C
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Units per Case10.0
MaterialPolyolefin
Inner Diameter After Shrink (Imperial)0.32
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter After Shrink (Metric)8.13
Maximum Operating Temperature (Celsius)110.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric)25.4
Overall Length (Imperial) UOMin
Overall Length (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Fahrenheit)230.0
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Units per Box10
Product ColorBlack
Overall Length (Imperial)6.0
Maximum Operating Temperature (Celsius) UomDegree
Non-CorrosiveYes
Minimum Expanded Tubing I. D.1.0
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantYes
Inner Diameter After Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.0
