3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1-6"-Red, 6 in length pieces, 10 pieces/pack, 10 Packs/Case - 7010398980

Sold As: 10-Pack
SKU: 7010398980
MPN: 7010398980
For an accurate lead time please contact us
UPC: 00051128600665
3M ID: 80611603285
5 Digit UPC: 60066
$719.60 ($71.96 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

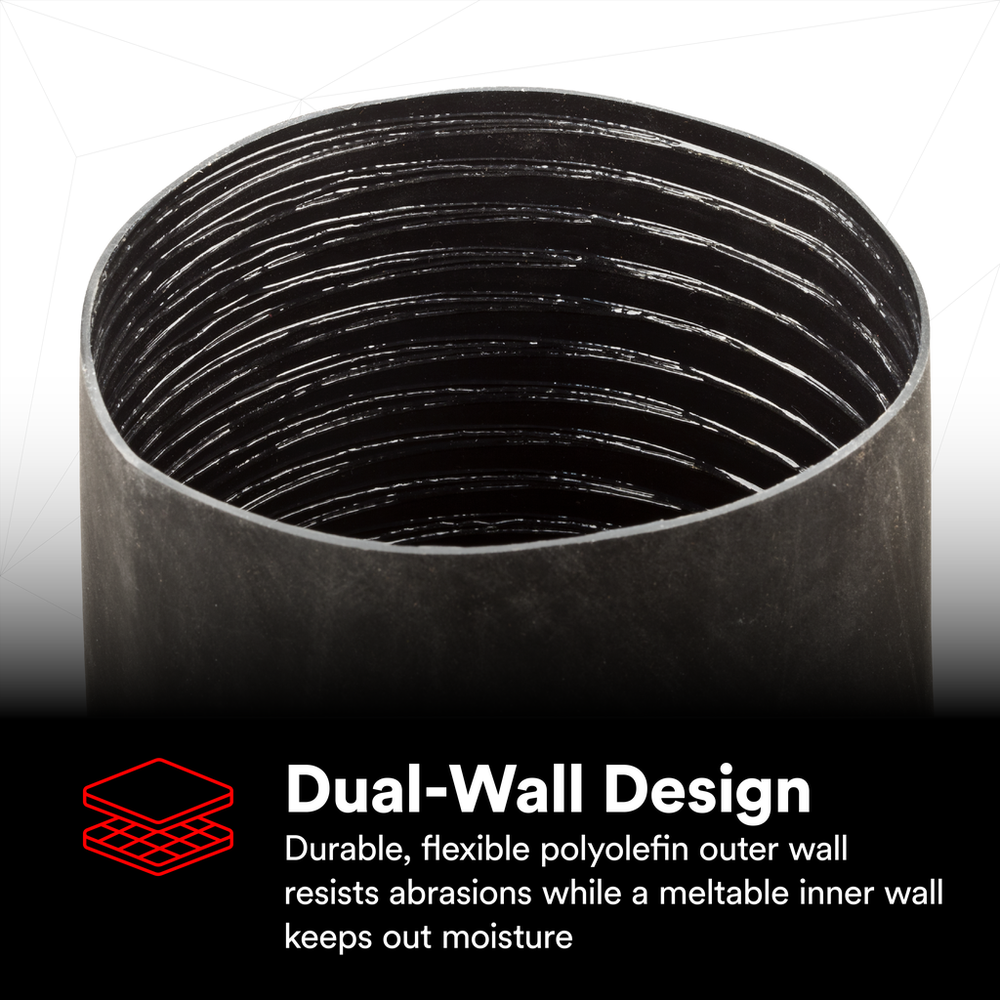

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.32
Overall Length (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Fahrenheit)230.0

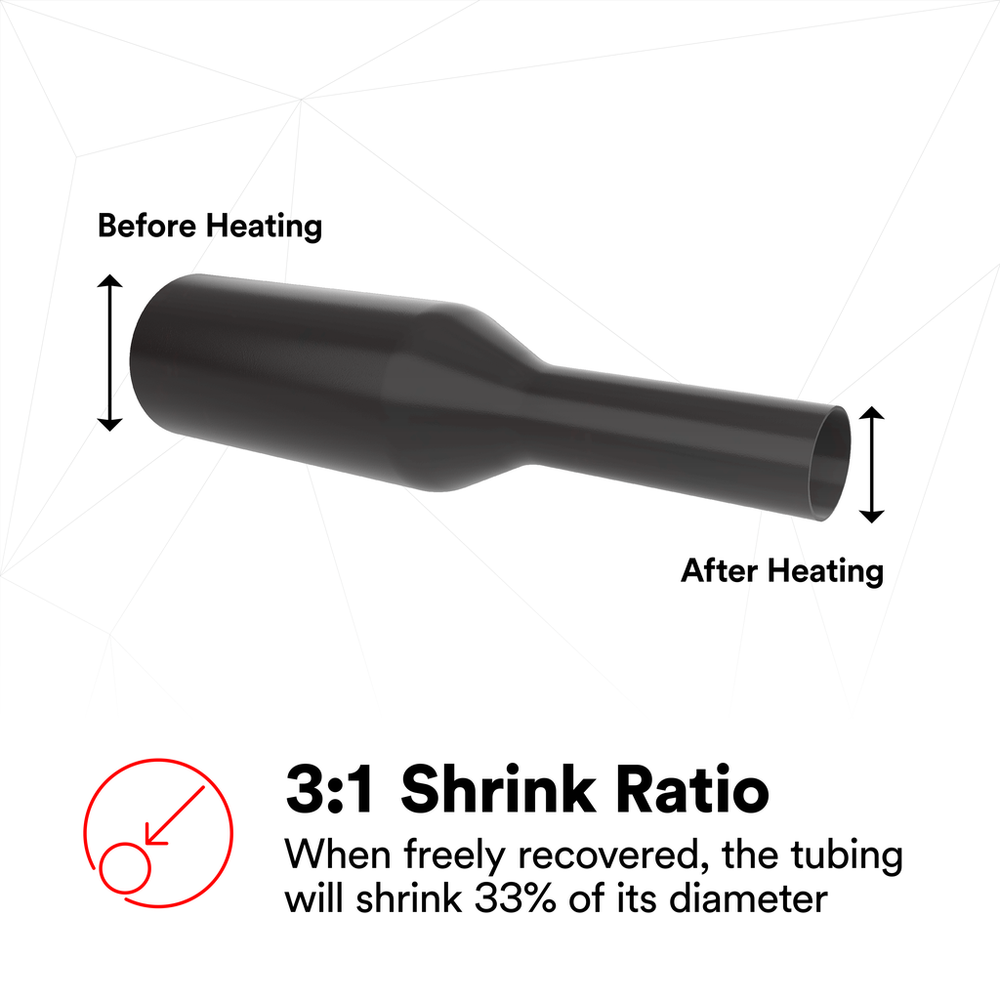

Shrink Ratio3:1
Inner Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial)6.0
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)25.4
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
Adhesive MaterialSilicone
Product ColorRed
Units per Case10.0
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric)8.13
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Imperial)1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Imperial) UOMin
