3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-6"-Red, 6 in length sticks, 10 pieces/pack, 10 packs/case - 7000133686

Sold As: 10-Pack
SKU: 7000133686
MPN: 7000133686
For an accurate lead time please contact us
UPC: 00051128600696
3M ID: 80611603319
5 Digit UPC: 60069
$503.43 ($50.34 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

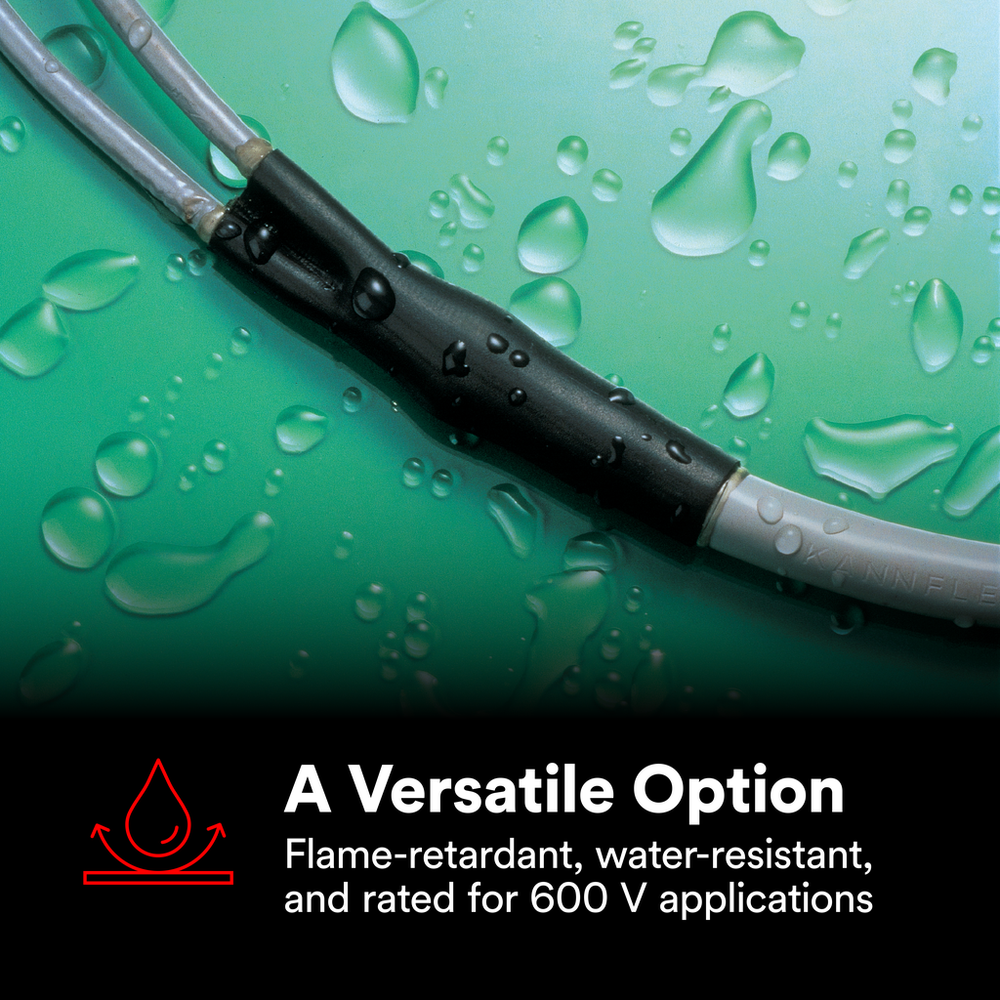

  • Flame-retardant tubing is rated for 600V applications

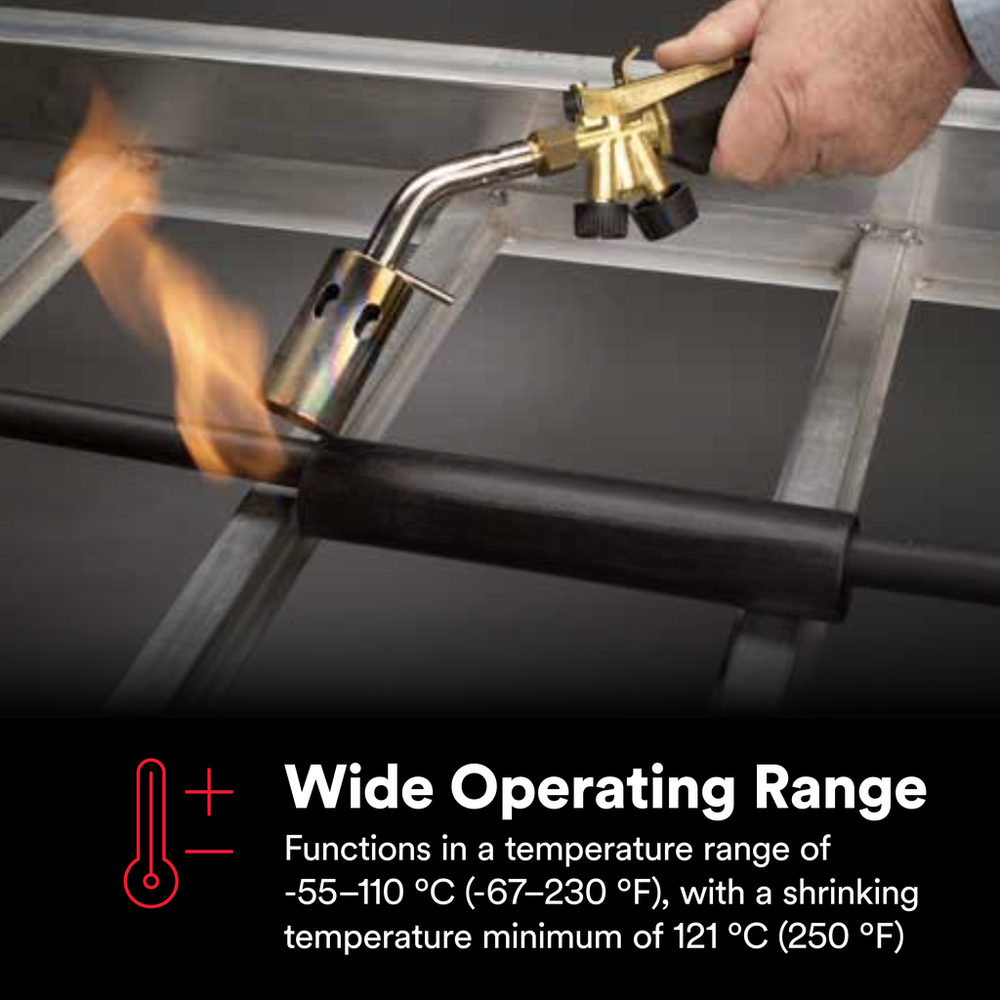

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Maximum Operating Temperature (Celsius) UomDegree
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)0.75
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Shrink Ratio3:1
Flame RetardantYes
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Product ColorRed
Inner Diameter After Shrink (Metric) UOMmm
Overall Length (Imperial)6.0
Units per Case10.0
UL File NumberE-157227
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)19.05
Operating Temperature Range (Celsius)-55 °C to 110 °C
Tubing TypeDual Wall (Adhesive Lined)
Adhesive MaterialSilicone
Inner Diameter After Shrink (Imperial)0.25
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Units per Box10
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.0.75
Non-CorrosiveYes
Operating Temperature (Celsius)-55 °C to 110 °C
Overall Length (Metric)152.0
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric)6.35
Elongation UOM%
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
