3M Products & Supplies

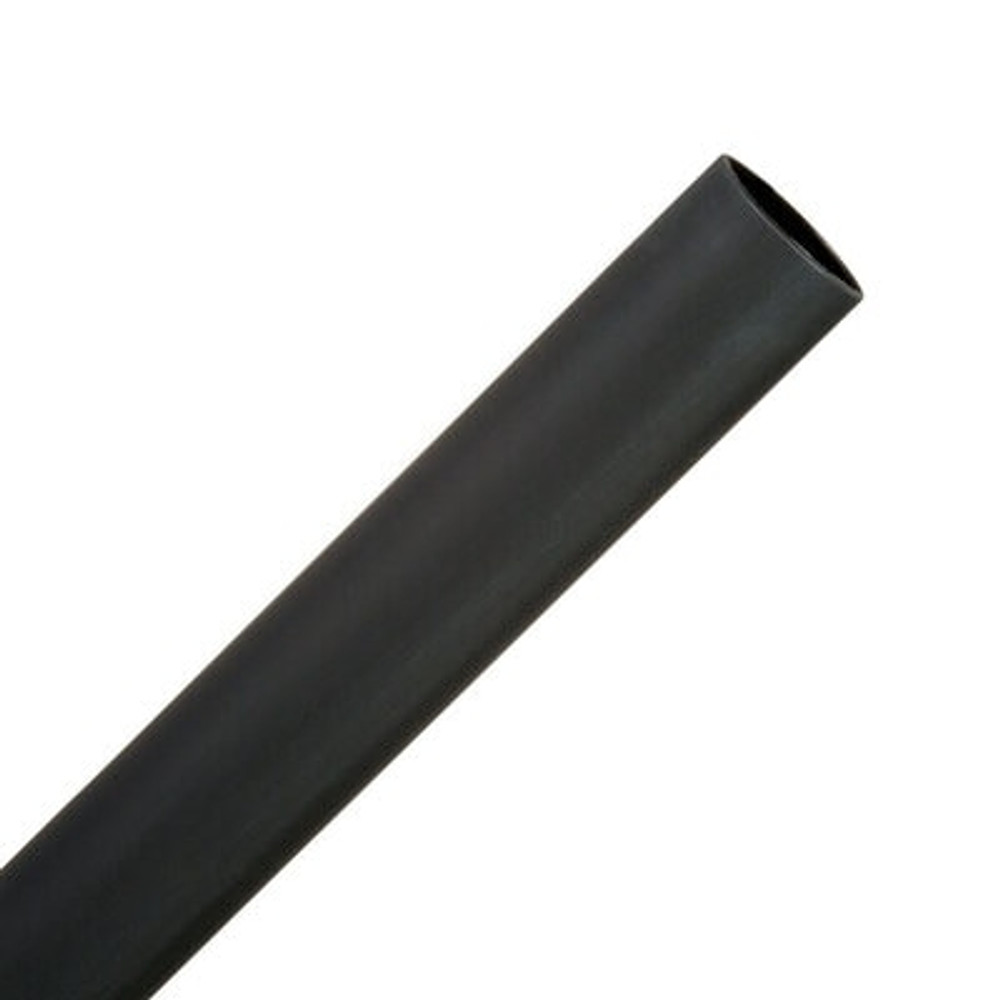

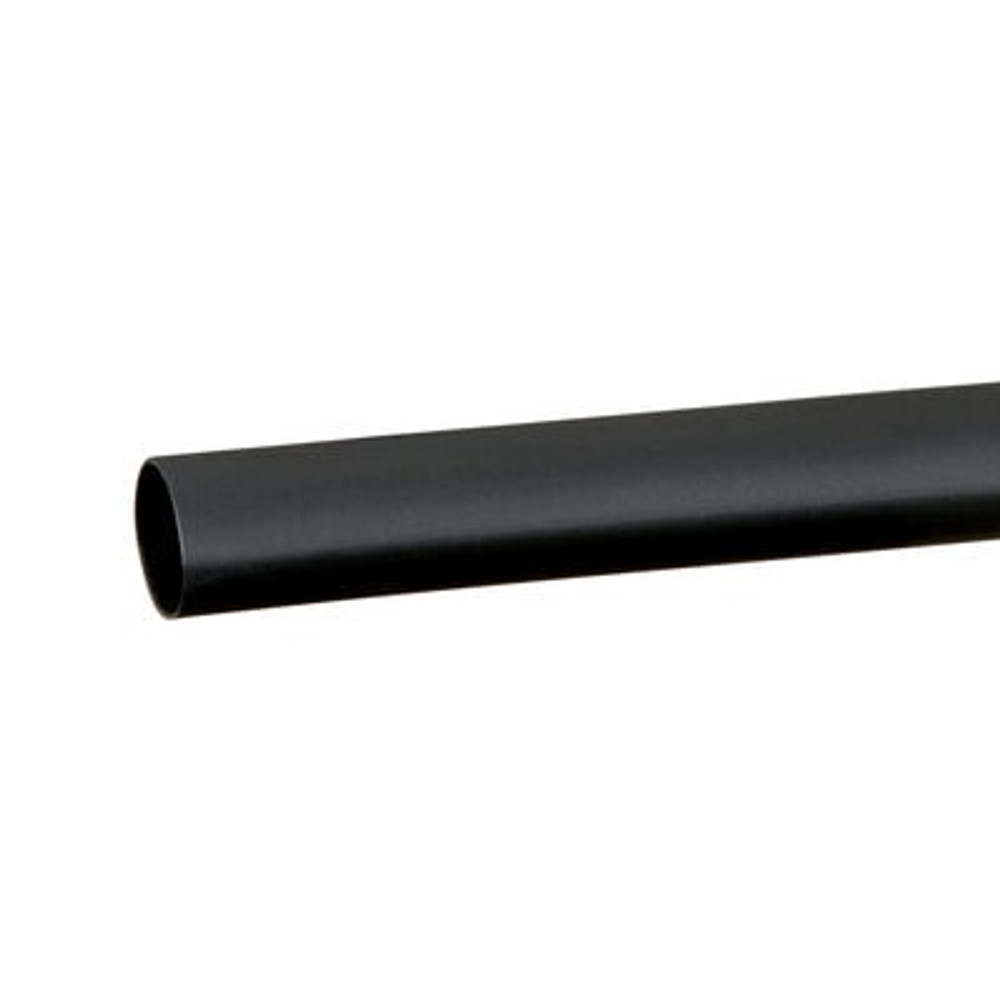

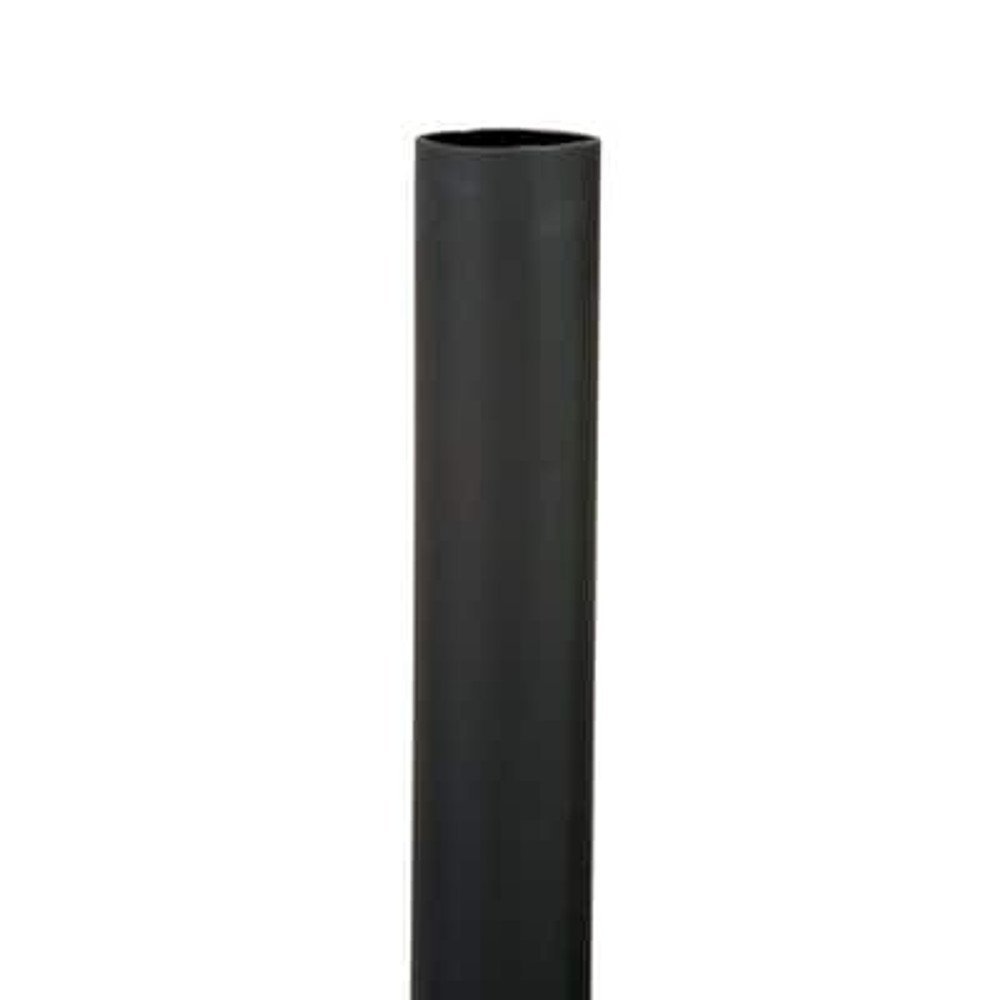

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 3/4-6"-Black, 6 in length sticks, 10 pieces/pack, 10 packs/case - 7000133685

Sold As: 10-Pack
SKU: 7000133685
MPN: 7000133685
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600689
3M ID: 80611603301
5 Digit UPC: 60068
$408.63 ($40.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Made of black flexible polyolefin
  • Flame-retardant tubing is rated for 600V applications
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Offers the advantage of integral, adhesive-lined construction
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.25
Units per Box10
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius)110.0
Product ColorBlack
Inner Diameter After Shrink (Metric)6.35
Flame RetardantYes
MaterialPolyolefin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Operating Temperature Range (Celsius)-55 °C to 110 °C
Non-CorrosiveYes
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric)152.0
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.75
Overall Length (Imperial)6.0
Adhesive MaterialSilicone
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Units per Case10.0
Elongation UOM%
Overall Length (Metric) UOMmm
Tubing TypeDual Wall (Adhesive Lined)
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)19.05
Operating Temperature (Celsius)-55 °C to 110 °C
Shrink Ratio3:1
Minimum Expanded Tubing I. D.0.75
UL File NumberE-157227
