3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/4-6"-Black, 6 in length sticks, 10 pieces/pack, 10 packs/case - 7010350253

Sold As: 10-Pack
SKU: 7010350253
MPN: 7010350253
For an accurate lead time please contact us
UPC: 00051128600641
3M ID: 80611603269
5 Digit UPC: 60064
$293.31 ($29.33 / Count)
Hurry up! Current stock:

Product Description

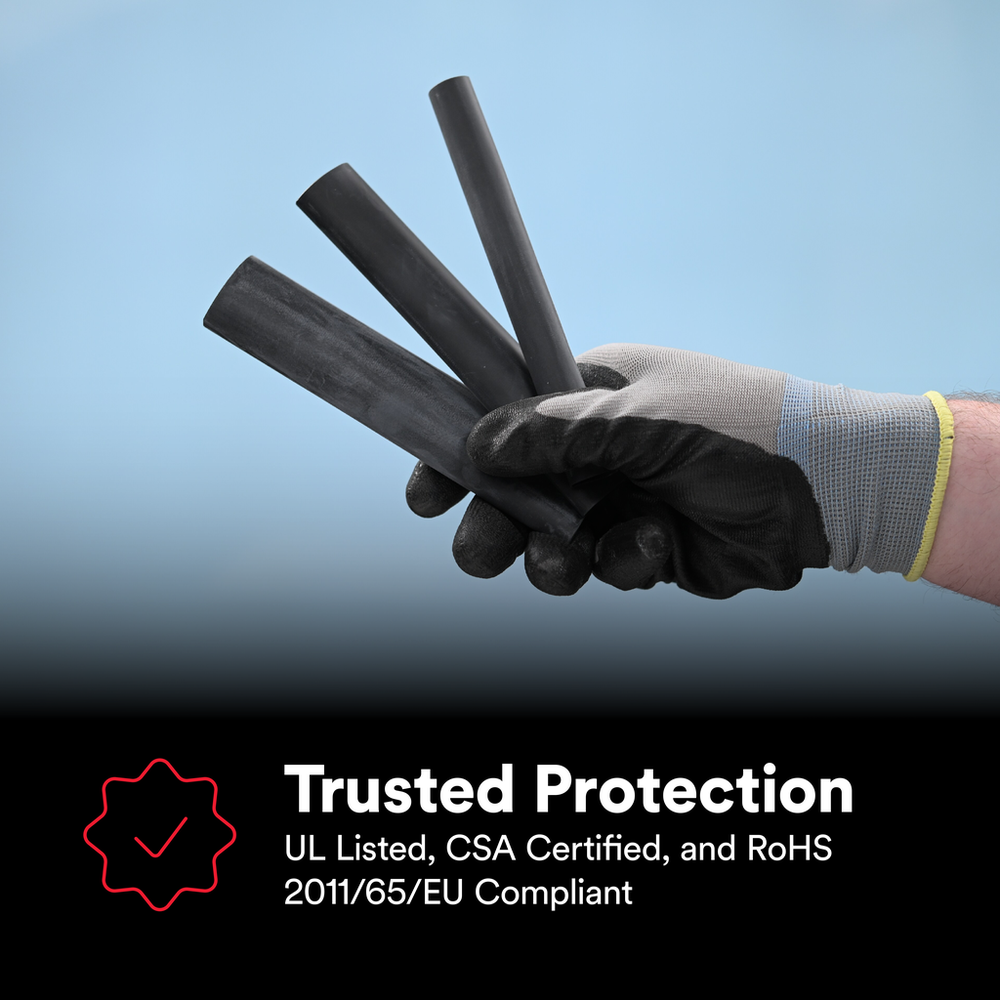

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers the advantage of integral, adhesive-lined construction
  • Flame-retardant tubing is rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric) UOMmm
Shrink Ratio3:1
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)3.18
Overall Length (Imperial) UOMin
Operating Temperature (Celsius)-55 °C to 110 °C
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter Before Shrink (Imperial)0.25
Inner Diameter After Shrink (Imperial)0.125
Inner Diameter Before Shrink (Metric)6.35
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.0.25
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial)6.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorBlack
Units per Case10.0
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Flame RetardantYes
Adhesive MaterialSilicone
Minimum Expanded Tubing I. D. UOMin
Non-CorrosiveYes
