3M Products & Supplies

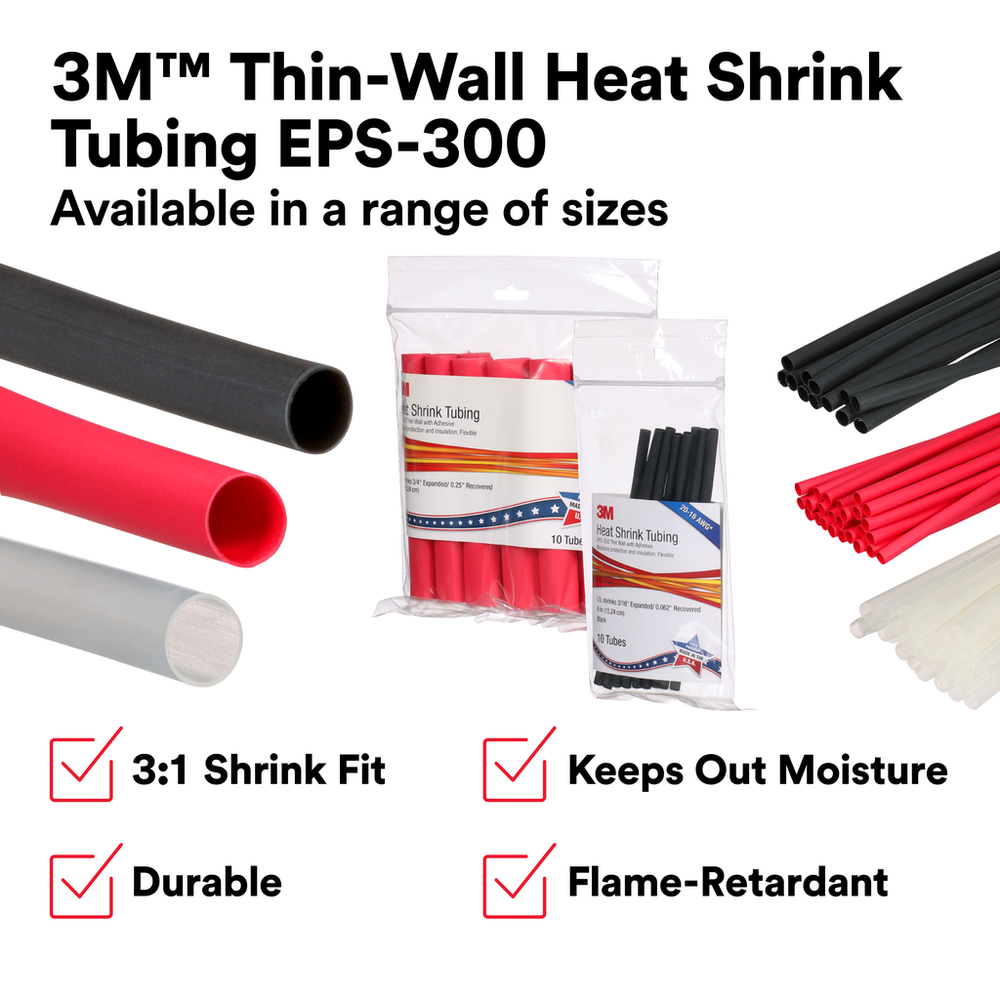

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, 1/2-6"-Red, 6 in length sticks, 10 pieces/pack, 10 packs/case - 7010398879

Sold As: 10-Pack
SKU: 7010398879
MPN: 7010398879
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600634
3M ID: 80611603251
5 Digit UPC: 60063
$411.49 ($41.15 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Made of black flexible polyolefin
  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts
  • Flame-retardant tubing is rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)12.7
Overall Length (Imperial)6.0
Adhesive MaterialSilicone
Inner Diameter After Shrink (Metric)4.06
Flame RetardantYes
Tubing TypeDual Wall (Adhesive Lined)
Operating Temperature (Celsius)-55 °C to 110 °C
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial)0.16
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Units per Case10.0
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Minimum Expanded Tubing I. D. UOMin
Shrink Ratio3:1
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.0.5
Overall Length (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)110.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Imperial)0.5
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)230.0
Product ColorRed
