3M Products & Supplies

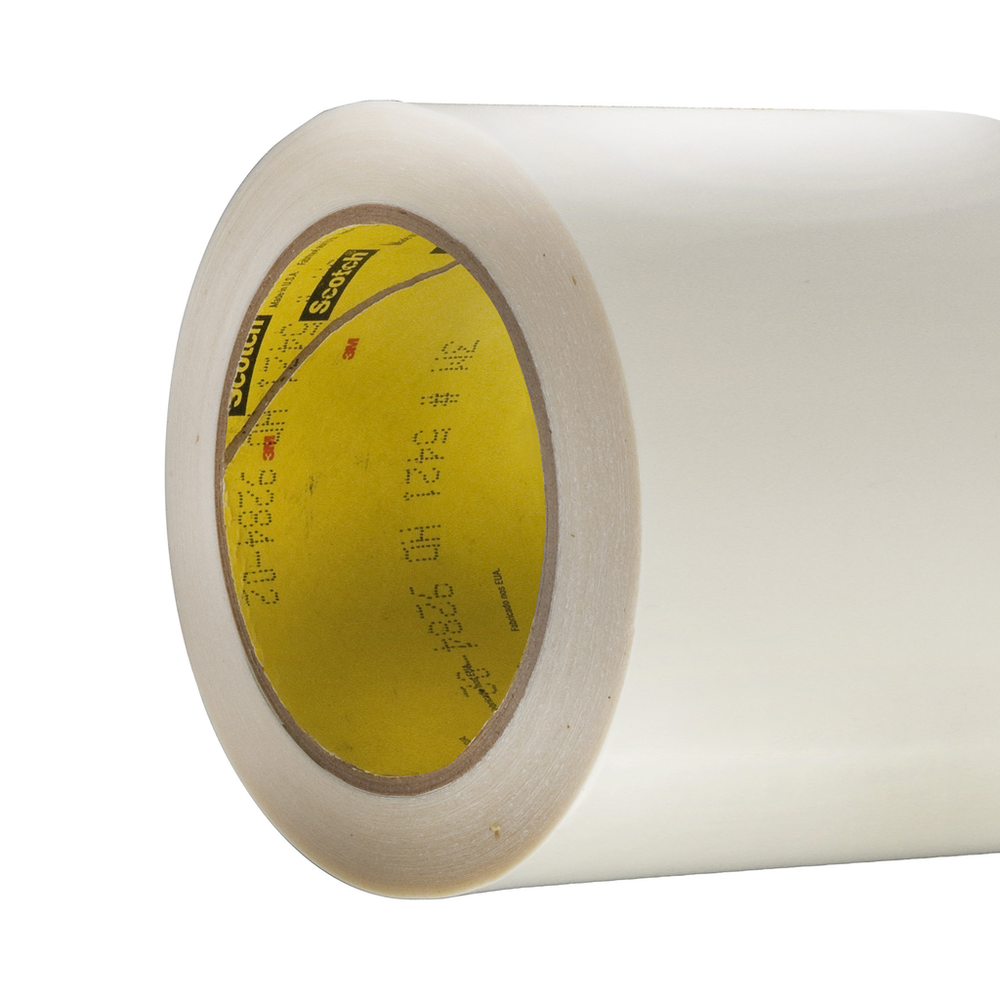

3M™ UHMW Film Tape 5421, Transparent, 14 in x 18 yd, 6.7 mil, 1 Roll/Case - 7010372811

SKU: 7010372811
MPN: 7010372811
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200305030
3M ID: 70006213113
5 Digit UPC: 30503
$1,315.42 each
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Used in applications where lubrication is not possible because of contamination
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Low coefficient of friction for “slip plane” effect between surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.17
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)225.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Primary Liner60# Densified Kraft, Silicone Treated Paper
ApplicationGeneral Industrial
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Adhesion Strength (Metric)28.0
Product ColorTransparent
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit)-30.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)16.45
Minimum Operating Temperature (Celsius)-34.0
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case1.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialPolyethylene
Adhesive TypeRubber
Backing (Carrier) Thickness (Imperial)5.0
Tensile Strength (Metric)796.0
Total Tape Thickness without Liner (Imperial)6.7
Adhesion Strength26.0
Backing (Carrier) Thickness (Imperial) UOMmil
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Length (Imperial)18.0
Maximum Operating Temperature (Celsius)107.0
Elongation at Break440%
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)30.0
Overall Width (Metric)355.6
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Imperial)14.0
