3M Products & Supplies

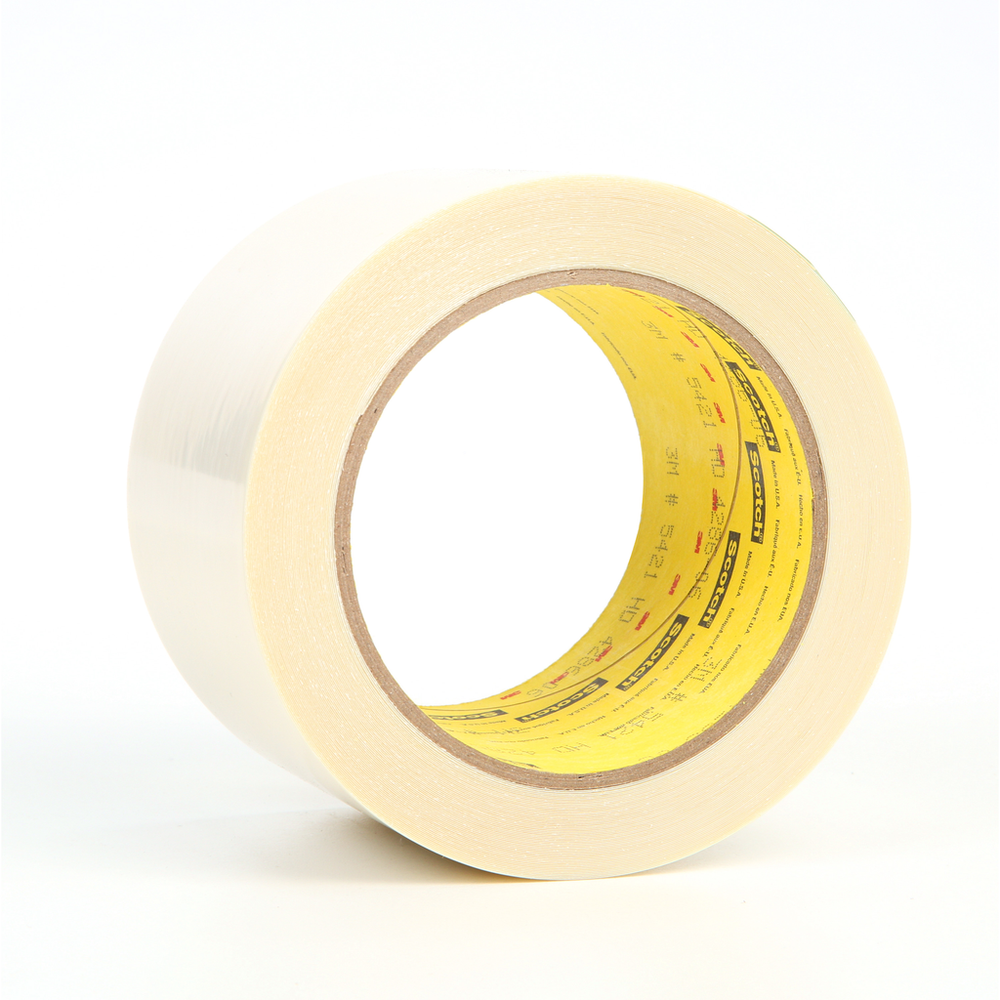

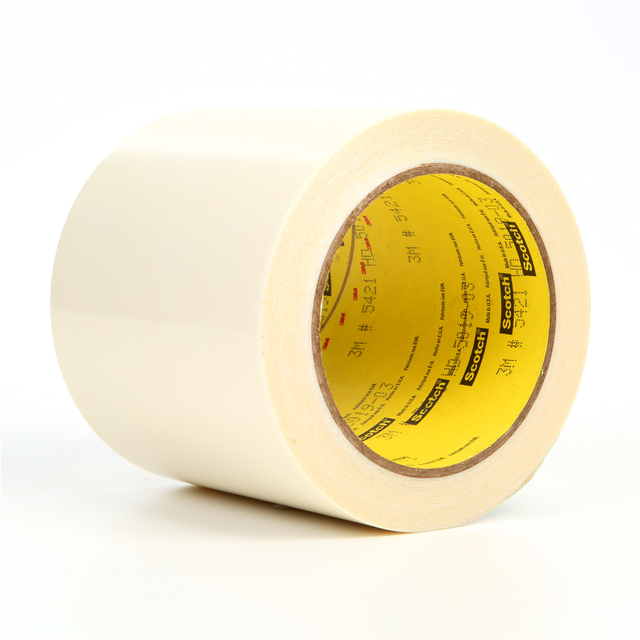

3M™ UHMW Film Tape 5421, Transparent, 3 in x 18 yd, 6.7 mil, 3 Rolls/Case - 7000125202

Sold As: 3-Pack
SKU: 7000125202
MPN: 7000125202
For an accurate lead time please contact us
UPC: 00021200119897
3M ID: 70016040373
5 Digit UPC: 11989
$845.62 ($281.87 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Used in applications where lubrication is not possible because of contamination
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Translucent, abrasion resistant backing helps protect surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Metric)0.13
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesion Strength26.0
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial)6.7
Adhesion Strength (Metric)28.0
Overall Width (Metric)7.6
Overall Width (Imperial)3.0
Maximum Operating Temperature (Fahrenheit)225.0
Backing (Carrier) Thickness (Imperial)5.0
Tensile Strength (Imperial) UOMlb/in
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Elongation at Break440%
Primary Liner60# Densified Kraft, Silicone Treated Paper
Total Tape Thickness without Liner (Metric)0.17
ApplicationGeneral Industrial
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric)796.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial)30.0
Overall Length (Metric)16.5
Overall Width (Metric) UOMcm
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Minimum Operating Temperature (Fahrenheit)-30.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius)-34.0
Backing (Carrier) Thickness (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Backing (Carrier) MaterialPolyethylene
Adhesive TypeRubber
Maximum Operating Temperature (Celsius)107.0
Units per Case3.0
Overall Length (Imperial)18.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Overall Length (Metric) UOMm
