3M Products & Supplies

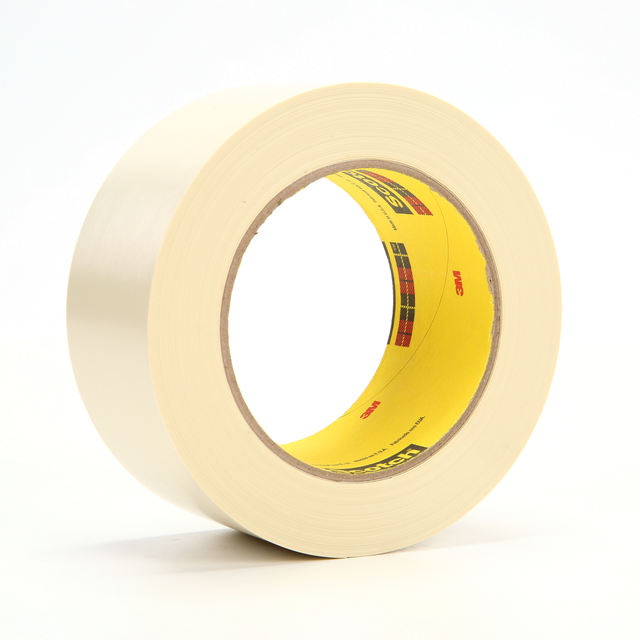

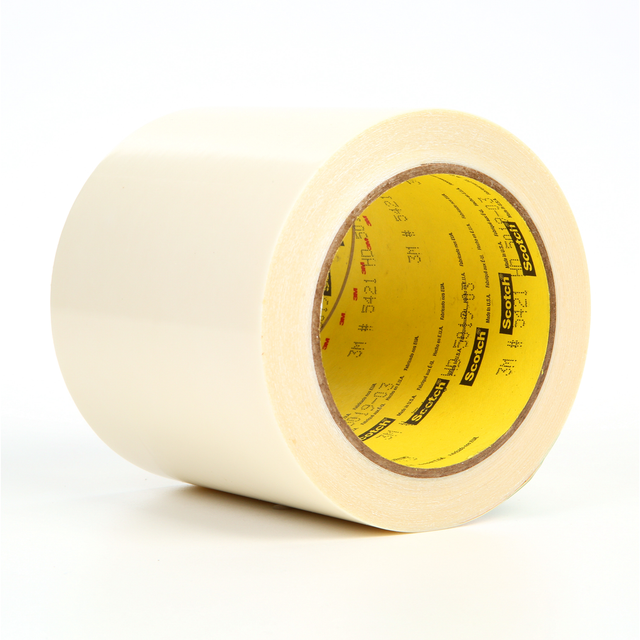

3M™ UHMW Film Tape 5421, Transparent, 3/4 in x 18 yd, 6.7 mil, 12 Roll/Case - 7000050074

Sold As: 12-Pack
SKU: 7000050074
MPN: 7000050074
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200119873
3M ID: 70016040290
5 Digit UPC: 11987
$898.48 ($74.87 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Used in applications where lubrication is not possible because of contamination
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Translucent, abrasion resistant backing helps protect surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-30.0
Elongation at Break440%
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius)-34.0
Backing (Carrier) Thickness (Imperial)5.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Metric)796.0
Units per Case12.0
Tensile Strength (Imperial)30.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric)16.5
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength26.0
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)6.7
Primary Liner60# Densified Kraft, Silicone Treated Paper
Overall Width (Metric)19.0
Overall Length (Imperial)18.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Adhesive TypeRubber
Total Tape Thickness without Liner (Metric)0.17
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)225.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)0.8
Product ColorTransparent
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialPolyethylene
ApplicationGeneral Industrial
Adhesion Strength (Metric) UOMN/100mm
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)28.0
