3M Products & Supplies

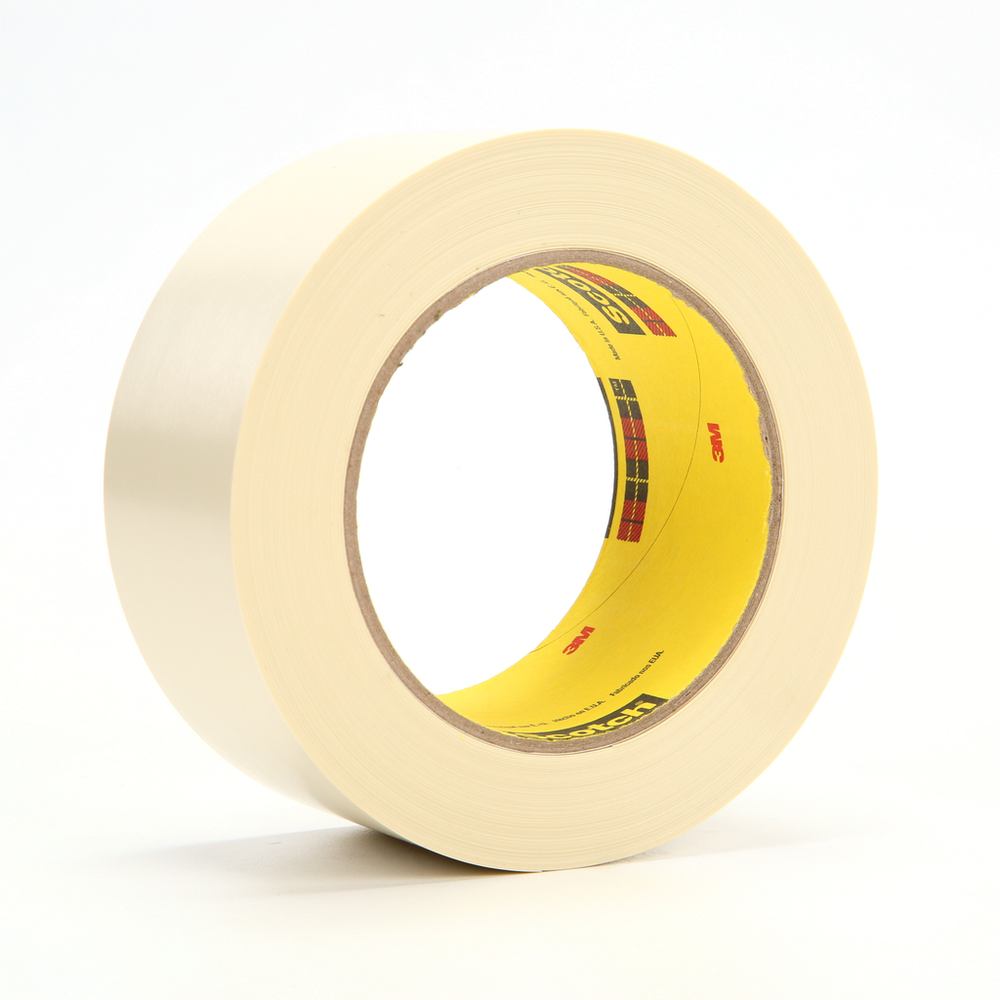

3M™ UHMW Film Tape 5421, Transparent, 2 in x 36 yd, 6.7 mil, 12 Roll/Case - 7010380285

Sold As: 12-Pack
SKU: 7010380285
MPN: 7010380285
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200302640
3M ID: 70016048996
5 Digit UPC: 30264
$4,510.02 ($375.84 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Used in applications where lubrication is not possible because of contamination
  • Low coefficient of friction for “slip plane” effect between surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.17
Adhesion Strength26.0
Backing (Carrier) Thickness (Metric)0.13
Minimum Operating Temperature (Fahrenheit)-30.0
Tensile Strength (Metric) UOMN/100mm
Product ColorTransparent
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)6.7
Tensile Strength (Metric)796.0
Overall Width (Metric)50.8
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
ApplicationGeneral Industrial
Adhesion Strength (Metric)28.0
Backing (Carrier) MaterialPolyethylene
Maximum Operating Temperature (Celsius)107.0
Total Tape Thickness without Liner (Metric) UOMmm
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Length (Metric)32.91
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)5.0
Tensile Strength (Imperial)30.0
Maximum Operating Temperature (Fahrenheit)225.0
Overall Width (Imperial)2.0
Units per Case12.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Adhesive TypeRubber
Elongation at Break440%
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner60# Densified Kraft, Silicone Treated Paper
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Overall Width (Metric) UOMmm
Adhesion Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
