3M Products & Supplies

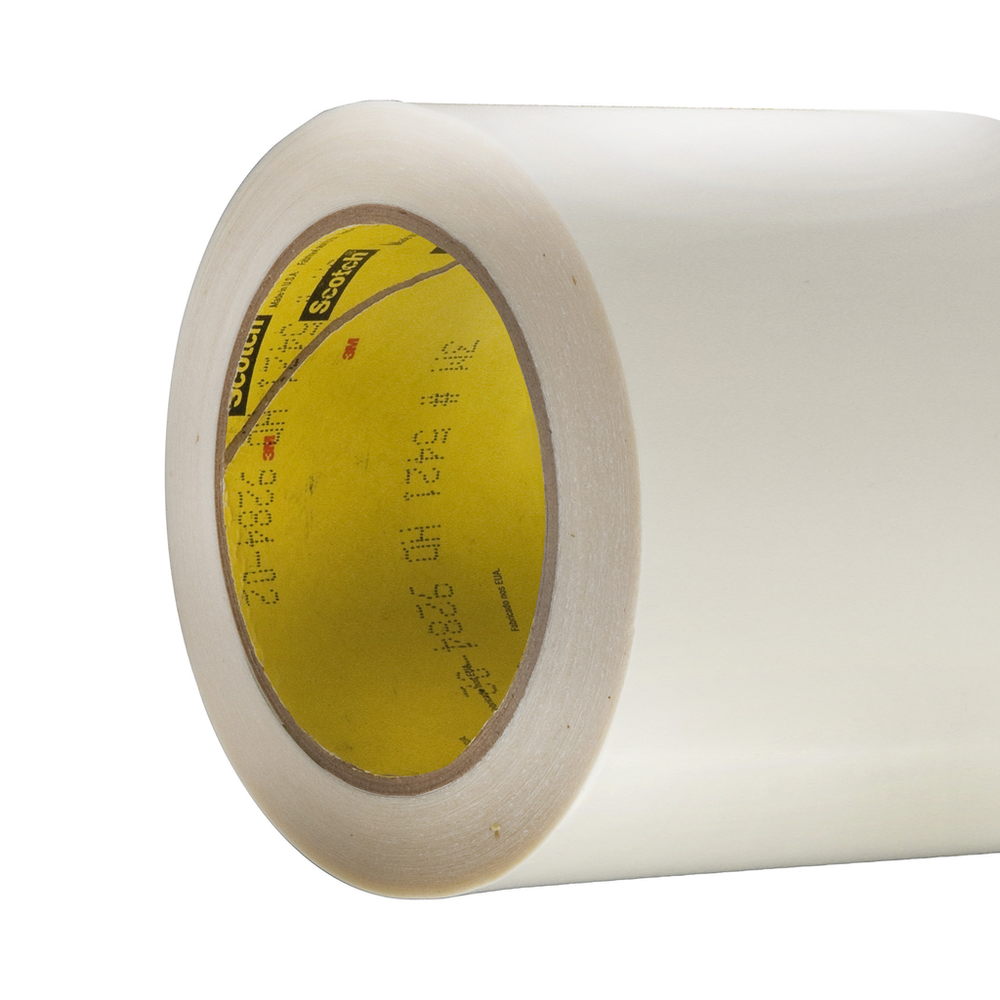

3M™ UHMW Film Tape 5421, Transparent, 24 in x 36 yd, 6.7 mil, 1 Roll/Case - 7010374271

SKU: 7010374271
MPN: 7010374271
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051115059858
3M ID: 70006379492
5 Digit UPC: 5985
$4,510.01 each
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Used in applications where lubrication is not possible because of contamination
  • Translucent, abrasion resistant backing helps protect surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.17
Overall Length (Imperial)36.0
Backing (Carrier) Thickness (Imperial)5.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric)0.13
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Units per Case1.0
Adhesion Strength (Metric)28.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorTransparent
Backing (Carrier) MaterialPolyethylene
Elongation at Break440%
Minimum Operating Temperature (Celsius)-34.0
Maximum Operating Temperature (Celsius)107.0
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner60# Densified Kraft, Silicone Treated Paper
ApplicationGeneral Industrial
Overall Width (Imperial) UOMin
Overall Width (Imperial)24.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)796.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-30.0
Tensile Strength (Imperial)30.0
Adhesion Strength26.0
Maximum Operating Temperature (Fahrenheit)225.0
Overall Length (Metric)32.91
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial)6.7
Minimum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric) UOMN/100mm
Adhesive TypeRubber
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric)609.6
