3M Products & Supplies

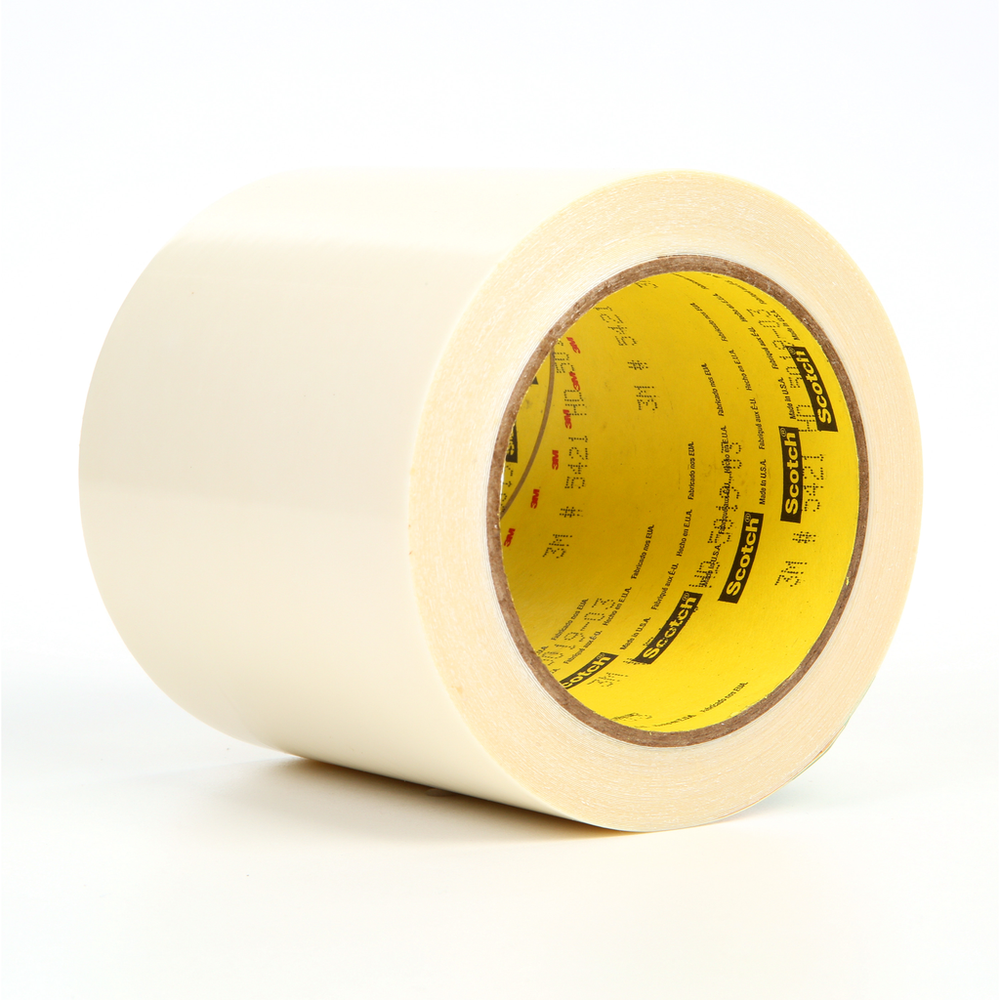

3M™ UHMW Film Tape 5421, Transparent, 6 in x 18 yd, 6.7 mil, 2 Roll/Case - 7000036201

Sold As: 8-Pack
SKU: 7000036201
MPN: 7000036201
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200301193
3M ID: 70006197985
5 Digit UPC: 30119
$4,510.01 ($563.75 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Used in applications where lubrication is not possible because of contamination
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)225.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Width (Imperial) UOMin
ApplicationGeneral Industrial
Minimum Operating Temperature (Celsius)-34.0
Tensile Strength (Metric) UOMN/100mm
Elongation at Break440%
Backing (Carrier) MaterialPolyethylene
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.13
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)6.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.17
Overall Length (Metric) UOMm
Adhesion Strength (Metric)28.0
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-30.0
Adhesive TypeRubber
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Primary Liner60# Densified Kraft, Silicone Treated Paper
Overall Length (Imperial)18.0
Overall Length (Metric)16.45
Product ColorTransparent
Total Tape Thickness without Liner (Imperial)6.7
Tensile Strength (Imperial)30.0
Overall Width (Metric)152.4
Adhesion Strength (Metric) UOMN/100mm
Adhesion Strength26.0
Backing (Carrier) Thickness (Imperial)5.0
Maximum Operating Temperature (Celsius)107.0
Units per Case2.0
Tensile Strength (Metric)796.0
