3M Products & Supplies

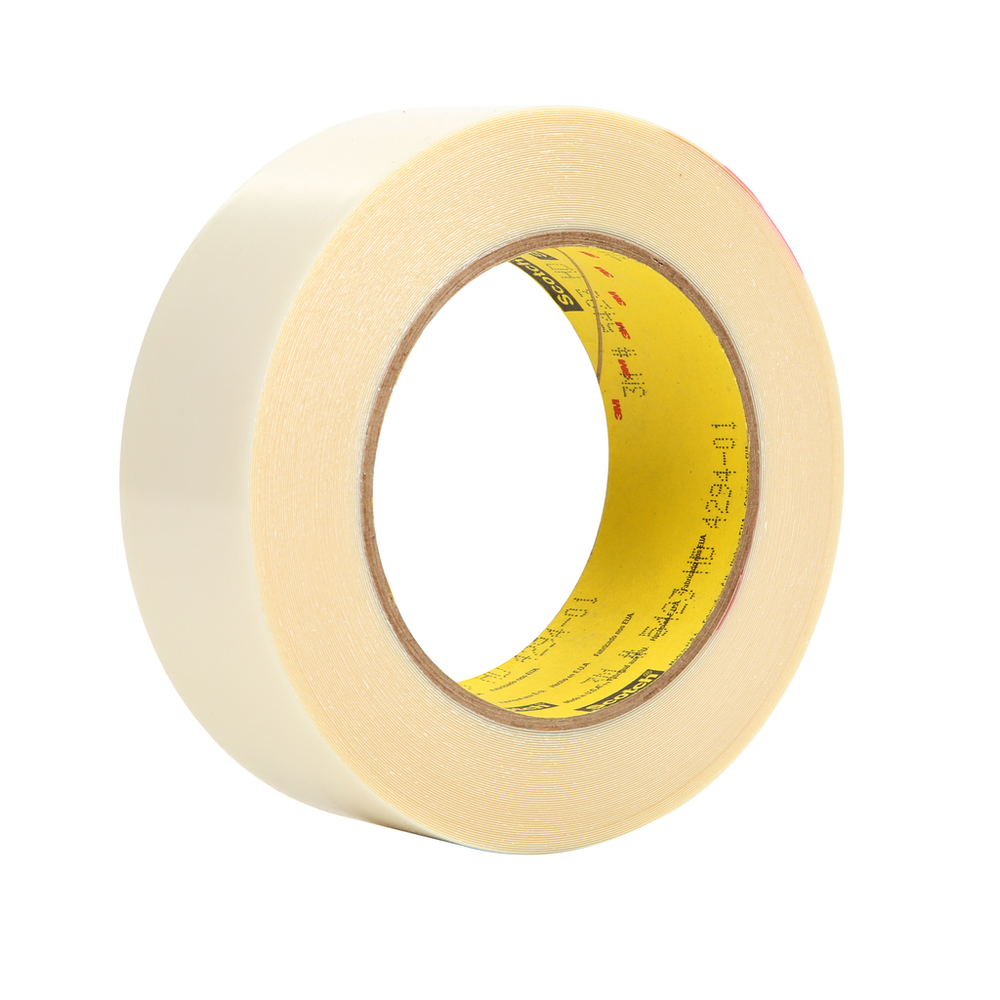

3M™ UHMW Film Tape 5423, Transparent, 1 1/2 in x 18 yd, 12 mil, 6 Roll/Case - 7000050077

Sold As: 6-Pack
SKU: 7000050077
MPN: 7000050077
For an accurate lead time please contact us
UPC: 00021200144561
3M ID: 70016040365
5 Digit UPC: 14456
$1,065.25 ($177.54 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

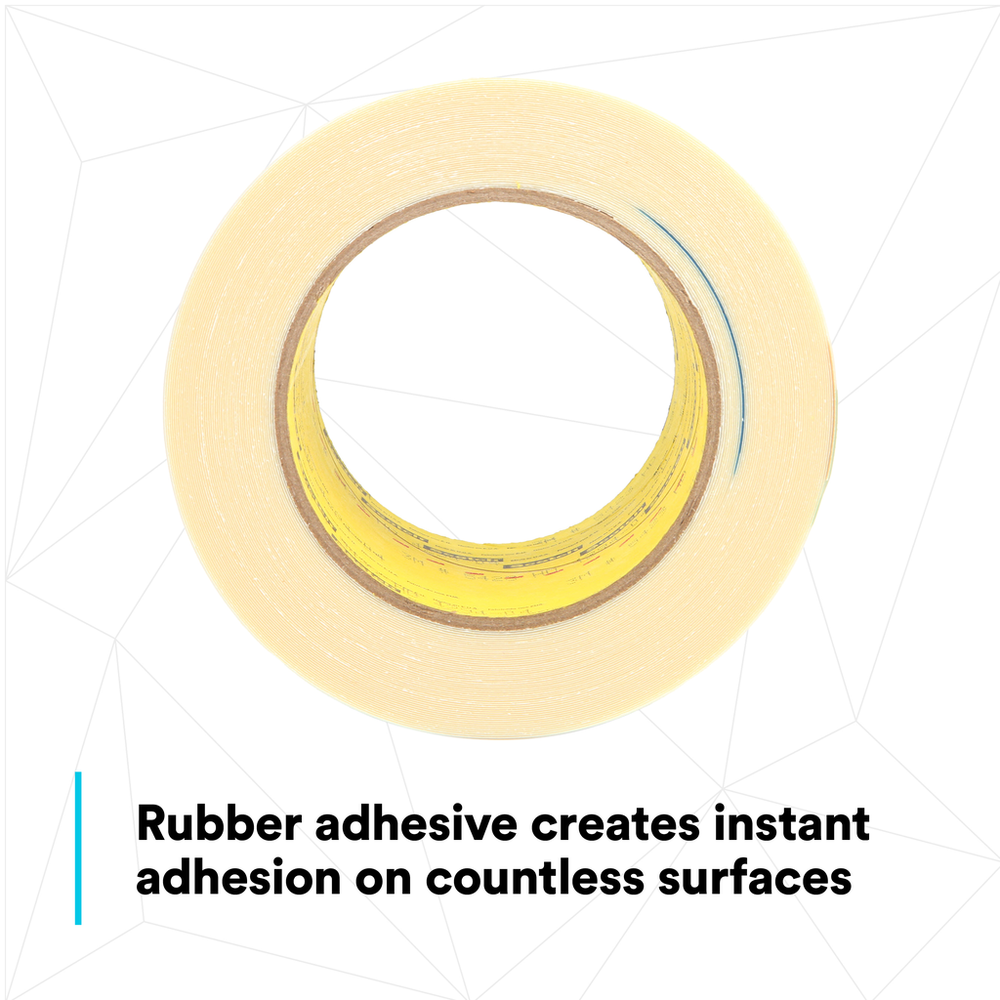

  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination

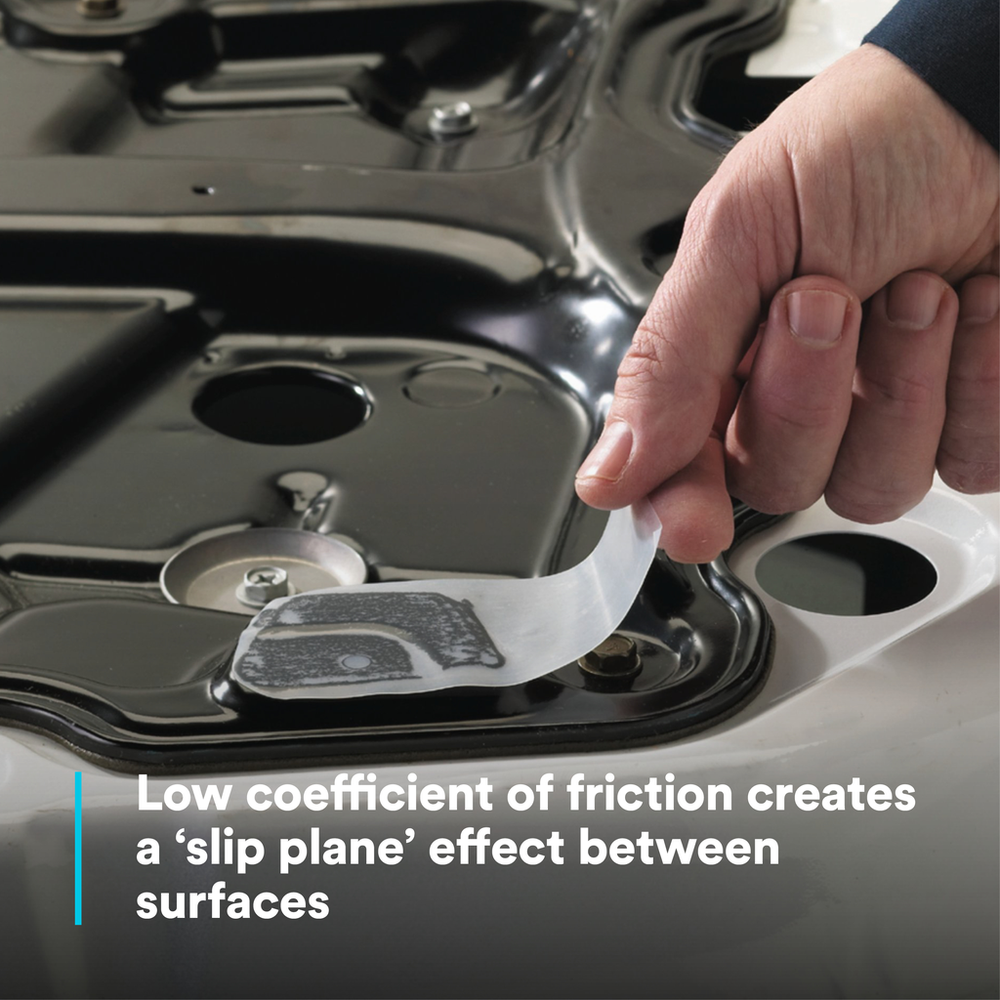

  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces

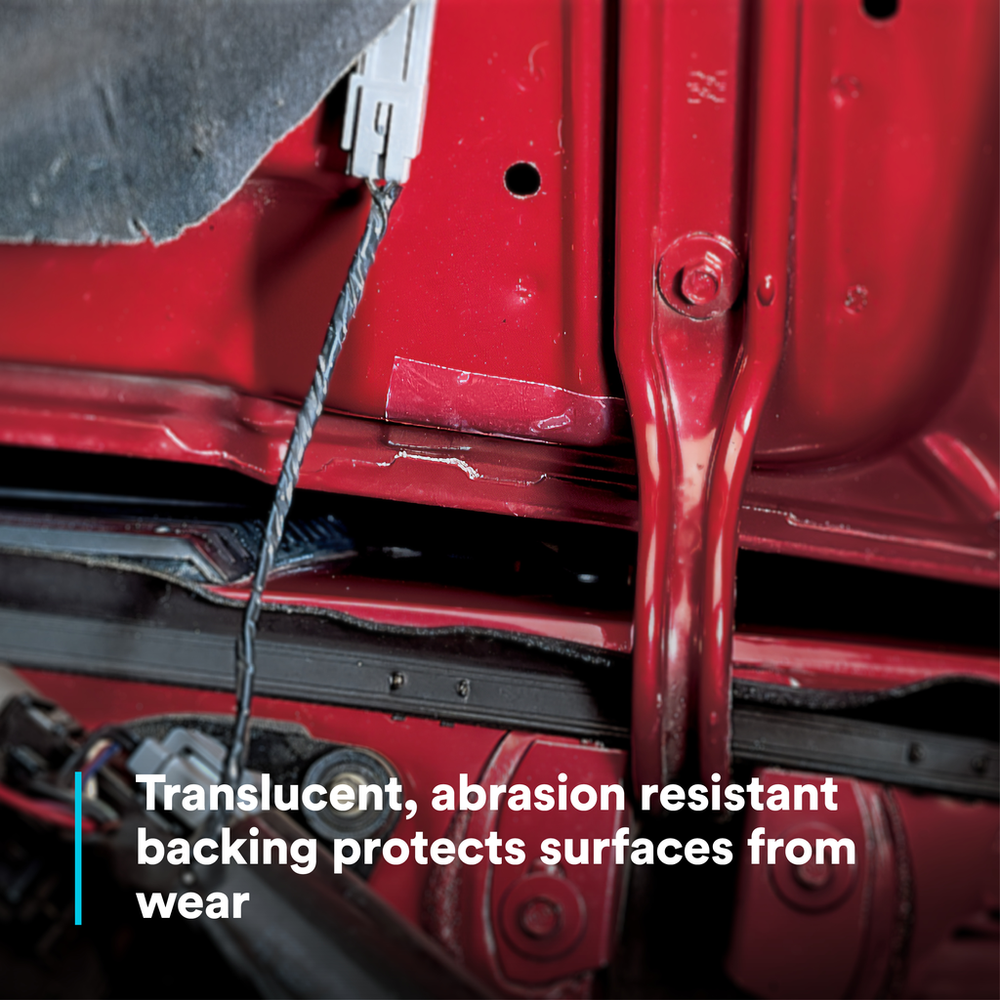

  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Elongation at Break520%
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-30.0
Product ColorTransparent
Total Tape Thickness without Liner (Metric)0.3
Maximum Operating Temperature (Celsius)107.0
Total Tape Thickness without Liner (Imperial)12.0
Maximum Operating Temperature (Fahrenheit)225.0
Adhesion Strength26.0
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.25
Overall Width (Imperial)1.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Adhesion Strength (Metric) UOMN/100mm
Tensile Strength (Metric)150.0
Total Tape Thickness without Liner (Metric) UOMmm
Adhesion Strength (Metric)28.0
Overall Length (Imperial)18.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)38.1
ApplicationReducing Wear Mechanical Equipment
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)10.0
Backing (Carrier) Thickness (Imperial) UOMmil
Primary Liner60# Densified Kraft, Silicone Treated Paper
Backing (Carrier) MaterialPolyethylene
Adhesive TypeRubber
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)16.45
Units per Case6.0
Tensile Strength (Metric) UOMN/cm
