3M Products & Supplies

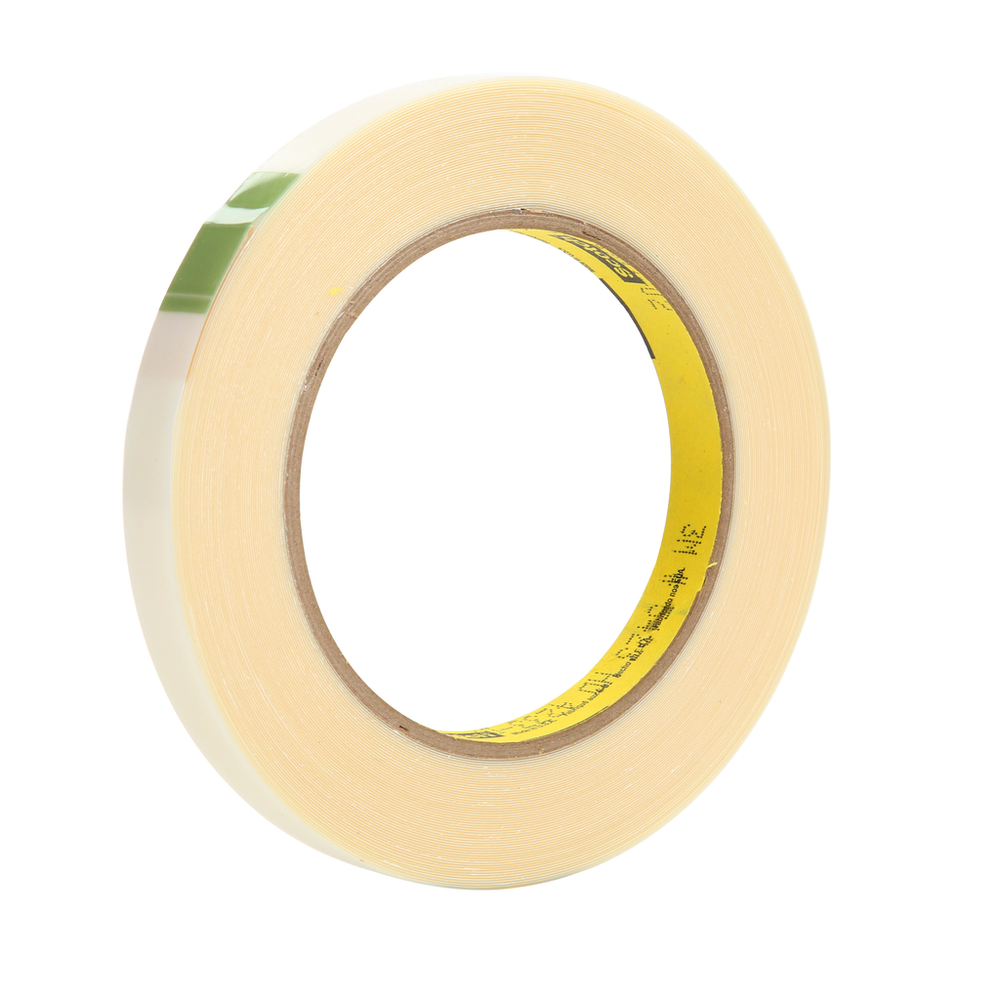

3M™ UHMW Film Tape 5423, Transparent, 1/2 in x 18 yd, 12 mil, 18 Roll/Case - 7000050073

Sold As: 72-Pack
SKU: 7000050073
MPN: 7000050073
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200119903
3M ID: 70016040282
5 Digit UPC: 11990
$5,113.43 ($71.02 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

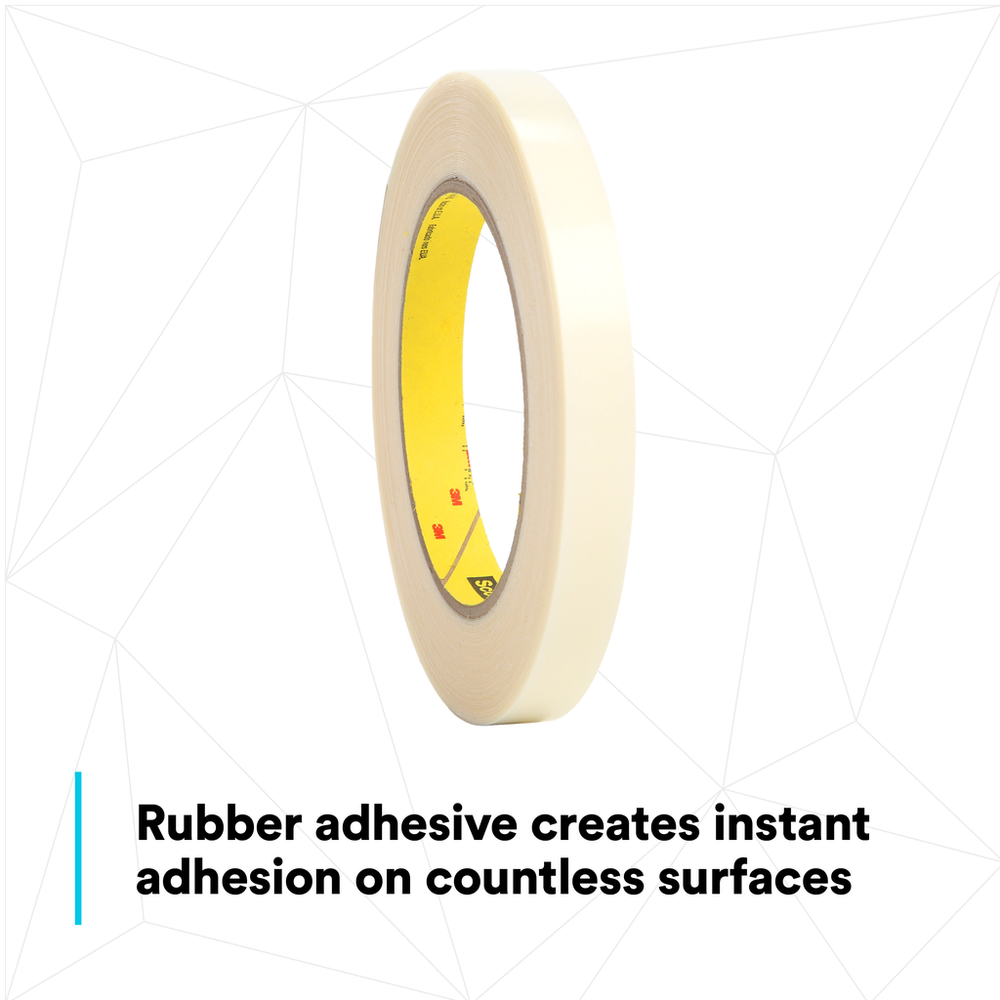

  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Metric)150.0
Total Tape Thickness without Liner (Imperial)12.0
Primary Liner60# Densified Kraft, Silicone Treated Paper
Product ColorTransparent
Backing (Carrier) Thickness (Imperial)10.0
Adhesion Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Metric)0.3
Backing (Carrier) Thickness (Metric)0.25
Adhesion Strength (Metric)28.0
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case18.0
Overall Width (Metric)12.7
Overall Length (Metric)16.45
Backing (Carrier) MaterialPolyethylene
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationReducing Wear Mechanical Equipment
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-30.0
Adhesion Strength26.0
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)225.0
Elongation at Break520%
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Overall Width (Imperial)0.5
Adhesive TypeRubber
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Overall Length (Imperial)18.0
