3M Products & Supplies

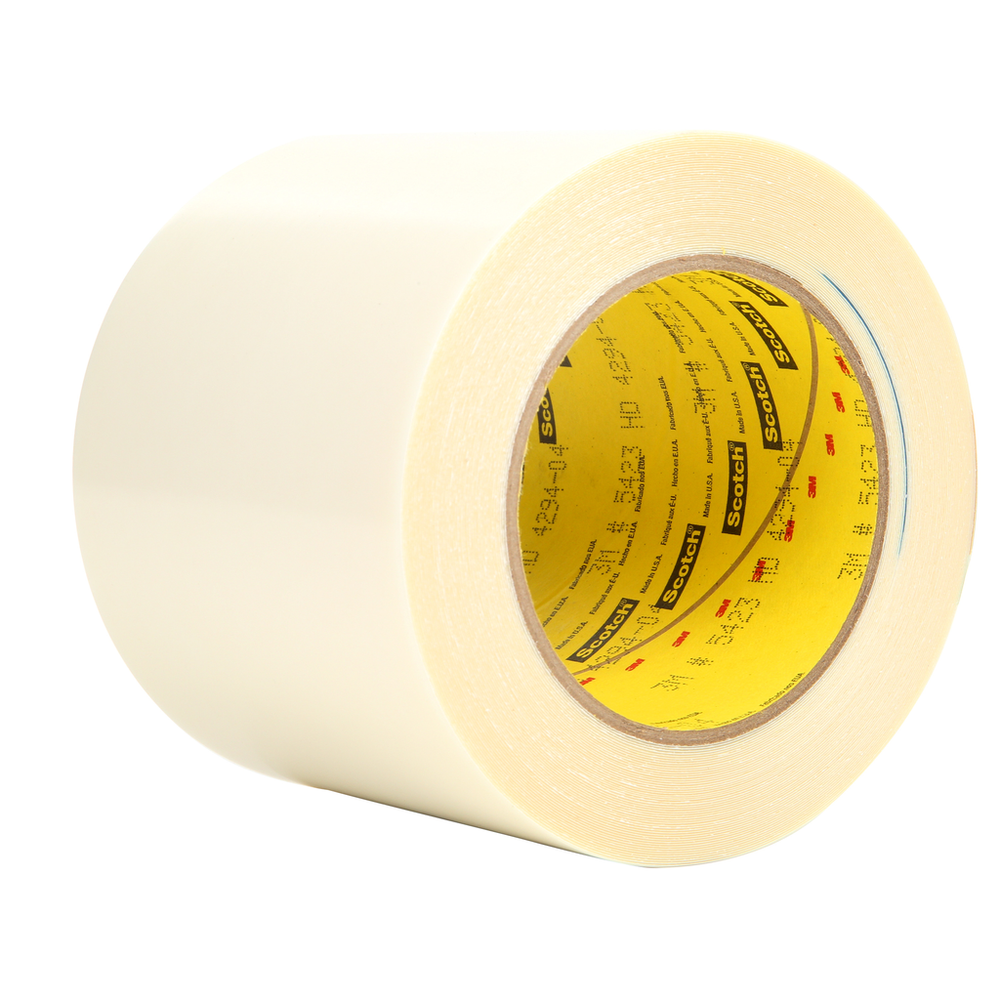

3M™ UHMW Film Tape 5423, Transparent, 5 in x 18 yd, 12 mil, 2 Roll/Case - 7100008081

Sold As: 8-Pack
SKU: 7100008081
MPN: 7100008081
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200301100
3M ID: 70006197936
5 Digit UPC: 30110
$4,735.40 ($591.92 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination
  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)127.0
Adhesive TypeRubber
Minimum Operating Temperature (Celsius)-34.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric) UOMN/cm
Units per Case2.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.25
ApplicationReducing Wear Mechanical Equipment
Overall Length (Imperial)18.0
Overall Width (Imperial)5.0
Product ColorTransparent
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner60# Densified Kraft, Silicone Treated Paper
Minimum Operating Temperature (Fahrenheit)-30.0
Elongation at Break520%
Overall Length (Metric)16.45
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.3
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)12.0
Adhesion Strength26.0
Adhesion Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)10.0
Maximum Operating Temperature (Fahrenheit)225.0
Adhesion Strength (Metric)28.0
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Metric)150.0
Backing (Carrier) MaterialPolyethylene
