3M Products & Supplies

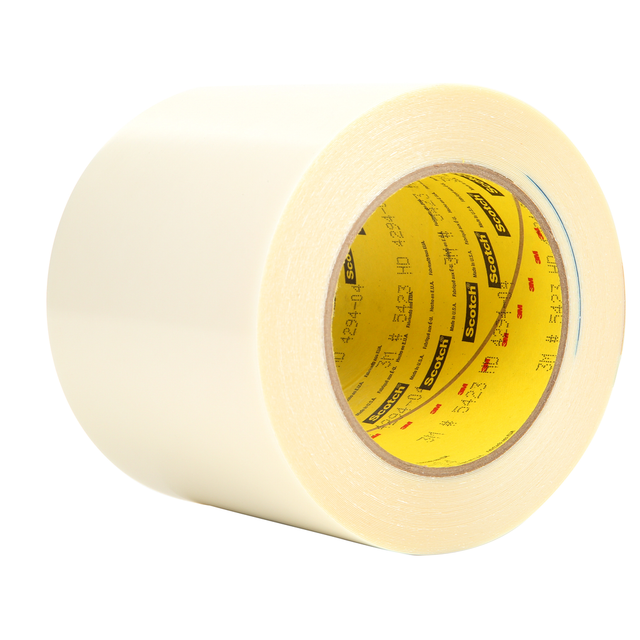

3M™ UHMW Film Tape 5423, Transparent, 1/4 in x 18 yd, 12 mil, 32 Rolls/Case - 7100236510

Sold As: 32-Pack
SKU: 7100236510
MPN: 7100236510
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060408087
3M ID: 70007545463
5 Digit UPC: 40808
$1,420.59 ($44.39 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Metric)16.459
Adhesion Strength26.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break520%
Overall Length (Metric) UOMm
Backing (Carrier) MaterialPolyethylene
Tensile Strength (Metric)150.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)107.0
Primary Liner60# Densified Kraft, Silicone Treated Paper
Minimum Operating Temperature (Fahrenheit)-30.0
Tensile Strength (Metric) UOMN/cm
Overall Width (Metric) UOMmm
Overall Length (Imperial)18.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Overall Width (Imperial)0.25
Overall Width (Imperial) UOMin
Adhesion Strength (Metric)28.0
Maximum Operating Temperature (Fahrenheit)225.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)6.35
Minimum Operating Temperature (Celsius)-34.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Product ColorTransparent
Adhesion Strength (Metric) UOMN/100mm
ApplicationReducing Wear Mechanical Equipment
Total Tape Thickness without Liner (Imperial)12.0
Total Tape Thickness without Liner (Metric)0.3
Backing (Carrier) Thickness (Imperial)10.0
Backing (Carrier) Thickness (Imperial) UOMmil
Adhesive TypeRubber
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.25
