3M Products & Supplies

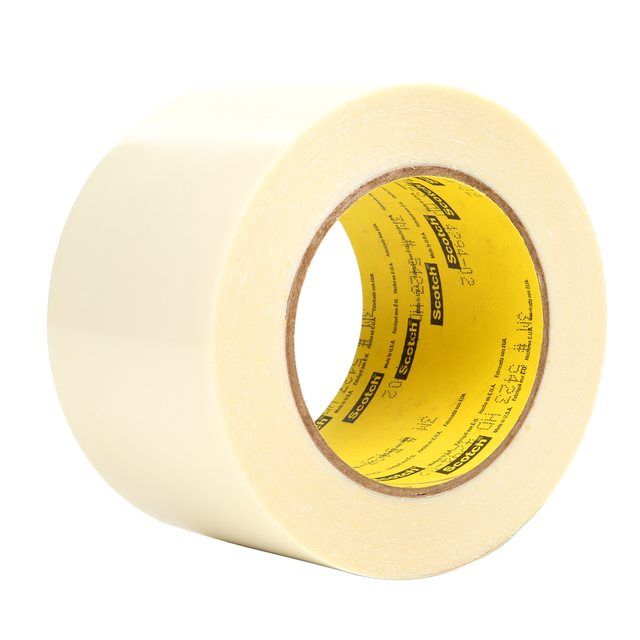

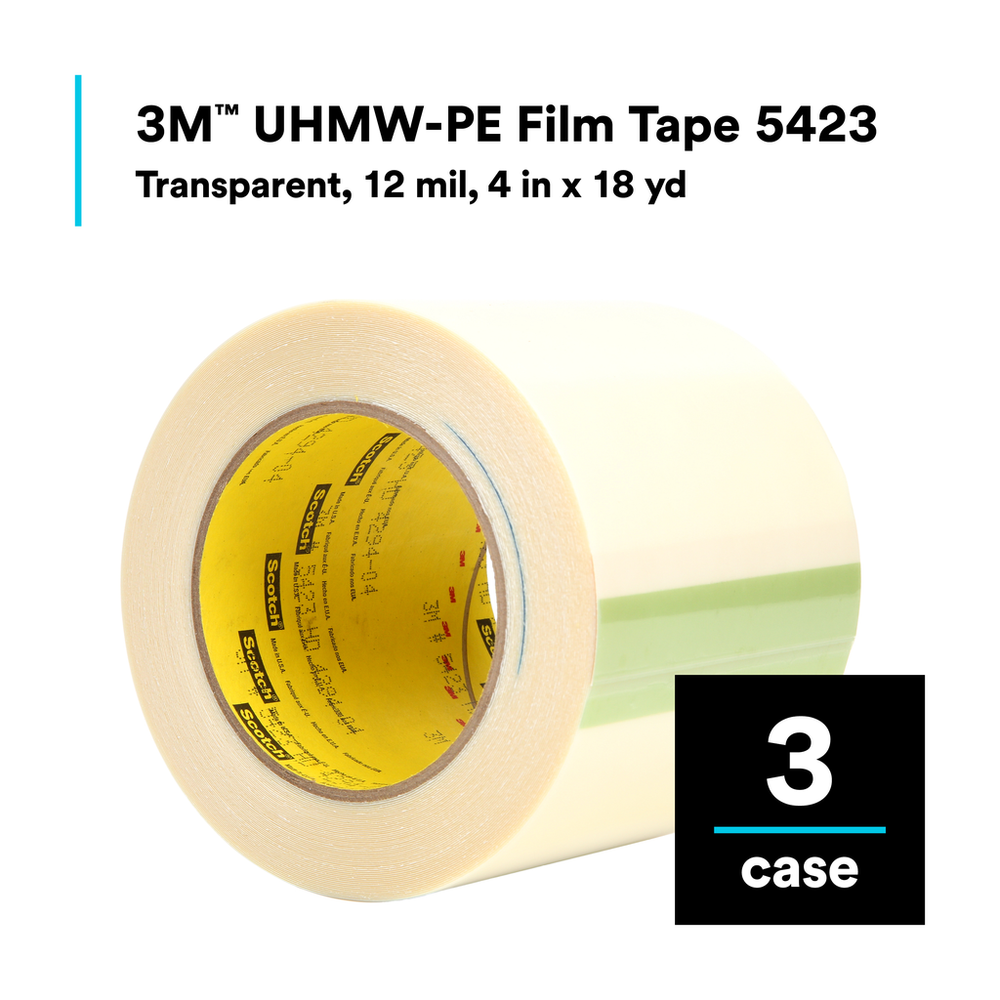

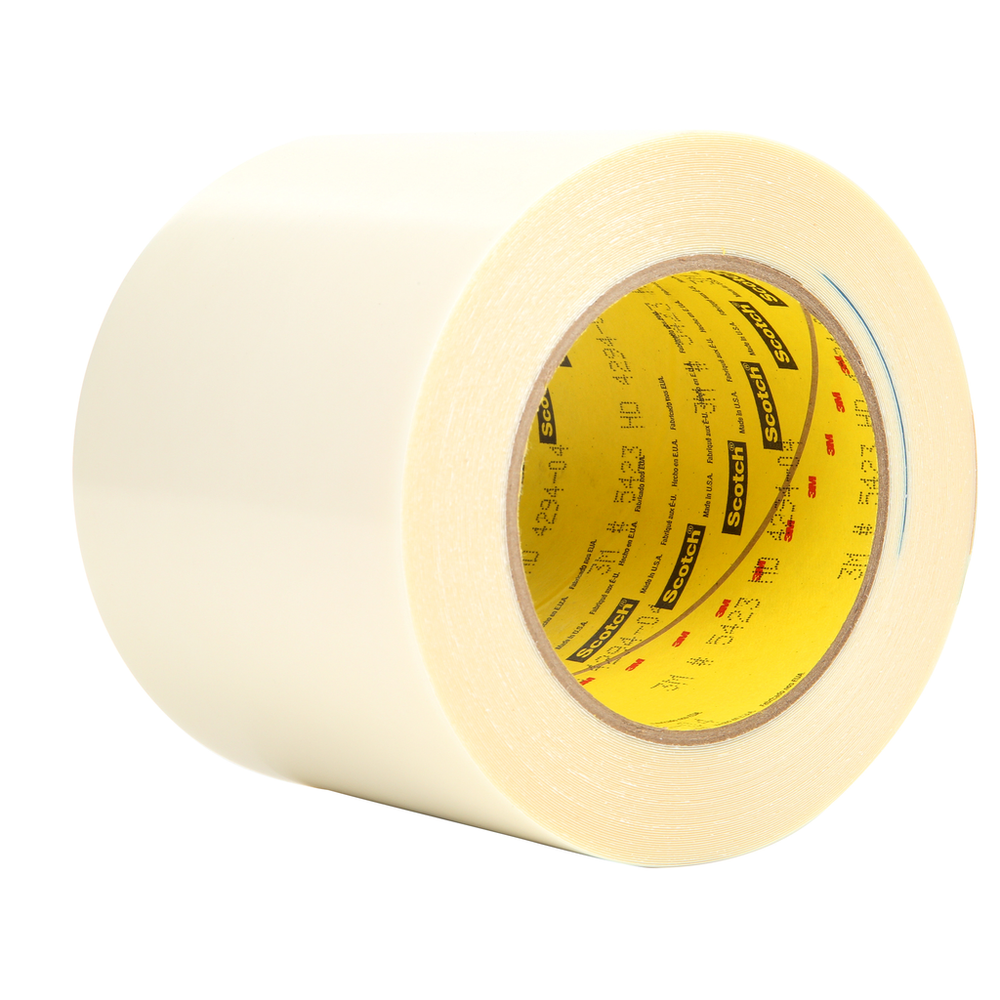

3M™ UHMW Film Tape 5423, Transparent, 4 in x 18 yd, 12 mil, 3 Roll/Case - 7000029136

Sold As: 3-Pack
SKU: 7000029136
MPN: 7000029136
For an accurate lead time please contact us
UPC: 00021200144578
3M ID: 70016025929
5 Digit UPC: 14457
$1,420.61 ($473.54 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) MaterialPolyethylene
Total Tape Thickness without Liner (Metric)0.3
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)16.45
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Metric)101.6
Tensile Strength (Metric)150.0
Backing (Carrier) Thickness (Imperial)10.0
Overall Length (Imperial)18.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-30.0
Tensile Strength (Metric) UOMN/cm
Maximum Operating Temperature (Fahrenheit)225.0
Primary Liner60# Densified Kraft, Silicone Treated Paper
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Imperial)12.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.25
Adhesion Strength26.0
Overall Length (Imperial) UOMyd
Product ColorTransparent
Maximum Operating Temperature (Celsius)107.0
Minimum Operating Temperature (Celsius)-34.0
Overall Width (Imperial)4.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break520%
Overall Length (Metric) UOMm
Adhesion Strength (Metric)28.0
Backing (Carrier) Thickness (Imperial) UOMmil
Units per Case3.0
ApplicationReducing Wear Mechanical Equipment
Minimum Operating Temperature (Fahrenheit) UOMDegree
