3M Products & Supplies

3M™ UHMW Film Tape 5423, Transparent, 3 in x 18 yd, 12 mil, 3 Roll/Case - 7000050078

Sold As: 3-Pack
SKU: 7000050078
MPN: 7000050078
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200119927
3M ID: 70016040381
5 Digit UPC: 11992
$1,065.33 ($355.11 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination

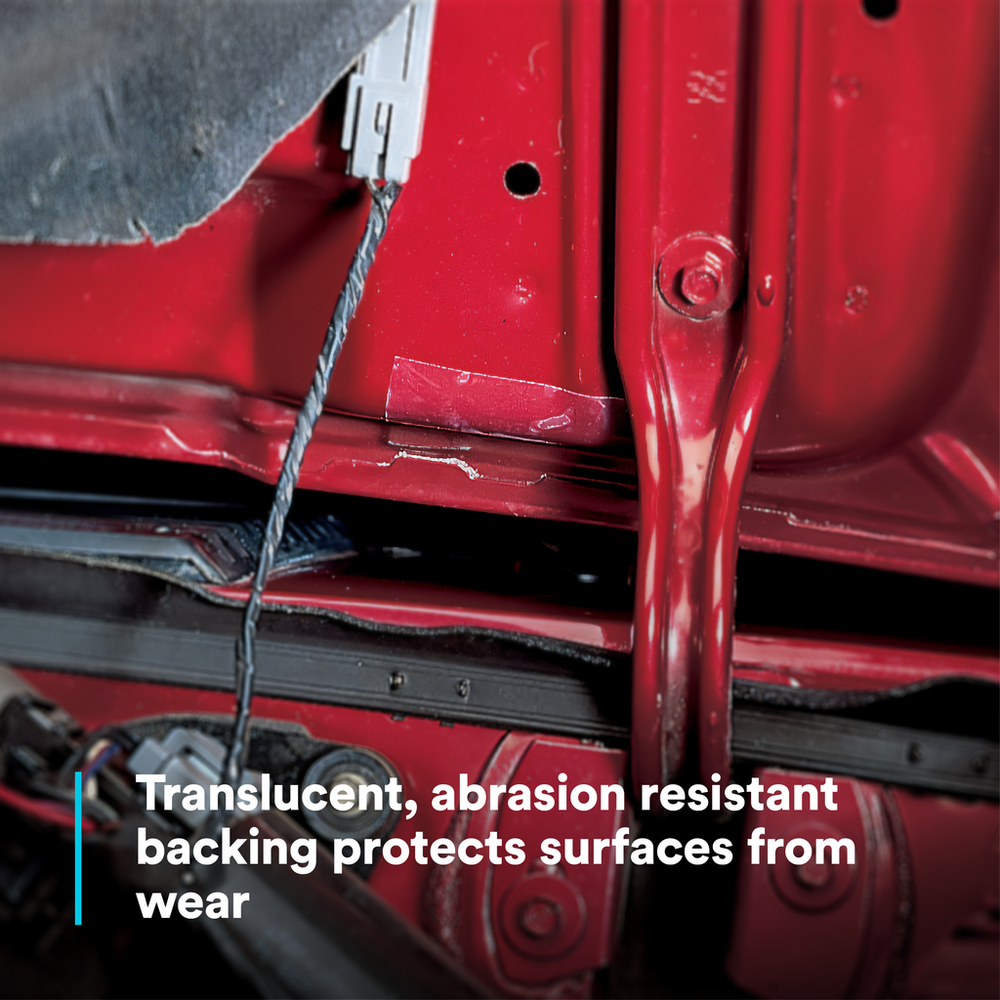

  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Imperial)10.0
Adhesion Strength (Metric)28.0
Tensile Strength (Metric)150.0
Backing (Carrier) MaterialPolyethylene
Backing (Carrier) Thickness (Metric) UOMmm
Primary Liner60# Densified Kraft, Silicone Treated Paper
Overall Length (Imperial)18.0
Tensile Strength (Metric) UOMN/cm
Elongation at Break520%
Total Tape Thickness without Liner (Imperial)12.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
ApplicationReducing Wear Mechanical Equipment
Product ColorTransparent
Overall Length (Metric)16.5
Adhesive TypeRubber
Adhesion Strength26.0
Maximum Operating Temperature (Celsius)107.0
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius)-34.0
Maximum Operating Temperature (Fahrenheit)225.0
Units per Case3.0
Overall Width (Metric)76.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.3
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.25
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)3.0
Minimum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
