3M Products & Supplies

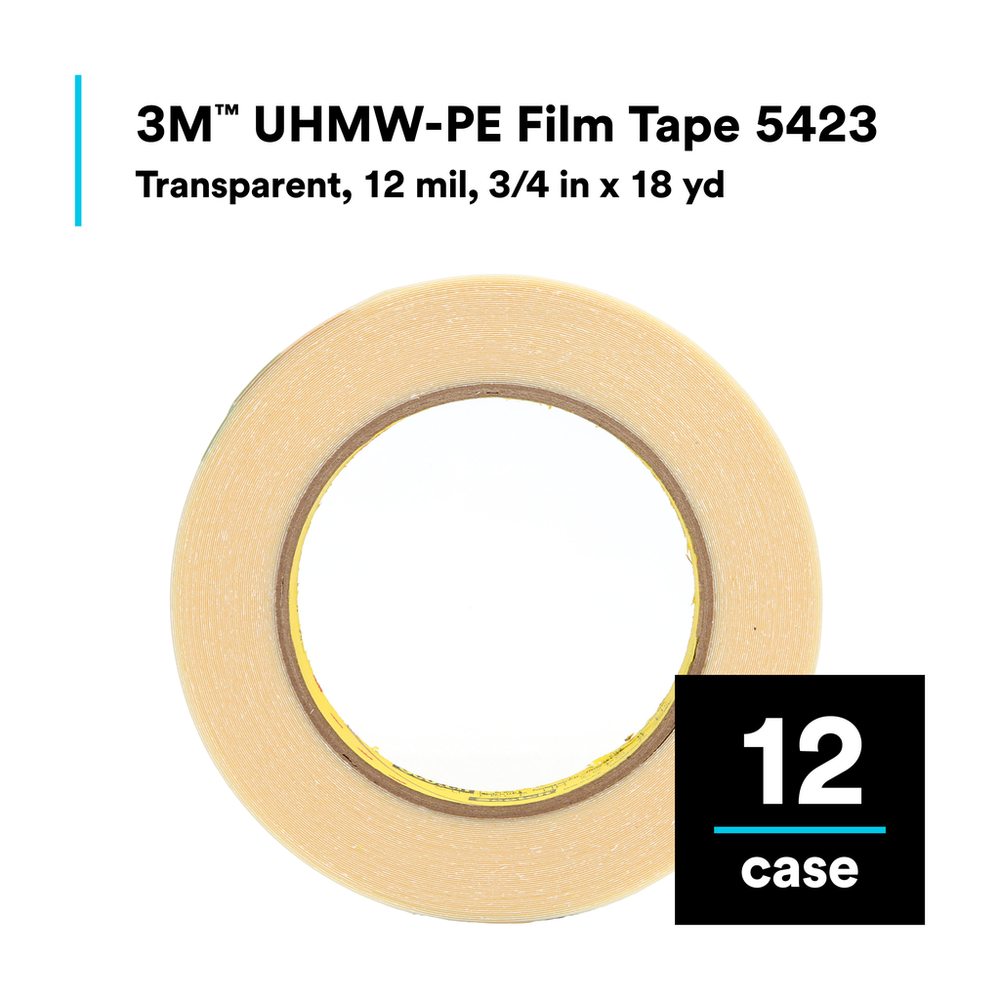

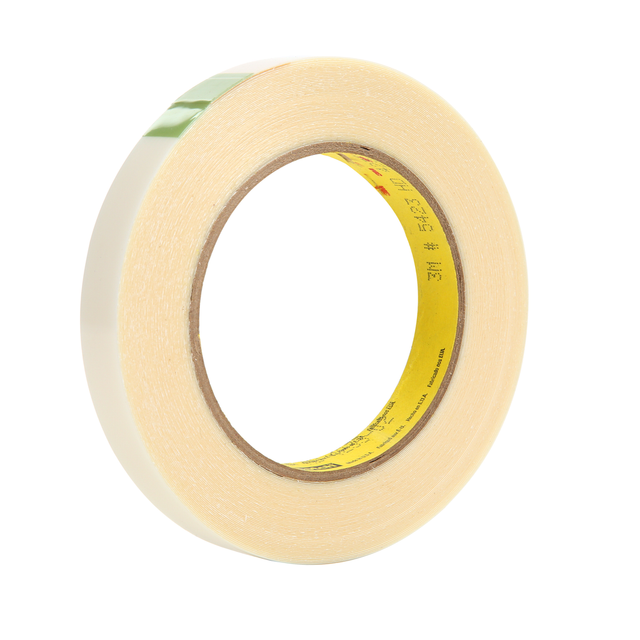

3M™ UHMW Film Tape 5423, Transparent, 3/4 in x 18 yd, 12 mil, 12 Roll/Case - 7000029144

Sold As: 12-Pack
SKU: 7000029144
MPN: 7000029144
For an accurate lead time please contact us
UPC: 00021200119910
3M ID: 70016040308
5 Digit UPC: 11991
$1,118.60 ($93.22 / Count)
Hurry up! Current stock:

Product Description

3M™ UHMW-PE Film Tape 5423 is a thick, general-purpose polyethylene tape made for high-impact, abrasion, and sliding applications. Its UPMW-PE (ultra-high molecular weight polyethylene) thermoplastic backing enables its low-friction and resistance to chemicals, abrasion, and vibration in demanding situations. The exceptional hardness and slick surface is ideal for maintaining a gliding, 'slip-plane' effect and reducing noises like squeaks and rattles. Furthering its workability, 3M™ UHMW-PE Film Tape 5423 is mounted on a liner, allowing the user to die-cut shapes to exact specifications. Between its low-friction coefficient, built-in liner, and long-lasting protection, this slick-surfaced tape excels in the aerospace, automotive, printing, and MRO industries.

Features

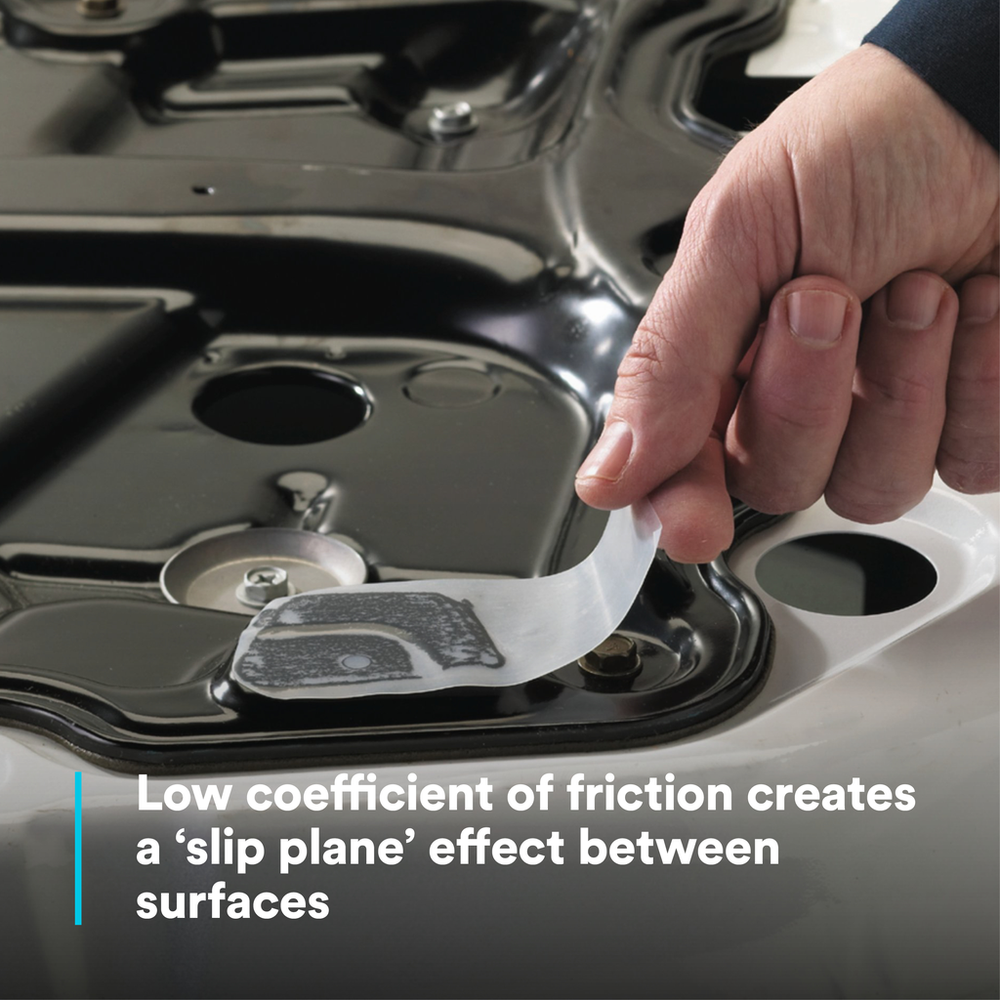

  • VERY LOW-FRICTION: Low coefficient of friction creates a 'slip plane' effect between surfaces
  • BUILT-IN LINER: The peel-off liner makes it ideal for fabricating or die-cutting into various part-specific lengths, shapes, and sizes
  • MAKE DIFFICULT SURFACES SLIPPERY: Great in applications where lubrication is not possible because of contamination
  • POWERFUL ADHESIVE: Rubber adhesive creates instant adhesion on countless surfaces
  • REDUCE UNWANTED NOISE: Can help reduce buzz, squeaks, rattles, and other noises that occur with movement

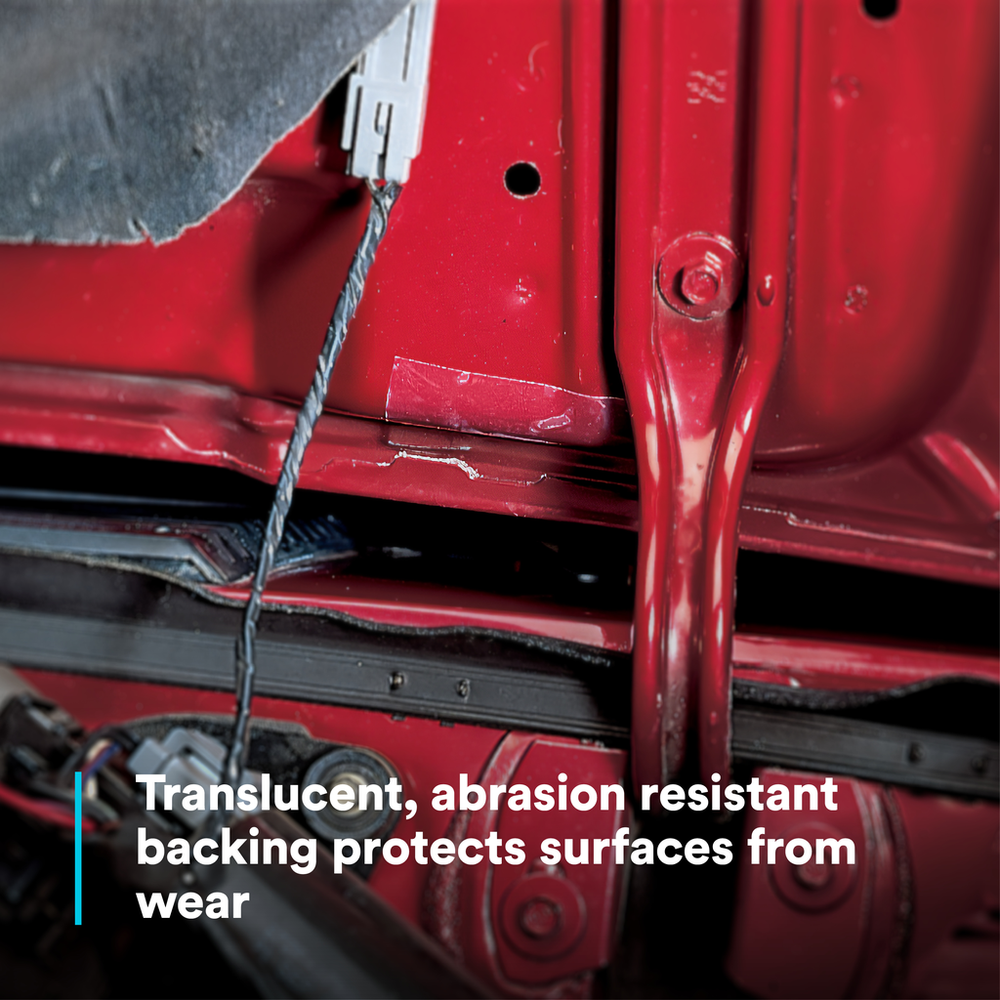

  • INSTANTLY PROTECT SURFACES: Translucent, abrasion resistant backing protects surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Imperial)10.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, MRO, Metalworking, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit)225.0
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Backing (Carrier) Thickness (Metric)0.25
ApplicationReducing Wear Mechanical Equipment
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break520%
Product ColorTransparent
Adhesive TypeRubber
Overall Width (Metric)19.05
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.3
Adhesion Strength26.0
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)107.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)12.0
Primary Liner60# Densified Kraft, Silicone Treated Paper
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.75
Backing (Carrier) MaterialPolyethylene
Overall Length (Imperial)18.0
Units per Case12.0
Tensile Strength (Metric) UOMN/cm
Tensile Strength (Metric)150.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric)28.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric)16.45
