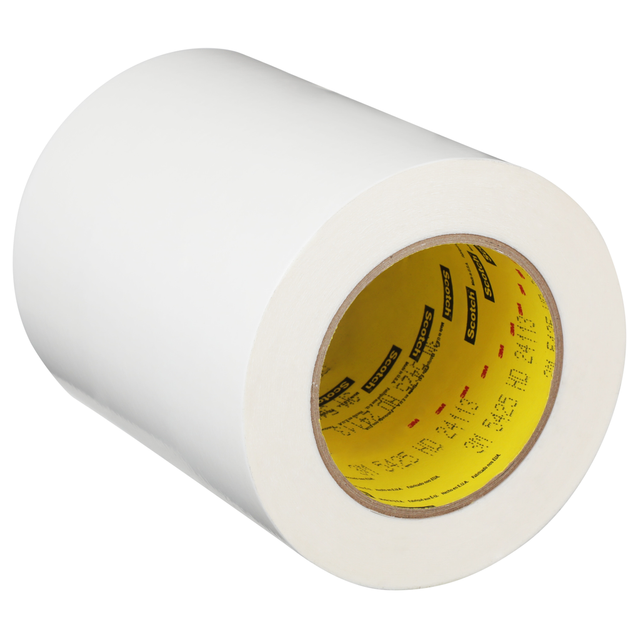

3M™ UHMW Film Tape 5425, Transparent, 2 in x 36 yd, 5.1 mil, 6 Roll/Case - 7000050141

Sold As: 12-Pack
SKU: 7000050141
MPN: 7000050141
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200266249
3M ID: 70016055330
5 Digit UPC: 26624
$5,634.07 ($469.51 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Used in applications where lubrication is not possible because of contamination
  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Low coefficient of friction for “slip plane” effect between surfaces
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Operating Temperature (Celsius)107.0
Adhesion Strength30.0
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)5.1
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial)45.0
Minimum Operating Temperature (Celsius)-34.0
Overall Length (Imperial)36.0
Adhesion Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)3.0
Overall Length (Metric)32.9
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)2.0
Overall Length (Imperial) UOMyd
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Adhesion Strength (Metric)33.0
Minimum Operating Temperature (Fahrenheit)-30.0
ApplicationVibration Damping
Units per Case6.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric)44.4
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorTransparent
Backing (Carrier) MaterialPolyethylene
Total Tape Thickness without Liner (Metric)0.13
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric) UOMN/100mm
Units per Case UOMRoll
Overall Width (Metric)50.8
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)225.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.08
Backing (Carrier) Thickness (Metric) UOMmm
Elongation at Break345%
