3M Products & Supplies

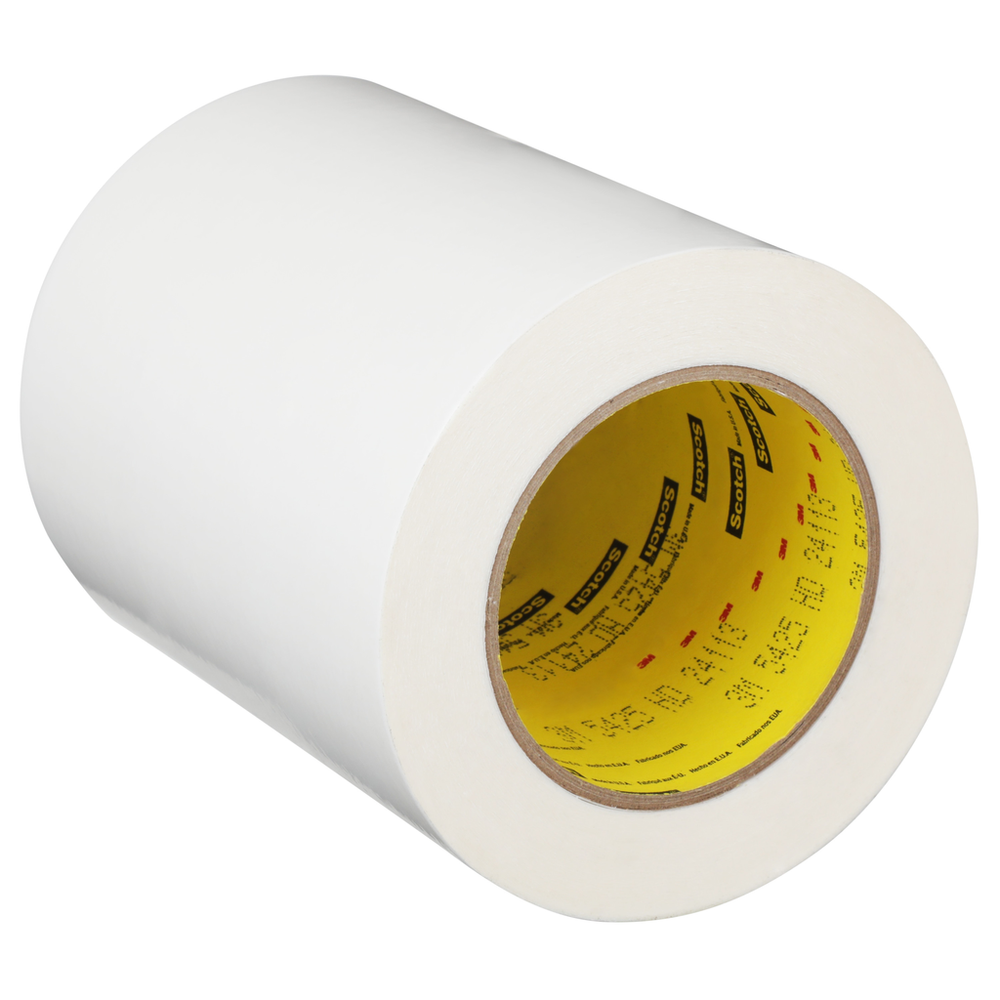

3M™ UHMW Film Tape 5425, Transparent, 6 in x 36 yd, 5.1 mil, 2 Roll/Case - 7100041894

Sold As: 4-Pack
SKU: 7100041894
MPN: 7100041894
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200302855
3M ID: 70016056346
5 Digit UPC: 30285
$5,634.07 ($1408.52 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5425 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features outstanding chemical resistance and a unique combination of properties that make it ideal for many tough impact wear or sliding applications.

Features

  • Solvent and oil resistant adhesive provides high adhesion and chemical resistance in the most demanding applications
  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Used in applications where lubrication is not possible because of contamination
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Can help reduce squeaks, rattles and other noises that occur with movement
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)44.4
Total Tape Thickness without Liner (Metric)0.13
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Imperial)3.0
Adhesion Strength30.0
Maximum Operating Temperature (Fahrenheit)225.0
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric)152.4
Tensile Strength (Imperial)45.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-34.0
Minimum Operating Temperature (Celsius) UOMDegree
ApplicationVibration Damping
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Width (Imperial)6.0
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) MaterialPolyethylene
Total Tape Thickness without Liner (Imperial)5.1
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.08
Maximum Operating Temperature (Celsius)107.0
Adhesion Strength (Metric)33.0
Overall Length (Imperial)36.0
Overall Length (Imperial) UOMyd
Product ColorTransparent
Overall Length (Metric)32.91
Elongation at Break345%
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric) UOMmm
