3M Products & Supplies

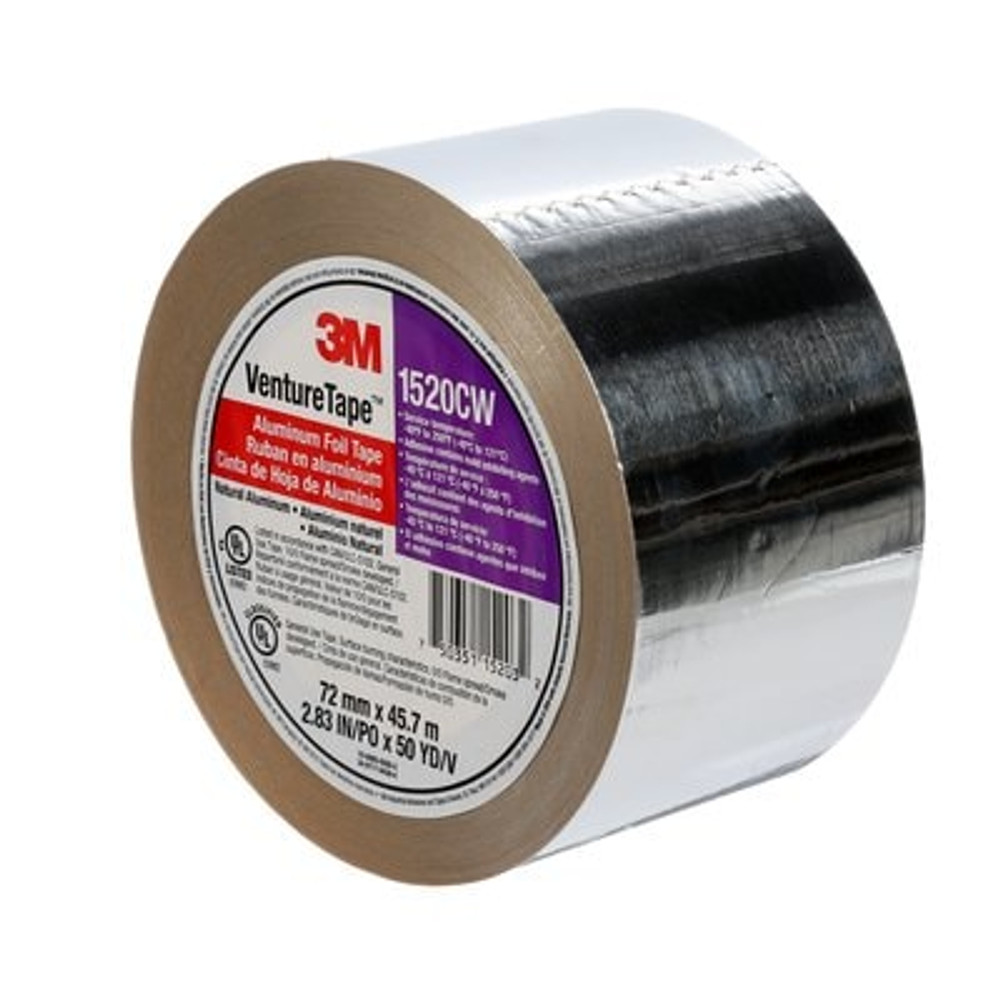

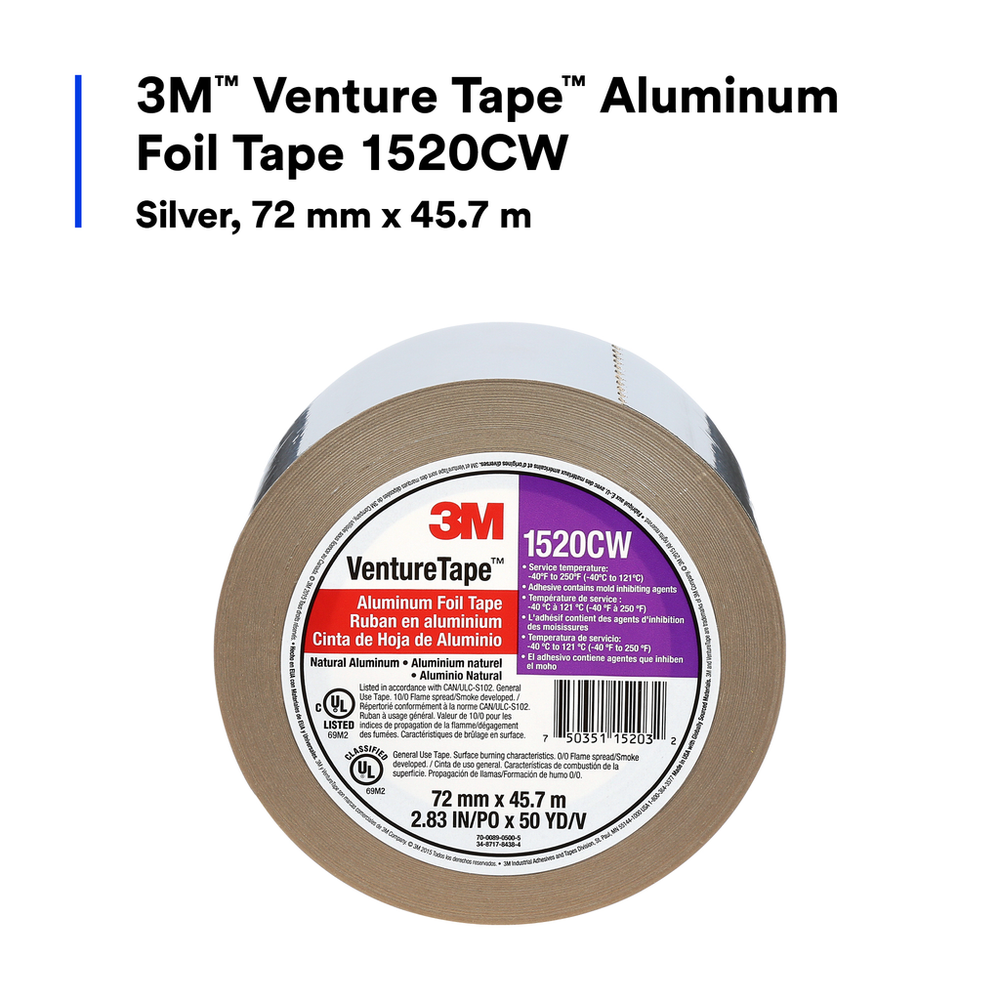

3M™ Venture Tape™ Aluminum Foil Tape 1520CW, Silver, 72 mm x 45.7 m, 3.2 mil, 16 Rolls/Case - 7100043713

Sold As: 16-Pack
SKU: 7100043713
MPN: 7100043713
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00750351152032
3M ID: 70008905005
5 Digit UPC: 15203
$326.51 ($20.41 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a conformable, 3.2 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications. Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and bonds and seals at temperatures as low as -10 °F (-23 °C). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork. This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time. This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating. For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 1520CW provides a durable bond in various masking and sealing operations.

Features

  • Hand tearable and easy to install on site without special tools or application methods
  • Features an easy release liner
  • Multi-purpose foil tape for a variety of applications
  • Cold weather acrylic adhesive is specifically designed for adhesion in temps as low as -10°F/23°C
  • Flexible foil conforms well to curved or irregular surfaces
  • Nominal 1.8 mil aluminum foil is excellent for use on fibrous and sheet metal ducts
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric)72.0
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit)121.0
Overall Length (Metric) UOMm
Primary LinerPolycoated Kraft
Backing (Carrier) Thickness (Imperial)1.8
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)2.83
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.05
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorSilver
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)121.0
Backing MaterialAluminum Foil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial)50.0
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)3.3
Tensile Strength (Imperial)21.0
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) MaterialAluminum Foil
Tensile Strength (Metric)36.8
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.08
Overall Width (Metric) UOMmm
