3M Products & Supplies

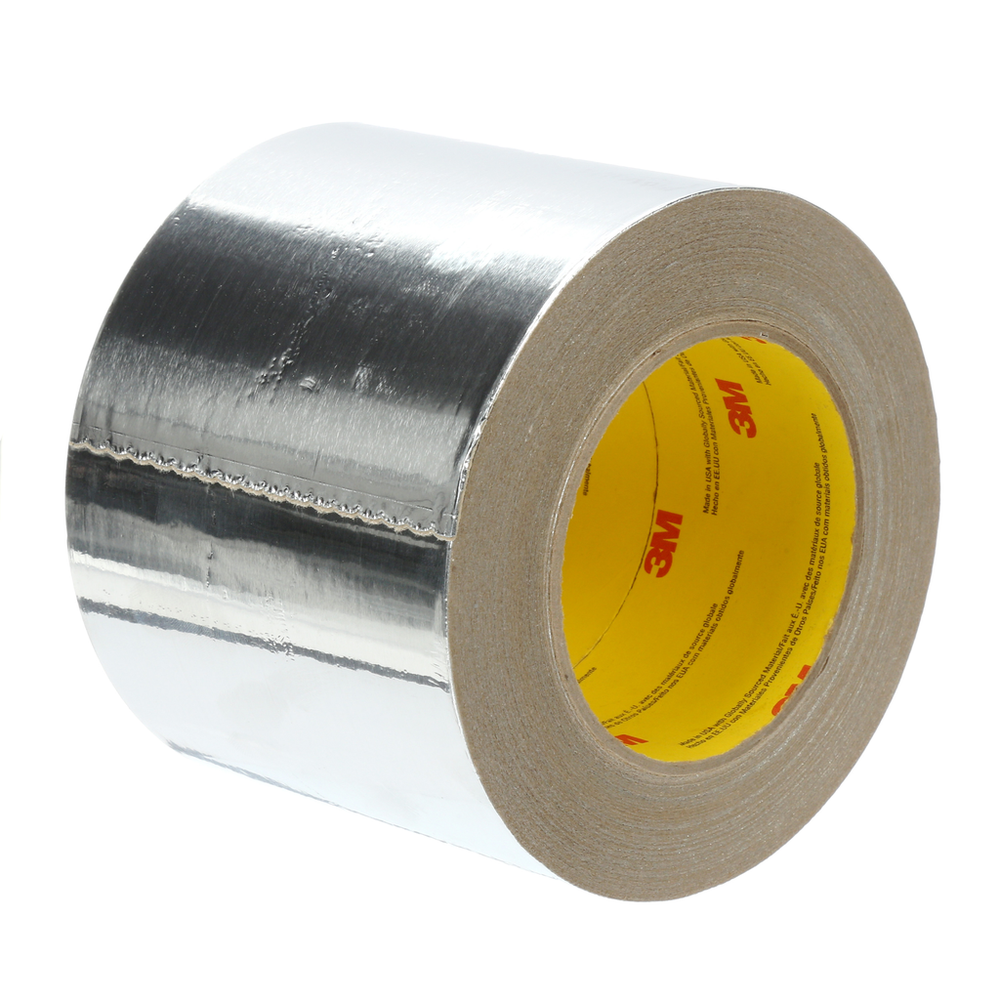

3M™ Venture Tape™ Aluminum Foil Tape 1520CW, Silver, 99 mm x 45.7 m, 3.2 mil, 12 Rolls/Case - 7100043875

Sold As: 12-Pack
SKU: 7100043875
MPN: 7100043875
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128955208
3M ID: 70008905021
5 Digit UPC: 95520
$336.58 ($28.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a conformable, 3.2 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications. Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and bonds and seals at temperatures as low as -10 °F (-23 °C). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork. This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time. This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating. For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 1520CW provides a durable bond in various masking and sealing operations.

Features

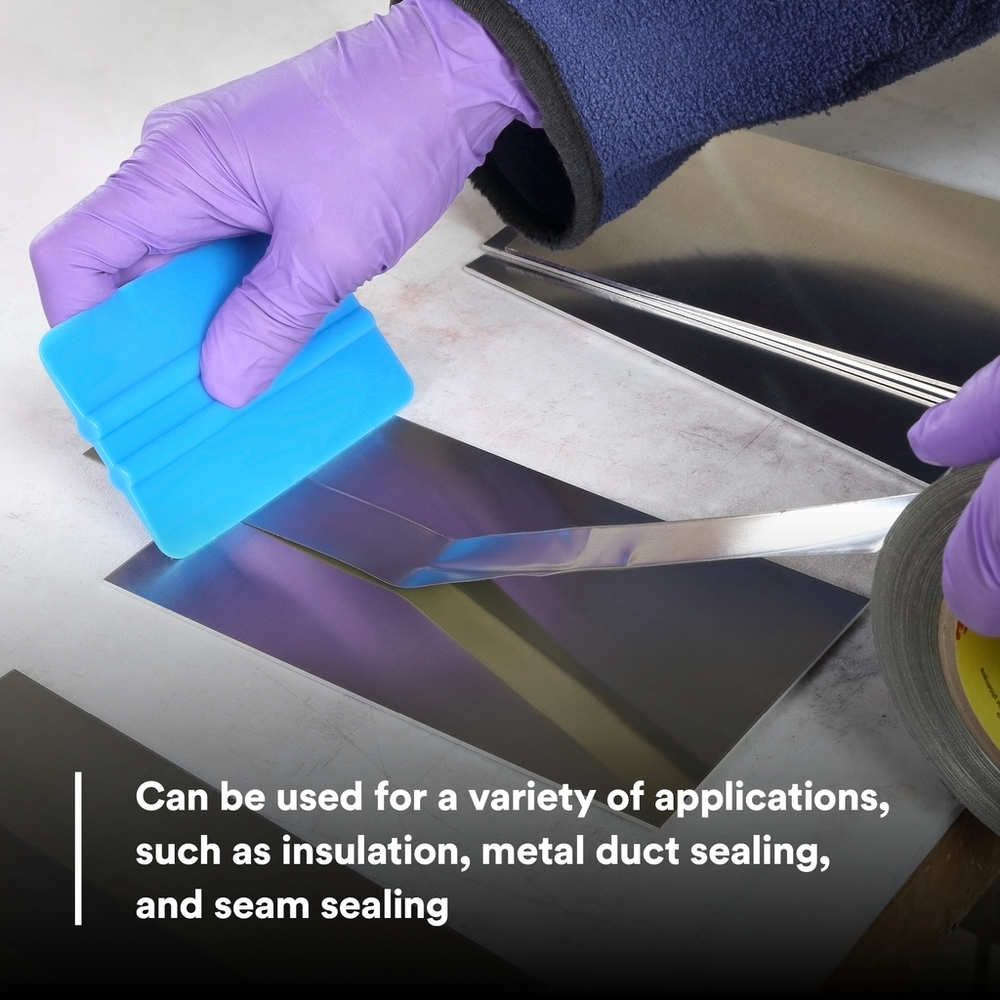

  • Multi-purpose foil tape for a variety of applications

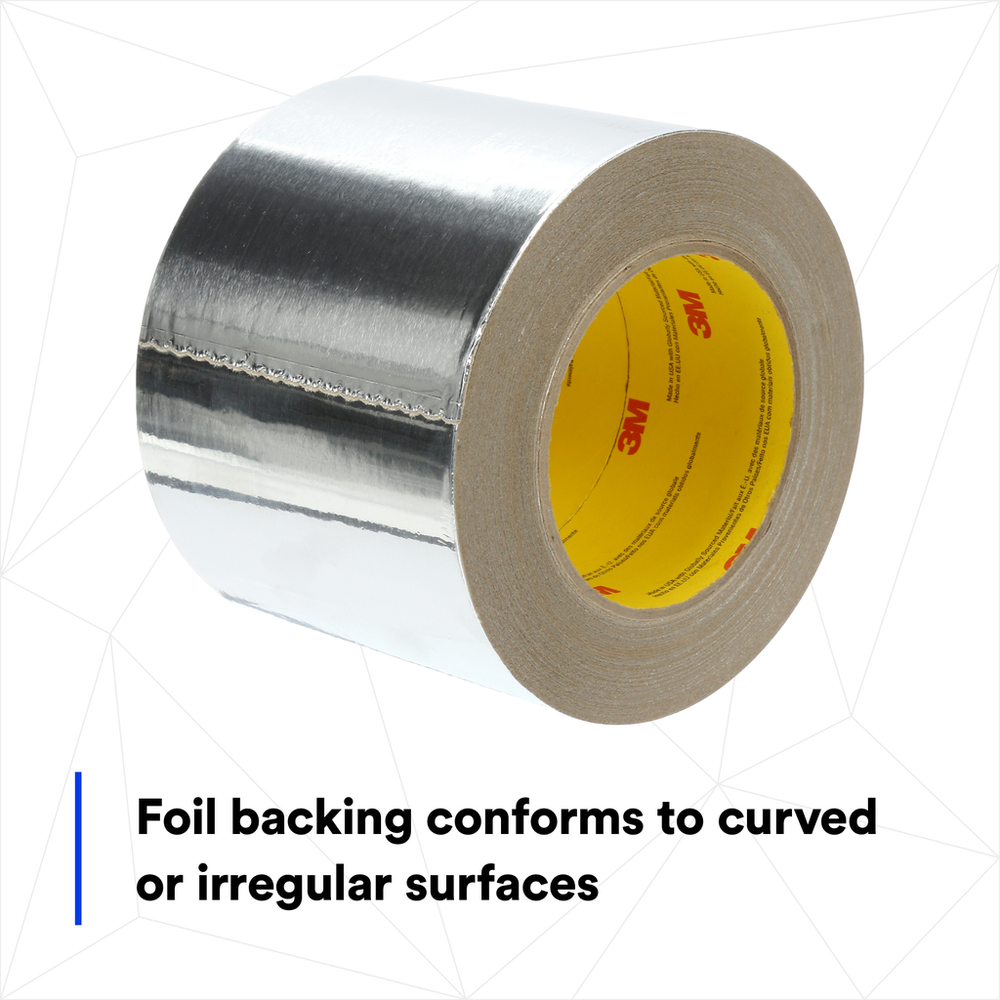

  • Flexible foil conforms well to curved or irregular surfaces
  • Cold weather acrylic adhesive is specifically designed for adhesion in temps as low as -10°F/23°C
  • Features an easy release liner
  • Hand tearable and easy to install on site without special tools or application methods

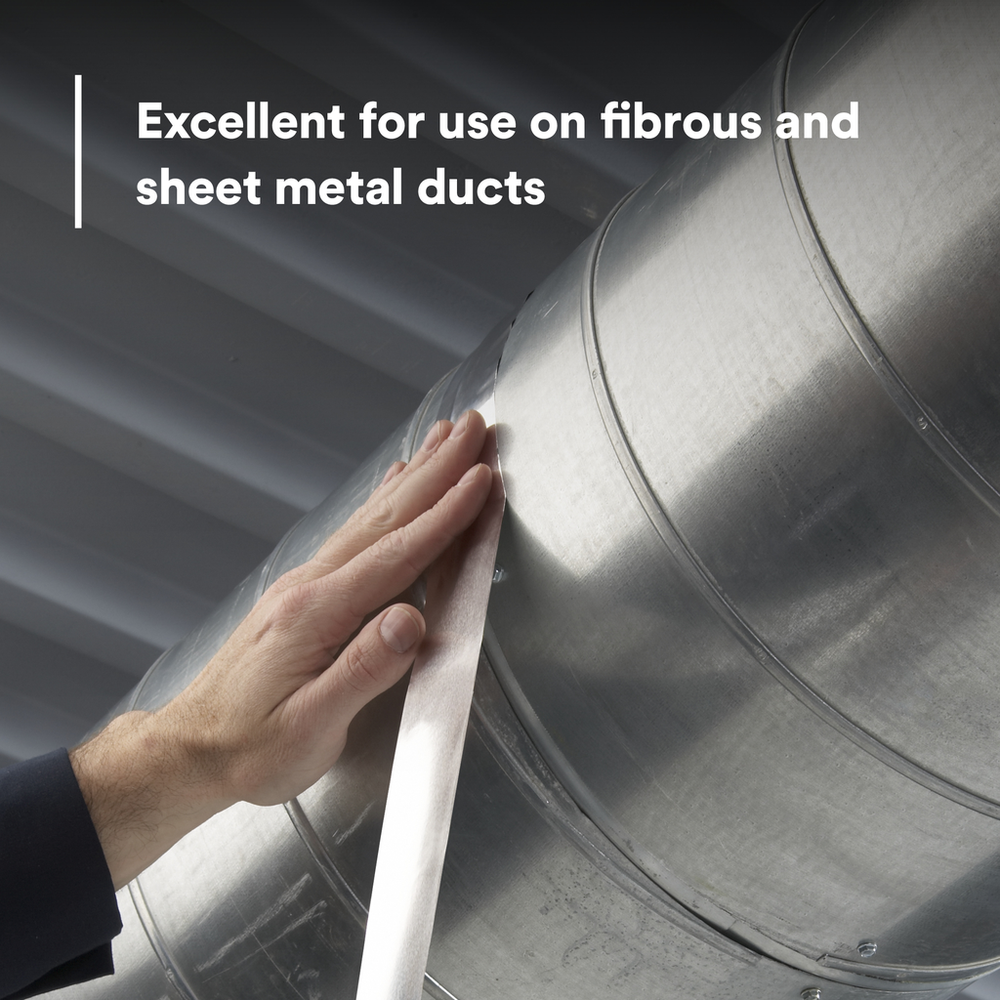

  • Nominal 1.8 mil aluminum foil is excellent for use on fibrous and sheet metal ducts
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Imperial)21.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)1.8
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit)121.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialAluminum Foil
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorSilver
Overall Length (Imperial)50.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)3.89
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.05
Shelf Life UOMMonth
Primary LinerPolycoated Kraft
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)3.3
Maximum Operating Temperature (Celsius)121.0
Total Tape Thickness without Liner (Metric)0.08
Backing MaterialAluminum Foil
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric)99.0
Overall Width (Imperial) UOMin
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Tensile Strength (Metric)36.8
