3M Products & Supplies

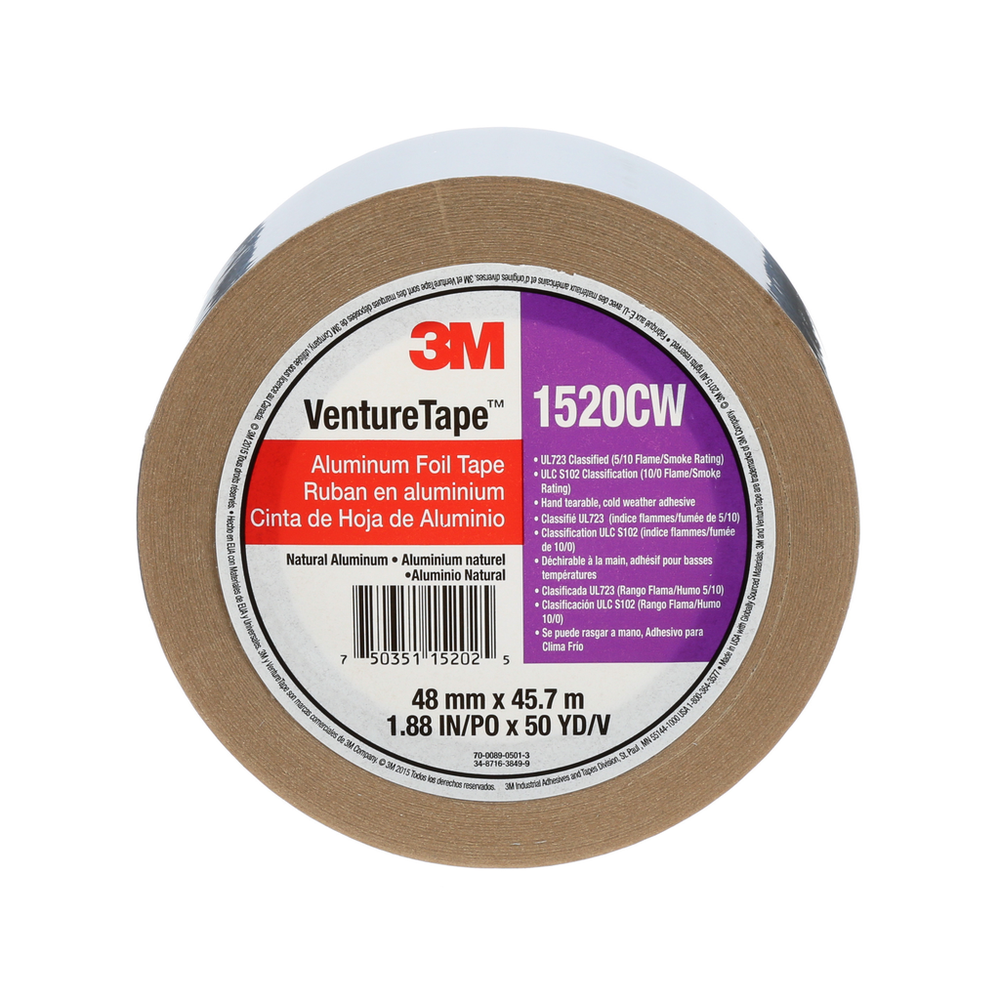

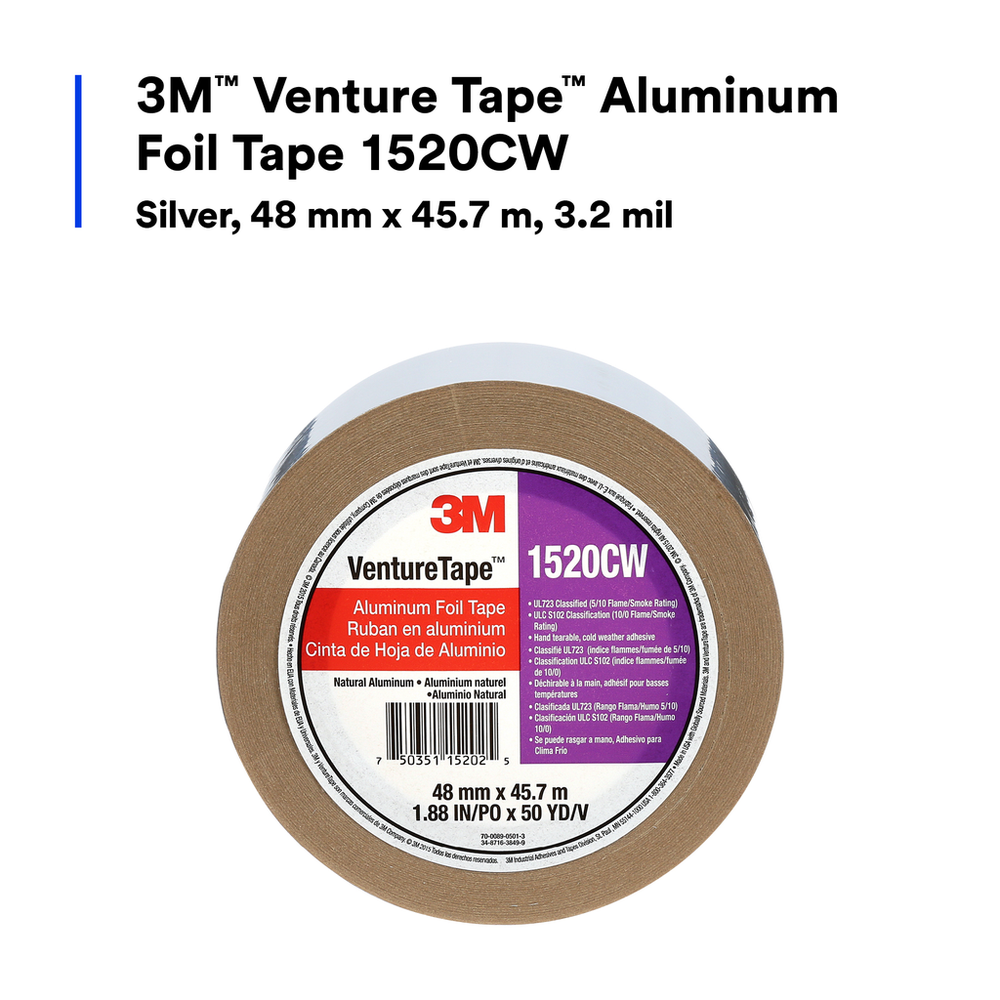

3M™ Venture Tape™ Aluminum Foil Tape 1520CW, Silver, 48 mm x 45.7 m, 3.2 mil, 24 Rolls/Case - 7100043715

Sold As: 24-Pack
SKU: 7100043715
MPN: 7100043715
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00750351152025
3M ID: 70008905013
5 Digit UPC: 15202
$326.77 ($13.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Aluminum Foil Tape 1520CW is a conformable, 3.2 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications. Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and bonds and seals at temperatures as low as -10 °F (-23 °C). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork. This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time. This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating. For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 1520CW provides a durable bond in various masking and sealing operations.

Features

  • Cold weather acrylic adhesive is specifically designed for adhesion in temps as low as -10°F/23°C

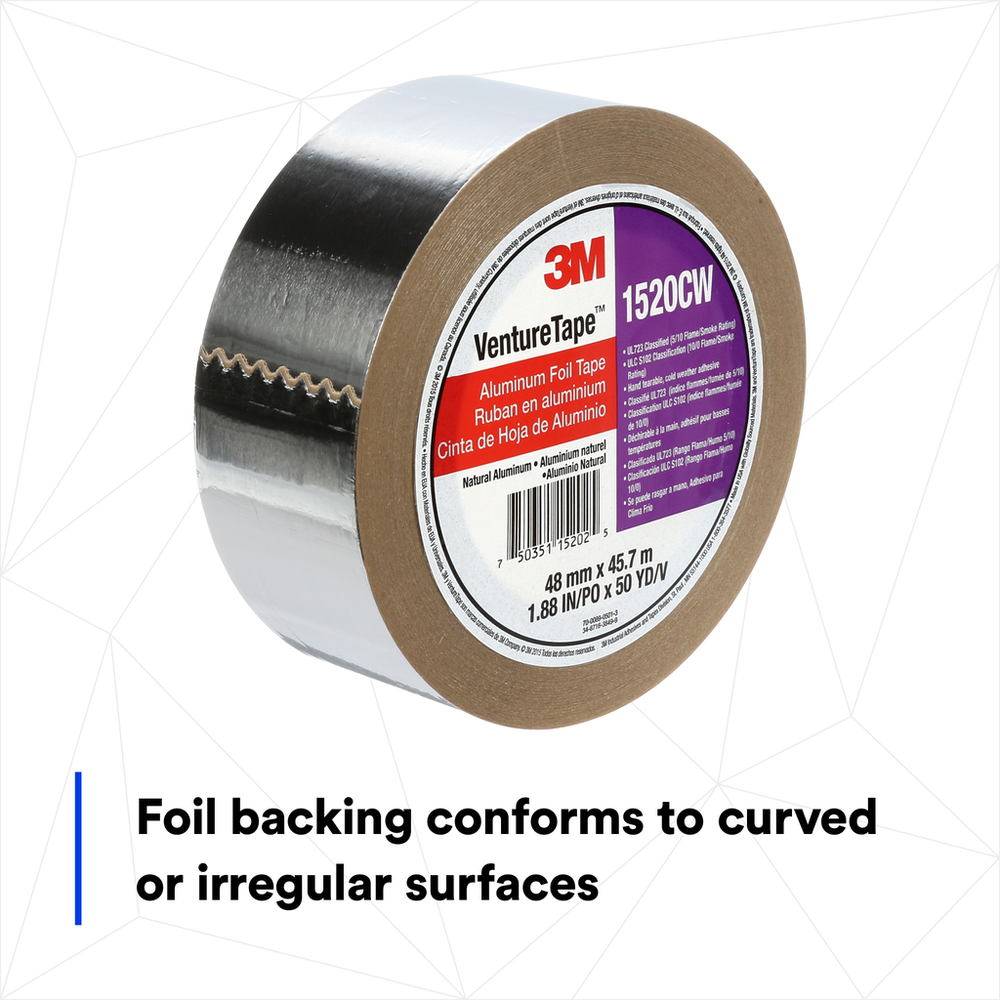

  • Flexible foil conforms well to curved or irregular surfaces
  • Hand tearable and easy to install on site without special tools or application methods
  • Features an easy release liner
  • Multi-purpose foil tape for a variety of applications

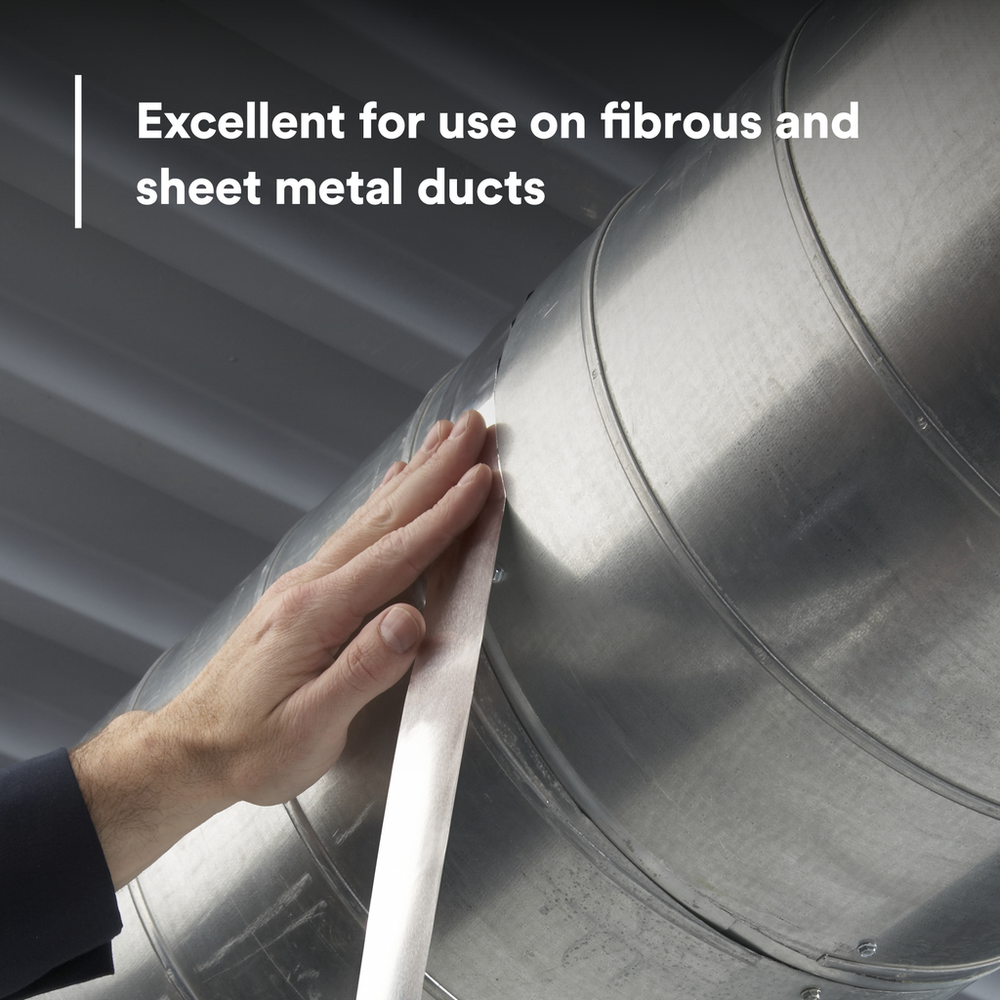

  • Nominal 1.8 mil aluminum foil is excellent for use on fibrous and sheet metal ducts
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) MaterialAluminum Foil
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorSilver
Total Tape Thickness without Liner (Metric)0.08
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)1.8
Overall Width (Imperial)1.88
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial)3.3
Overall Width (Metric)48.0
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMMonth
Maximum Operating Temperature (Celsius)121.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric) UOMmm
Primary LinerPolycoated Kraft
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Backing MaterialAluminum Foil
Overall Length (Metric)45.7
Tensile Strength (Imperial)21.0
Tensile Strength (Metric)36.8
Overall Length (Metric) UOMm
Overall Length (Imperial)50.0
Maximum Operating Temperature (Fahrenheit)121.0
Backing (Carrier) Thickness (Metric)0.05
