3M Products & Supplies

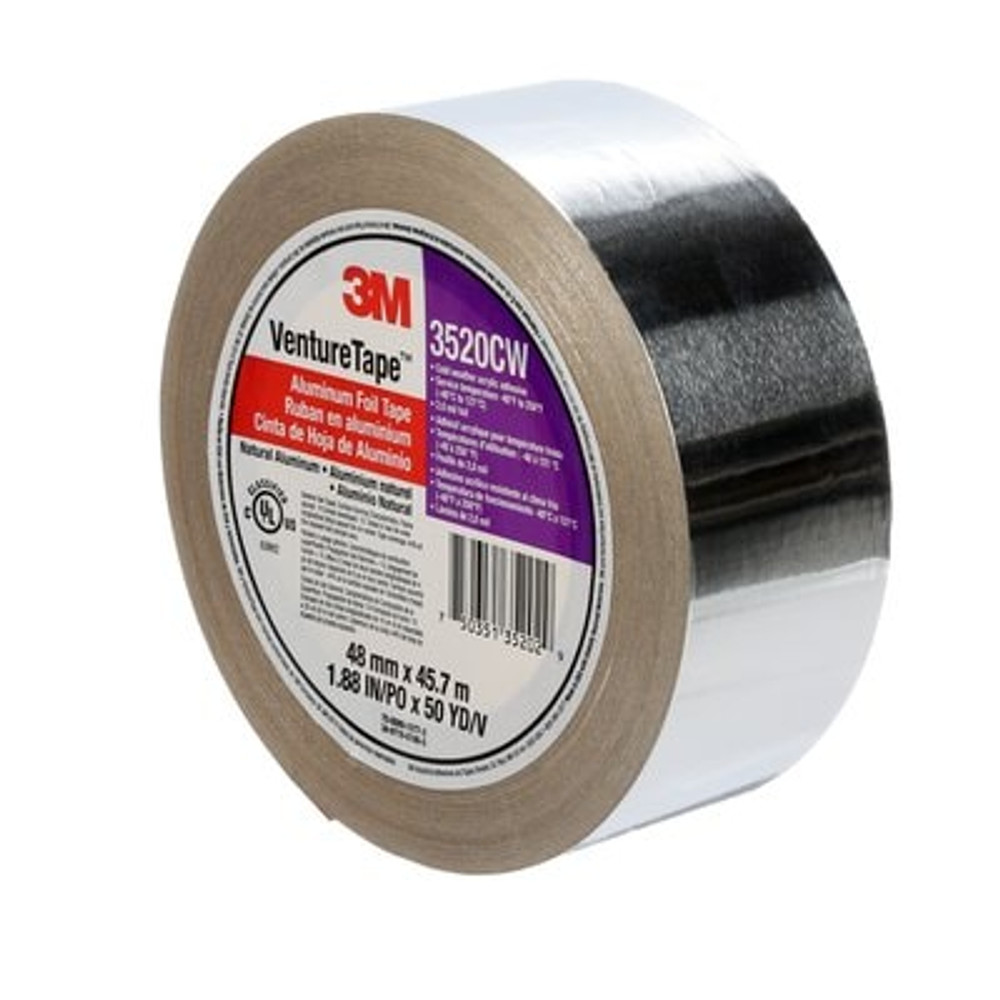

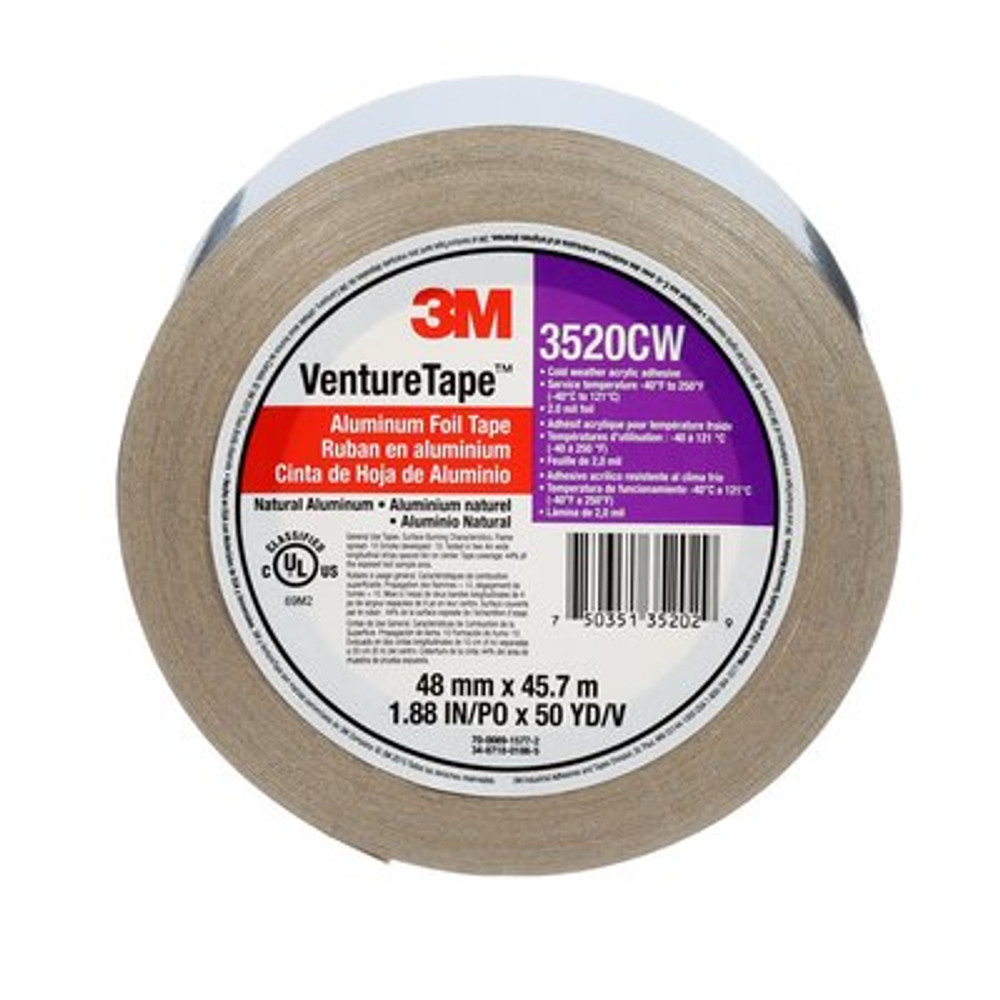

3M™ Venture Tape™ Aluminum Foil Tape 3520CW, Silver, 48 mm x 45.7 m, 3.7 mil, 24 Rolls/Case - 7100043755

Sold As: 24-Pack
SKU: 7100043755
MPN: 7100043755
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00750351352029
3M ID: 70008915772
5 Digit UPC: 35202
$408.76 ($17.03 / Count)
Hurry up! Current stock:

Product Description

3M™ Venture Tape™ Aluminum Foil Tape 3520CW is a conformable, 3.7 mil tape that is suitable for masking and sealing in general-purpose heat shielding and light-reflecting applications. Coated with cold-weather acrylic adhesive, this durable tape performs well in a wide range of environmental conditions, and offers reliable performance in temperatures ranging from -40 to 250 °F (-40 to 121 °). It is backed by foil that allows it to easily conform to irregular surfaces and on fibrous and sheet metal ductwork. This pressure-sensitive tape is hand tearable and adheres quickly without special application methods or additional tools. It maintains its form without lifting or curling, even after an extended period of time. This tape meets the UL723 flame/smoke rating, as well as the CAN/ULC S102 classification flame/smoke rating. For optimal performance in cold environments, 3M™ Venture Tape™ Aluminum Foil Tape 3520CW provides a durable bond in various masking and sealing operations.

Features

  • Excellent for high heat and humidity conditions
  • Features easy release kraft liner

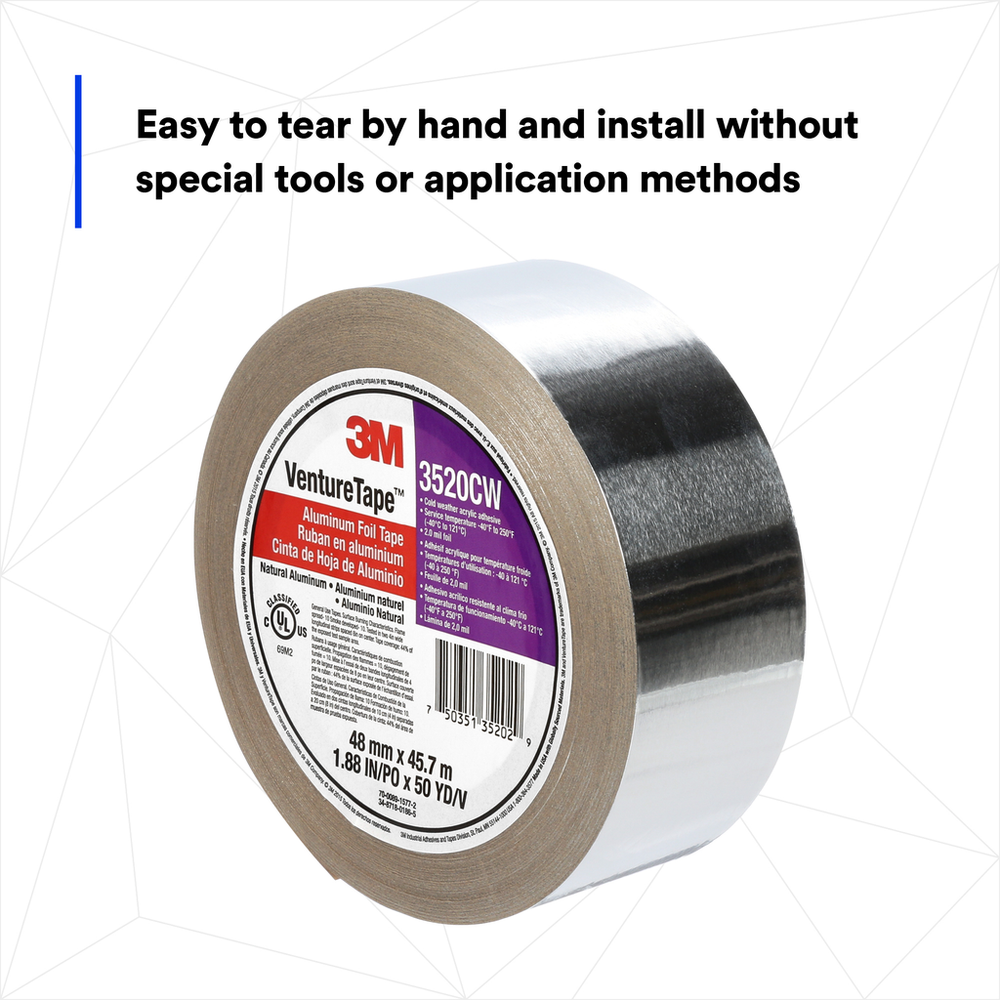

  • Hand tearable and easy to install on site without special tools or applications methods
  • Flexible backing conforms well to curved and irregular surfaces
  • 2.0 mil aluminum foil tape is ideal for HVAC applications
  • Acrylic adhesive is specifically designed to perform in temperatures from -40°F to 250°F
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial)50.0
Tensile Strength (Metric)40.3
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/100mm
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.09
Tensile Strength (Imperial)23.0
Backing MaterialAluminum Foil
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
IndustriesConstruction, Electronics, General Industrial
Overall Length (Metric)45.7
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Imperial)1.88
Overall Width (Metric)48.0
Backing (Carrier) MaterialAluminum Foil
Backing (Carrier) Thickness (Metric)0.05
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.5
Overall Width (Imperial) UOMin
Product ColorSilver
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
