3M Products & Supplies

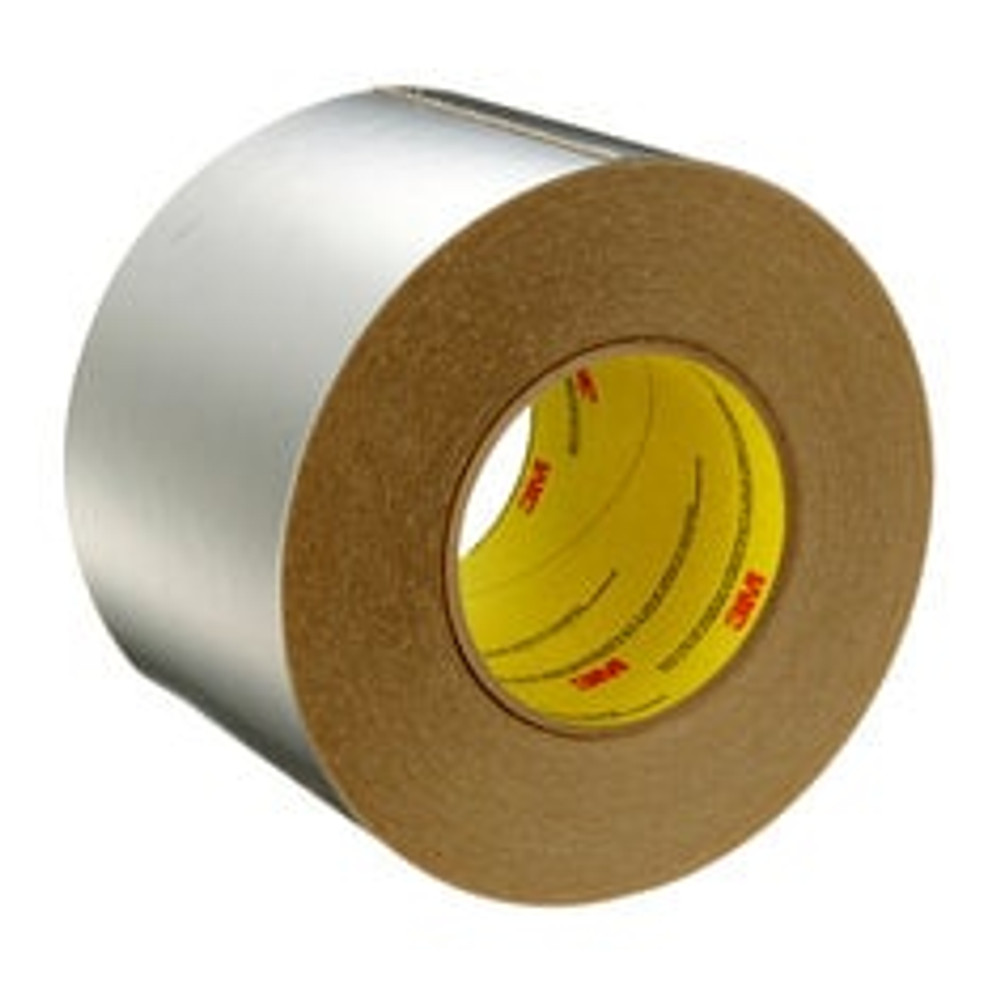

3M™ Ventureclad™ Enhanced Metal Jacketing 1577, CW-EMJ, 4 in X 50 yd, 4 Rolls/Case - 7100308288

Sold As: 4-Pack
SKU: 7100308288
MPN: 7100308288
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060005250
3M ID: 70011144220
$474.50 ($118.63 / Count)
Hurry up! Current stock:

Product Description

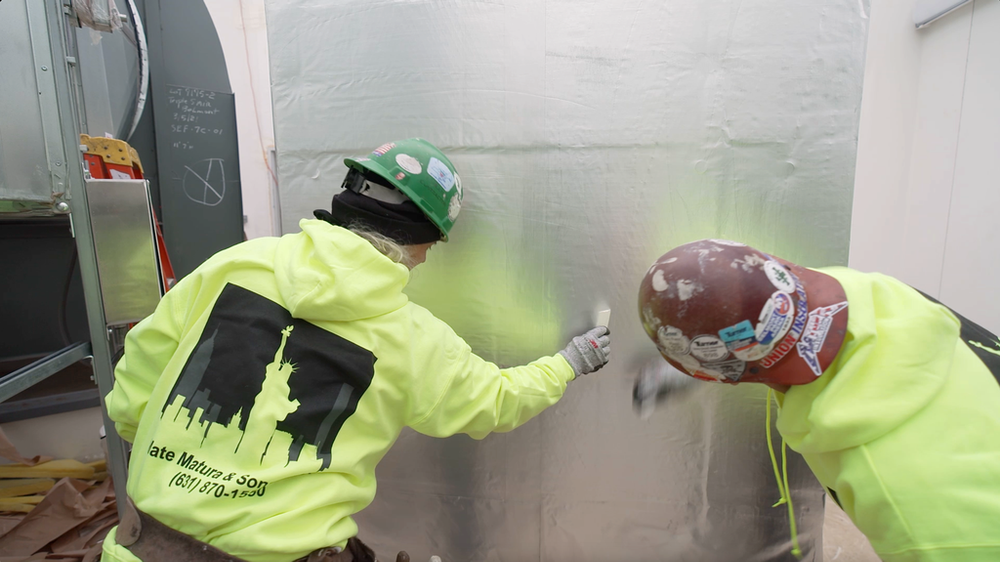

3M™ VentureClad™ Enhanced Metal Jacketing 1577CW-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver smooth.

Features

  • Highly resistant to punctures and tears.
  • Available in a smooth finish with a wide range of widths and lengths
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Quick and simple install with no specialized tools.
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)120.0
Overall Length (Metric)45.72
Tensile Strength (Metric)27.0
Total Tape Thickness without Liner (Imperial)7.0
Back Side Adhesive Thickness (Metric)0.0
Overall Width (Imperial)4.0
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Overall Length (Imperial)50.0
Minimum Operating Temperature (Celsius)-40.0
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)100.0
Adhesive TypeAcrylic
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.177
Overall Width (Metric)101.6
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric)0.13
Maximum Operating Temperature (Fahrenheit)248.0
Country of OriginUnited States
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Back Side Adhesive Thickness (Imperial)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Backing (Carrier) Thickness (Imperial)5.0
Primary LinerPolycoated Natural Kraft Paper
Backing (Carrier) Thickness (Metric) UOMmm
Backing MaterialMulti-layered Laminate
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMN/25mm
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
