3M Products & Supplies

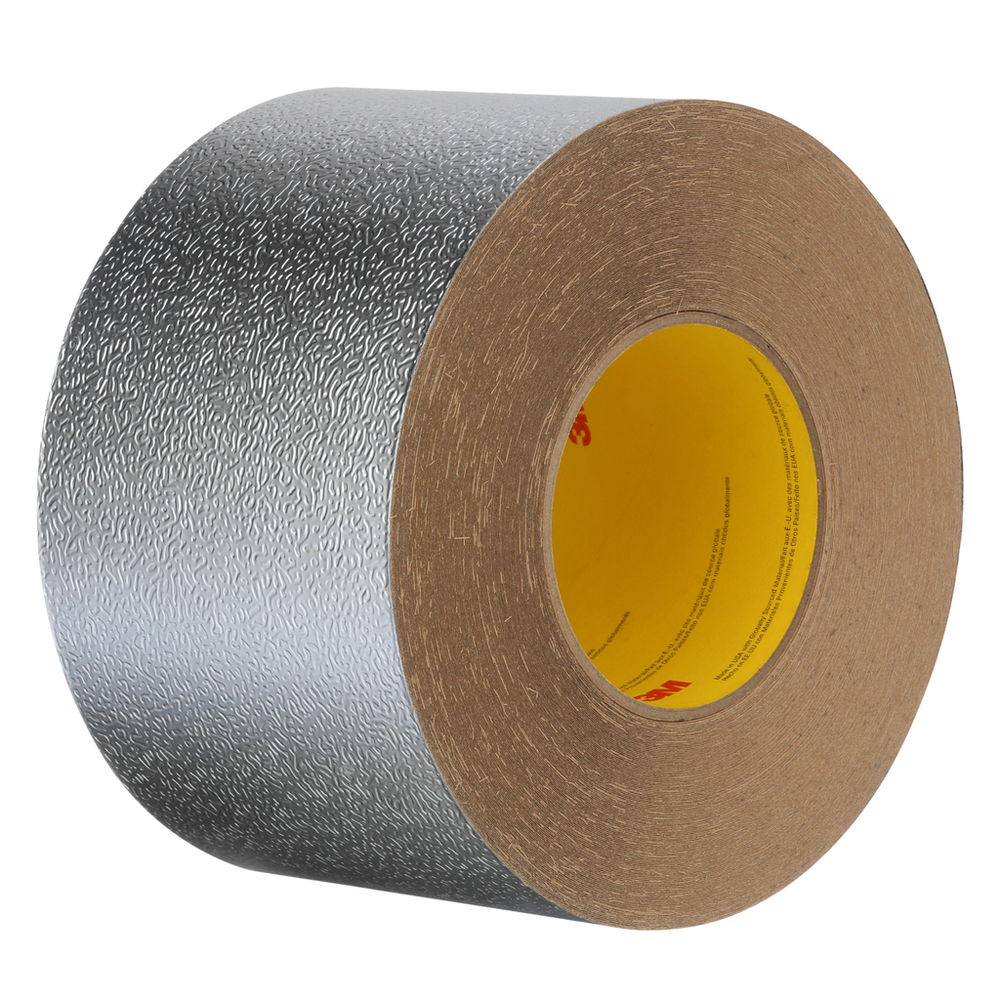

3M™ Ventureclad™ Enhanced Metal Jacketing 1577, CWE-EMJ, 4 in X 50 yd, 4 Rolls/Case - 7100311481

Sold As: 4-Pack
SKU: 7100311481
MPN: 7100311481
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00068060005267
3M ID: 70011144246
$548.58 ($137.15 / Count)
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1577CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Available in an embossed finish with a wide range of widths and lengths
  • Quick and simple install with no specialized tools.
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Highly resistant to punctures and tears.
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
Spec Sheet



Downloads

Specifications

Shelf Life730
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.15
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Metric)27.0
Overall Length (Imperial) UOMyd
Overall Width (Metric) UOMmm
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit)248.0
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric)0.2286
Adhesive TypeAcrylic
Back Side Adhesive Thickness (Imperial)0.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)50.0
Tensile Strength (Metric) UOMN/25mm
Backing MaterialMulti-layered Laminate
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Imperial)100.0
Maximum Operating Temperature (Celsius)120.0
Overall Width (Imperial)4.0
Primary LinerPolycoated Natural Kraft Paper
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Product ColorSilver
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)101.6
Total Tape Thickness without Liner (Imperial)9.0
Back Side Adhesive Thickness (Metric)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)45.72
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)6.0
Overall Width (Imperial) UOMin
