3M Products & Supplies

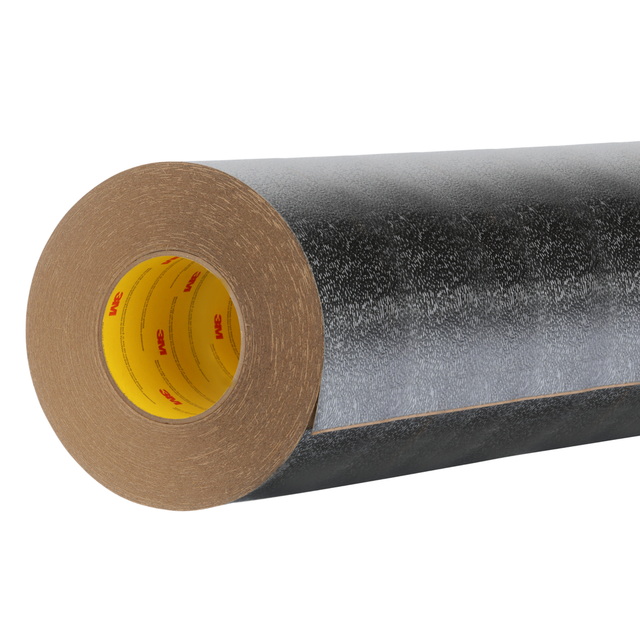

3M™ Ventureclad™ Enhanced Metal Jacketing 1577, CWE-EMJ, 6 in X 50 yd, 4 Rolls/Case - 7100311482

Sold As: 144-Pack
SKU: 7100311482
MPN: 7100311482
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005274
3M ID: 70011144253
$29,622.61 ($205.71 / Count)
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1577CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Highly resistant to punctures and tears.
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Quick and simple install with no specialized tools.
  • Available in an embossed finish with a wide range of widths and lengths
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
Spec Sheet



Downloads

Specifications

Shelf Life730
Overall Width (Metric) UOMmm
Country of OriginUnited States
Overall Length (Metric) UOMm
Overall Width (Metric)152.4
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Adhesive TypeAcrylic
Overall Width (Imperial)6.0
Overall Length (Imperial)50.0
Shelf Life UOMMonth
Overall Width (Imperial) UOMin
Primary LinerPolycoated Natural Kraft Paper
Overall Length (Metric)45.72
Overall Length (Imperial) UOMyd
Product ColorSilver
Backing MaterialMulti-layered Laminate
Maximum Operating Temperature (Fahrenheit)248.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Metric)27.0
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Imperial)100.0
Tensile Strength (Metric) UOMN/25mm
Total Tape Thickness without Liner (Imperial)9.0
Backing (Carrier) Thickness (Imperial)6.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Back Side Adhesive Thickness (Metric)0.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)0.0
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Metric)0.15
Maximum Operating Temperature (Celsius)120.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.2286
