3M Products & Supplies

3M™ Ventureclad™ Enhanced Metal Jacketing 1577, CWE-EMJ, 23 in X 50 yd, 1 Roll/Case - 7100311419

SKU: 7100311419
MPN: 7100311419
For an accurate lead time please contact us
UPC: 00068060005311
3M ID: 70011144295
$743.49 each
Hurry up! Current stock:

Product Description

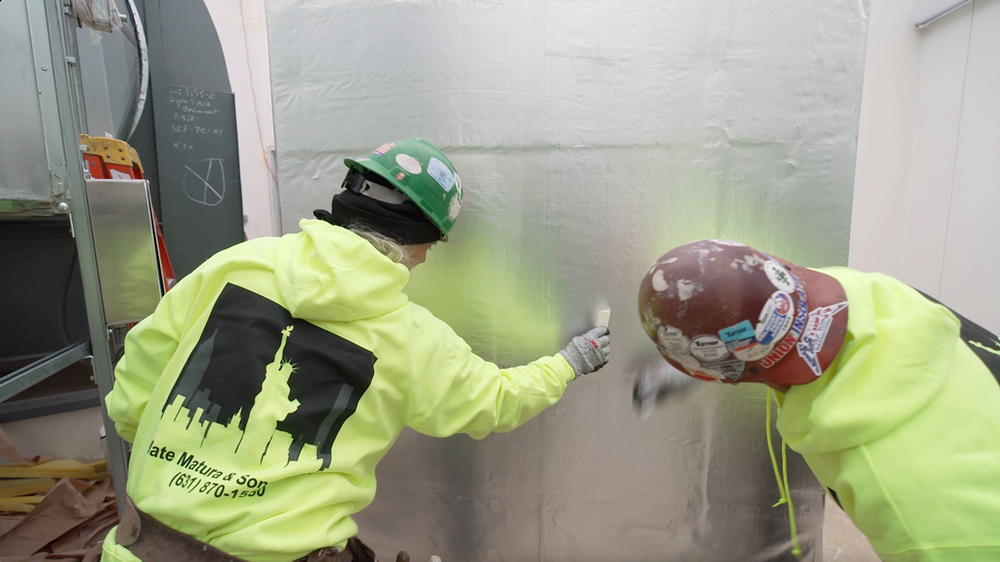

3M™ VentureClad™ Enhanced Metal Jacketing 1577CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Highly resistant to punctures and tears.
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Available in an embossed finish with a wide range of widths and lengths
  • Quick and simple install with no specialized tools.
Spec Sheet



Downloads

Specifications

Shelf Life730
Shelf Life UOMMonth
Overall Width (Imperial)23.0
Overall Length (Metric)45.72
Overall Length (Imperial)50.0
Primary LinerPolycoated Natural Kraft Paper
Overall Length (Imperial) UOMyd
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Width (Metric)584.2
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Product ColorSilver
Adhesive TypeAcrylic
Backing MaterialMulti-layered Laminate
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Tensile Strength (Metric)27.0
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)9.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)248.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Back Side Adhesive Thickness (Metric)0.0
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Imperial)100.0
Backing (Carrier) Thickness (Metric)0.15
Tensile Strength (Metric) UOMN/25mm
Back Side Adhesive Thickness (Imperial)0.0
Maximum Operating Temperature (Celsius)120.0
Backing (Carrier) Thickness (Imperial)6.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.2286
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
