3M Products & Supplies

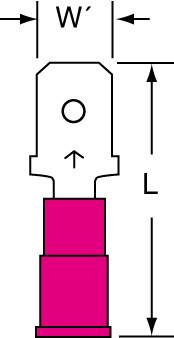

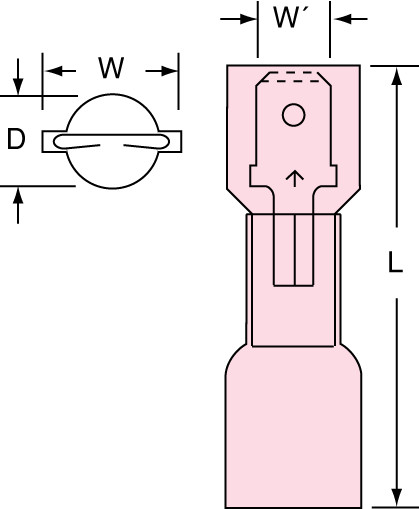

3M™ Vinyl Insulated Butted Seam Male Disconnect, 71M-250-32-P, Max. Temp. -40 to 221 °F (-40 to 105 °C) - 7100163893

Sold As: 1000-Pack
SKU: 7100163893
MPN: 7100163893
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007301158
3M ID: 80601399464
MPN: 71M-250-32-P
$129.66 ($0.13 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Vinyl Insulated Butted Seam Male Disconnect offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Allows for quick and easy disconnect of wires
  • Vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve allows for easy insertion of wires
  • This male disconnect terminal offers excellent holding force

Downloads

Specifications

Maximum Conductor Size (Imperial)18 AWG
Country of OriginUnited States
Connection Width (Imperial)0.25
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric).34 mm²
Minimum Conductor Size (Imperial)22 AWG
Maximum Conductor Size (Metric)1 mm²
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Terminal TypeDisconnect
Connection Width (Metric)6.35
Disconnect TypeMale
Connection Width (Imperial) UOMin
