3M Products & Supplies

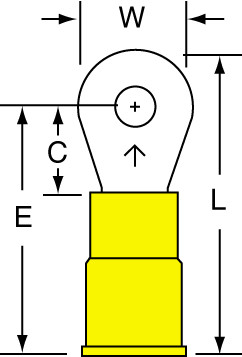

3M™ Vinyl Insulated Butted Seam Ring Tongue Terminal 13-6S-P, standard-style ring tongue fits around the stud - 7100163661

Sold As: 1000-Pack
SKU: 7100163661
MPN: 7100163661
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007287063
3M ID: 80601384219
MPN: 13-6S-P
$159.60 ($0.16 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Ring TypeStandard
Maximum Conductor Size (Metric)5.26
UL File NumberE23438
Country of OriginUnited States
Insulation MaterialVinyl
Maximum Operating Temperature (Celsius)175.0
Terminal StyleStandard
Minimum Stud Diameter (Imperial) UOMin
Minimum Stud Diameter (Metric) UOMmm
Terminal TypeRing
Barrel StyleBrazed
Connection TypeCrimp
Minimum Stud Diameter (Metric)3.5
Minimum Conductor Size (Imperial)12 AWG
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Conductor Size (Imperial)10 AWG
Minimum Conductor Size (Metric)3.31 mm²
