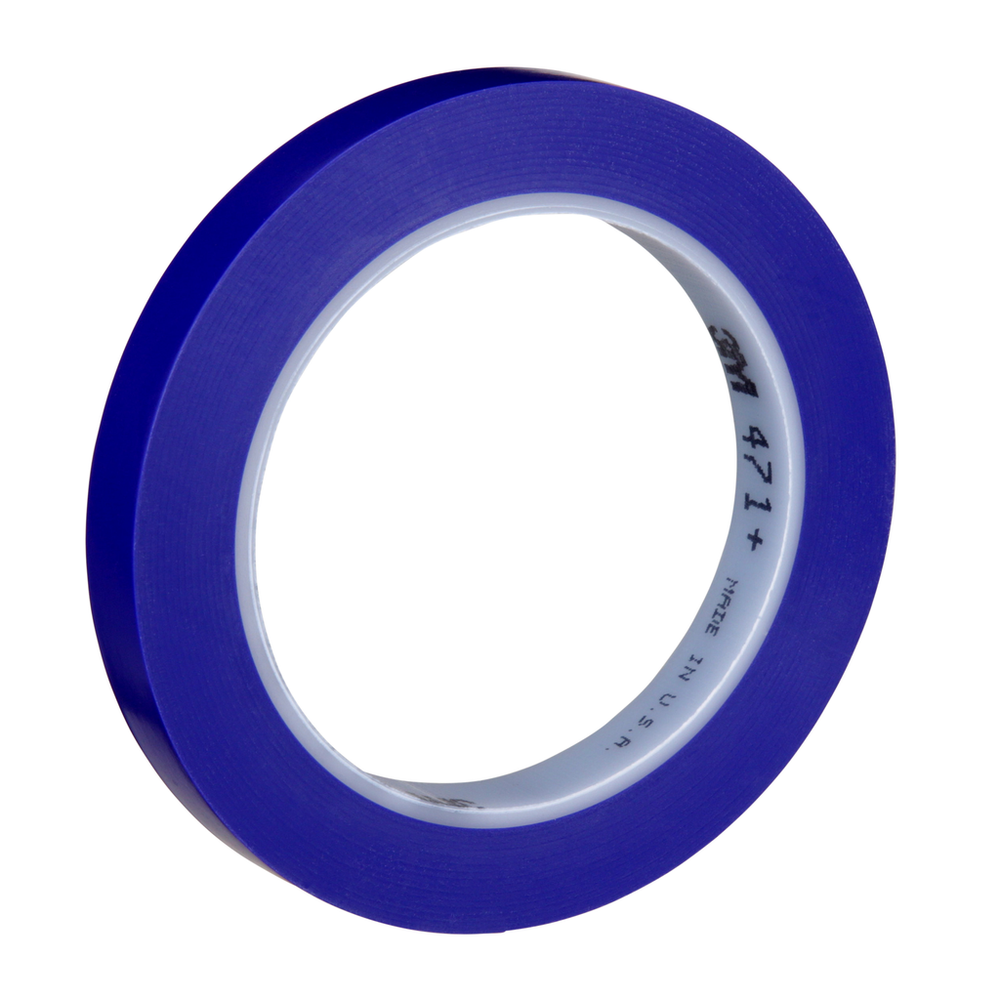

3M™ Vinyl Tape 471+, Indigo, 1/2 in x 36 yd, 5.3 mil, 72 Roll/Case, Individually Wrapped Conveniently Packaged - 7100056217

Sold As: 12-Pack
SKU: 7100056217
MPN: 7100056217
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051131064089
3M ID: 70006767928
5 Digit UPC: 6408
$152.11 ($12.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Vinyl Tape 471+ is a conformable vinyl tape with a versatile rubber adhesive and a moderately translucent backing that allows for accurate masking alignment with simple or complex patterns. This vinyl tape provides clean removal without adhesive residue, even after a 30-minute bake cycle at 250°F (121°C). 3M™ Vinyl Tape 471+ brings performance and productivity for fine line masking in many critical painting applications. Sharp, clean paint lines for color separation are possible because it resists lifting and its versatile rubber adhesive bonds to a wide variety of surfaces, including resins, then lifts off cleanly from flat or compound surfaces. The tape conforms well to curves and is designed to stretch and hold, even with a radius as tight as 1.5-inches. It follows irregular designs to deliver sharp lines. Its moderate translucence allows for alignment where complex patterns are outlined. Flexible vinyl backing is also abrasion-resistant and will protect adjacent surfaces in most sanding operations. When finished, its one-piece removal preserves the sharp paint lines it helped create.

Features

  • Semi-translucent indigo backing provides some visual see-through for accurate alignment of tape
  • Unique stretch properties enable tape to remain stretched to conform to uneven surfaces without lifting, thus avoiding paint bleed
  • Excels in masking applications to create sharp, fine paint lines for striping, color separation and complex designs
  • Clean removal without ghosting, even after 30 minute bake cycle at temperatures up to 250°F/121°C
  • Rubber adhesive provides quick stick with excellent holding strength on most surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.135
ApplicationAutomotive Masking; Masking for Painting; Medium Temperature Paint Bake; On-line Paint Repair Masking; Paint Application; Paint Baking; Paint Masking; Paint Preparation Masking
Back Side Adhesive Thickness (Metric)0.03
Backing Thickness (Imperial)4.1
Shelf Life UOMMonth
Overall Thickness (Imperial)5.3
Adhesion Strength (Metric)38.3
Elongation at Break1.3%
Overall Width (Imperial)0.5
Total Tape Thickness without Liner (Imperial)5.3
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/cm
Overall Width (Metric)12.7
Overall Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Tensile Strength (Imperial)14.0
Maximum Operating Temperature (Celsius)77.0
Backing Thickness (Imperial) UOMmil
Backing Thickness (Metric)0.1
IndustriesAerospace, Automotive, General Industrial, Specialty Vehicles, Transportation
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialVinyl
Back Side Adhesive Thickness (Imperial)1.2
Adhesion Strength35.0
Backing MaterialVinyl
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Overall Height (Metric)0.1
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)24.5
Overall Height (Imperial)5.3
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Shelf Life in Months (From Date of Manufacture)18.0
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
Product ColorIndigo
Shelf Life in Months (From Date of Manufacture) UOMMonths
Adhesion Strength (Metric) UOMN/100mm
Overall Height (Metric) UOMmm
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)170.0
Overall Thickness (Metric)0.13
Overall Thickness (Metric) UOMmm
Overall Height (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Overall Length (Metric)32.9
Adhesive TypeRubber
Minimum Operating Temperature (Celsius)4.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Product FormRoll
