3M Products & Supplies

3M™ Wraparound Heat Shrink Cable Repair Sleeve HDCW-110/30-500, Length 19.7 in (500 mm), 5/case - 7100031028

Sold As: 5-Pack
SKU: 7100031028
MPN: 7100031028
Stock Item: Stock items typically ship within 2-3 business days
UPC: 04001895590719
3M ID: DE999965671
5 Digit UPC: 59071
$517.53 ($103.51 / Count)
Hurry up! Current stock:

Product Description

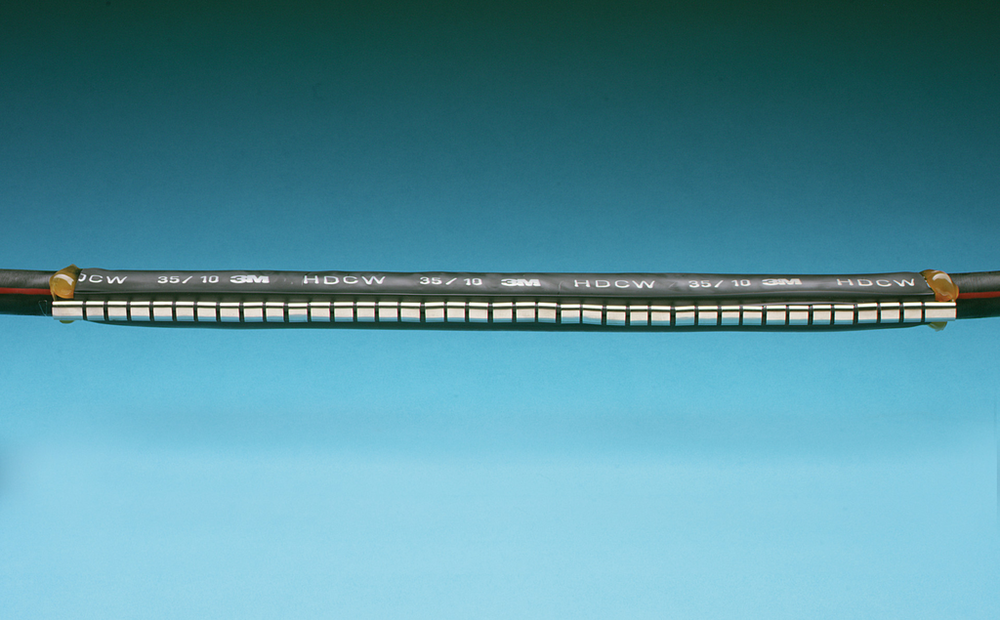

3M™ Heat Shrink Cable Repair Sleeve HDCW is designed to repair quickly damaged cable jacketing. This wraparound sleeve can be used as insulation material on cable and splices up to 1000V and as jacket repair material on cable up to 35 kV. The cross linked polyolefin construction has an adhesive that offers moisture seal protection.

Features

  • Made of adhesive-lined, cross-linked polyolefin
  • ANSI Certified and RoHS 2011/65/EU Compliant
  • Thick-walled sheet is tough and reliable
  • Rated for 35 kV applications
  • Offers excellent corrosion protection on undamaged cables
  • Excellent protection against mechanical stress

Downloads

Specifications

Shelf Life3600
Country of OriginGermany
Sleeve Length19.7
MaterialAdhesive-lined, Cross-Linked Polyolefin
Flame RetardantNo
Sleeve Length UOMin
Overall Length (Metric)500.0
Inner Diameter Before Shrink (Metric)132.0
Splice TypeHeat Shrink
Overall Length (Imperial)19.7
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)1.0
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)125.0
Elongation UOM%
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.4.72
UV ResistantYes
Maximum Voltage Rating1 kV to 35 kV
Product TechnologyHeat Shrink
Halogen FreeYes
Inner Diameter After Shrink (Metric)25.0
Cable TypeAny type of cable
Jacket Repair Range1.18 to 4.33 Inch
Heat Shrink TypeHeat Shrink Molded Shapes
Units per Case5.0
Adhesive LinedYes
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Metric) UOMmm
Splice ConfigurationHeat Shrink Cable Repair Wrap Sleeve (HDCW)
Inner Diameter Before Shrink (Imperial)5.2
Product FormSleeve-roll
Minimum Expanded Tubing I. D. UOMin
Voltage1 kV
Product ColorBlack
Chemical ResistantYes
Product TypeSplice
Inner Diameter Before Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
